Steel Structure Sport Stand Prefab Space Frame Structure Building
Project Description:
Steel structure sports grandstands are a prevalent choice in modern stadium construction due to their versatility, strength, and efficiency. These grandstands are meticulously designed and constructed using steel components to provide durable and safe seating areas for spectators in sports venues.

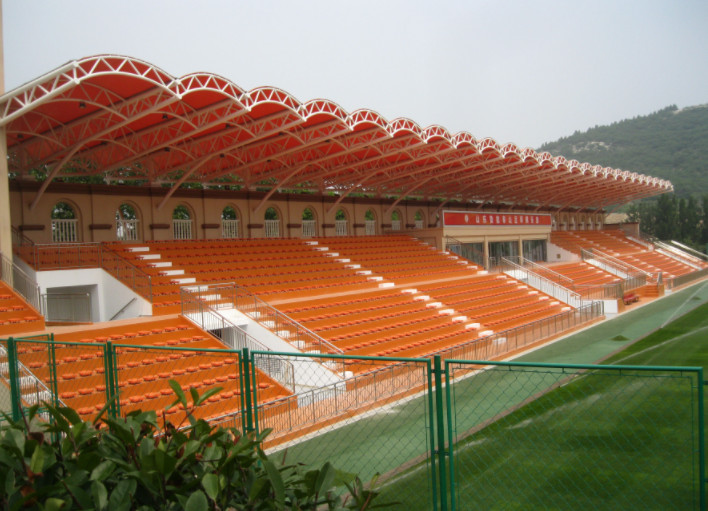

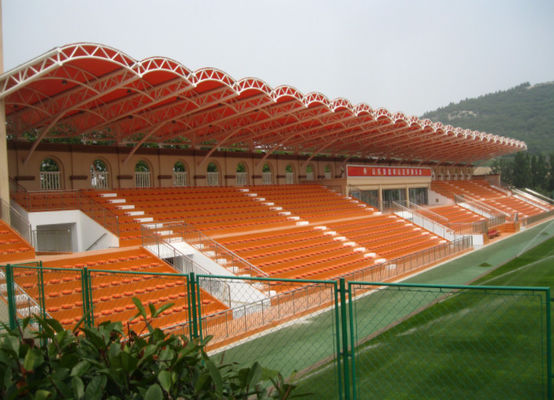

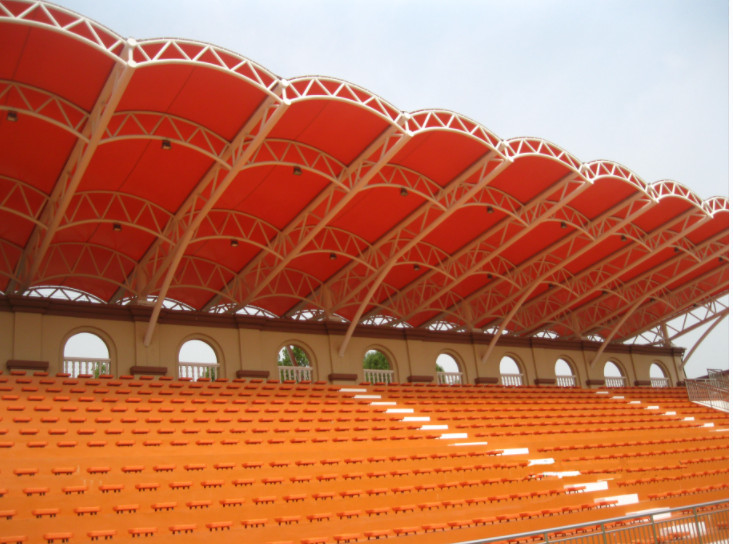

This stadium audience area is the steel truss tensioned membrane structure, with a construction area of 1550 m2, consisted by 25 groups arched beams, large columns which are reinforced concrete structure. The maximum overhang is 15m, selecting the cladding material as Italy NETZSCH type 3 PVDF.

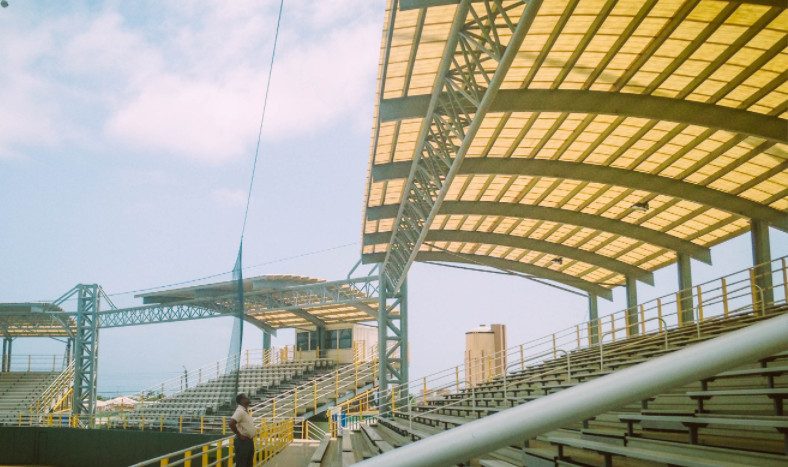

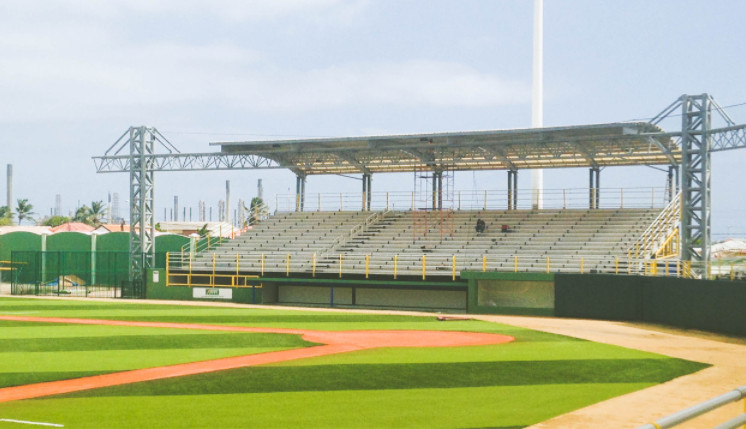

Project Image:
Structure specifications:
1. Span - 15.1m*2= 30.2m
2. Length - 62.4m
3. Eave height - 2.44m
4. Spacing of column - 3.1m
5. H Section Column size - H150*150*5.0mm (welded)
6.H Section Beam size - H100*50*4.0mm H50*50*3.0mm(welded)
7. Gutter - 3mm steel sheet, 160PVC downpipe.
8. Components paint – main structure sprayed 3 times, secondary frame for 2 time.
9. Membrane material – As your request
Production Capacity
Our company can produce more than 30 kinds of series products with different structures and specifications. It has complete processing and manufacturing equipment and strong installation capabilities. It can supply a full set of materials required for steel structure construction projects, and provide all installation services and technical consultation.
We have 2 composite board production lines with an annual output of more than 1 million meters; 5 color steel plate production lines with an annual output of 2 million meters; 2 H-beam CNC production lines with an annual output of 20,000 tons; One C-beam production line with an annual output of 2,500 tons; One Z-beam steel productions line with an annual output of 2,000 tons.
In addition to various section-steel products, it can also manufacture color steel sheets, composite panels, lighting panels, ventilators, etc.
FAQ
1.Are you a manufacture or trading company?
- We are a comprehensive and trade enterprises. We have our own factory. You can get the best price and competitive price. And you are welcome to visit us at any time .
2)What’s the quality assurance you provided and how do you control quality ?
-Established a procedure to check products at all stages of the manufacturing process - raw materials, in process materials, validated or tested materials, finished goods, etc.
3) Do you provide installation on site overseas for steel structure buildings?
- Yes, we usually provide detailed installation drawings and installation methods for free. If you need, we can provide the service of installation, supervision and training by extra. We also can send our professional technical engineer to supervise installation on site overseas.
