Portal Steel Structure Workshop Quake Proof Steel Frame Buildings Q235

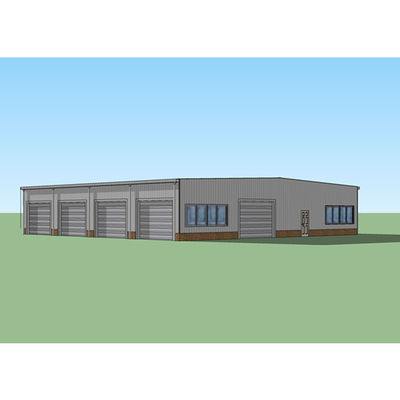

Details of this building
Building Area: 400㎡
Area:20m(length)*20m(width)*4(cornice height)
The building use is a garage and offices. Doors and windows are set up according to customer requirements.

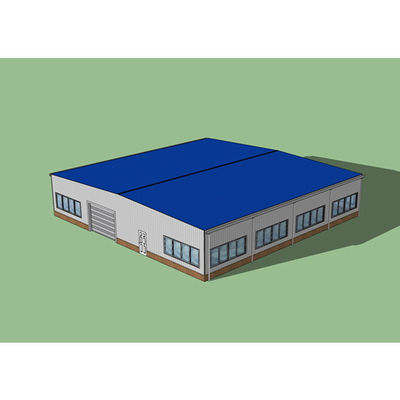

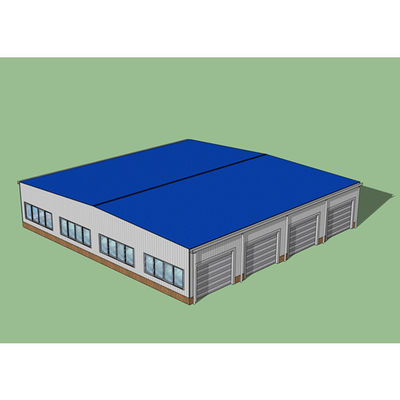

Double slope single ridge
The roof slope is 10%, and the outer gutter + φ110UPVC forms a roof drainage system, which can cope with the rainy season
There is a canopy above each door to play the role of sunshade and rain shelter.
Roof method: 0.5MM color steel sheet + 75mm glass wool + steel wire mesh
Wall method: 0.4mm outer panel
| site condition | Project location | wind load (m/s) | function |
| Tanzania | Automotive Garage | ||
| size | length (M) | width (M) | height (M) |
| 20 | 20 | 4 | |
| crane request | crane tons (T) | lifting height (M) | crane quantity (set) |
| no | no | no | |
| wall request | brick wall height (M) | insulation | gutter |
| 0.5m | No | Yes | |
| roof request | insulation | skylight | ventilation |
| Yes | Yes | Yes | |
| door & window | the quantity and size of door (M) | the size of lower window (M) | the size of upper window (M) |
| electric rolling door 4m*2.8m (width * height), a total of 5,steel-wood door, 0.9m*2m (width * height), a total of 1 | aluminum sliding window, 4m*1.5m | no | |

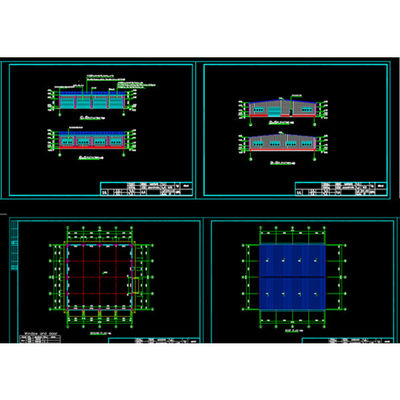

Portal rigid frame structure, the main structure is composed of high-quality processed steel components such as H steel, Round tube, C-shaped steel, angle steel and round steel.
It is composed of multiple processes such as welding, sandblasting, and painting (some steel components are galvanized). The engineer's design calculation and multiple tests ensure that the amount of steel used is optimized and the cost is saved under the condition of safety and durability.
PRODUCTION CAPACITY :
Our company:QINGDAO QIANCHENGXIN CONSTRUCTION TECHNOLOGY CO., LTD
The company has:
|
2 composite board production lines
|
more than 1 million meters/year |
|
5 color steel plate production lines
|
2 million meters/year |
|
2 H-type steel CNC production lines
|
20000 tons/year |
|
1 C-type steel production line
|
2500 tons/year |
|
1 Z-steel production line
|
2,000 tons/year |
Our company
QINGDAO QIANCHENGXIN CONSTRUCTION TECHNOLOGY CO., LTD-The headquarter is located in the beautiful coastal city - Qingdao, China.The city where we are located has Qingdao port with a fully automated terminal, which is convenient for the sea transportation of goods.
Our factory has multiple production lines, equipped with steel cutting, shot blasting, stamping, bending, welding, forming equipment. The technology and equipment are advanced, and the steel structure is of good quality and durable.
Possess the foreign contracted project management qualification certificate issued by the Ministry of Commerce of China, CE certification [EN1090 certificate], IS09001 certificate, etc.
