Industrial Prefab Steel Structure Warehouse Frame Construction Building

800 square meter
MOQ
$35 - $50 per square meter
Price
Industrial Prefab Steel Structure Warehouse Frame Construction Building
Features Gallery Product Description Request A Quote
Features
Specifications
Material: Q355 & Q235
Standard: GB (China Standard)
Specification: 50M*25M*6M
Connection Form: Bolt Connection
Building Area: 1250㎡

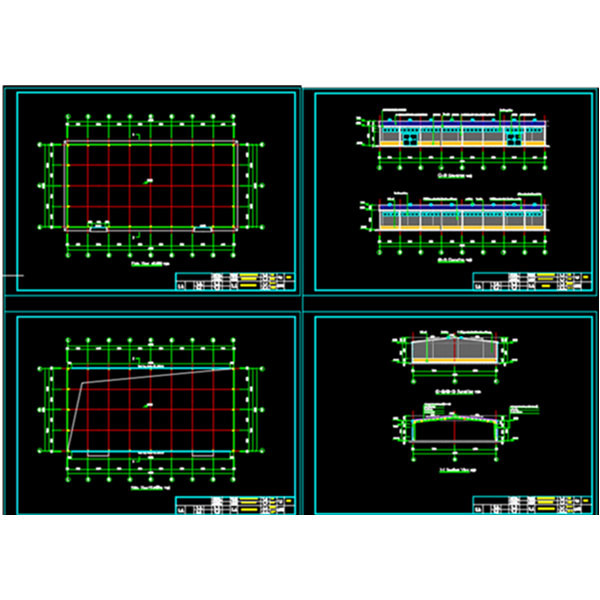

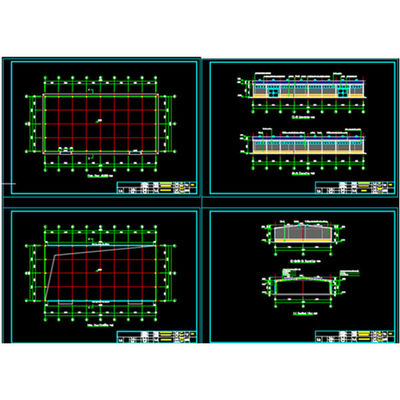

Drawing Design: AutoCAD,3D,PKPM,Sketchup
High Light:

Prefab Steel Structure Warehouse

,

Steel Structure Warehouse Frame

,

Prefab Steel Warehouse

Basic Infomation
Place of Origin: China
Brand Name: QCX
Certification: ISO 9001, CE certificate of quality system
Model Number: Steel Structure Warehouse
Payment & Shipping Terms
Packaging Details: Steel components are packaged with steel pallets
Delivery Time: 25-35 work days
Payment Terms: L/C, T/T
Supply Ability: 2000 tons/month
Product Description

Industrial Prefab Steel Structure Warehouse Frame Construction Building

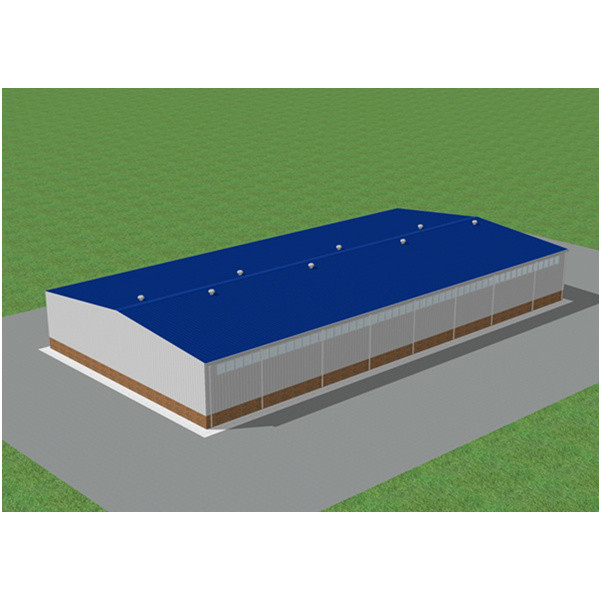

About This Steel Structure Warehouse Building

--Roof design

Double slope single ridge
The roof slope is 10%, and the outer gutter + φ110UPVC forms a roof drainage system, which can cope with the rainy season
Roof method: 0.4MM color steel plate + 50mm glass wool + steel wire mesh

Classic Ventilator Advantages
1. No electricity, 24/7 operation, zero operating costs, saving resources.
2. High sensitivity, no noise, rainproof, sturdy and durable.
3. Parts can be replaced by customers, easy to install and easy to maintain.
4. The appearance is compact and elegant.

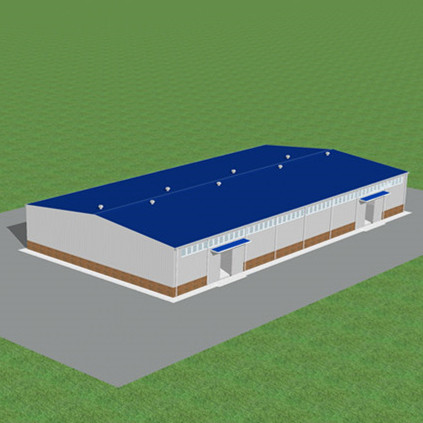

--Wall design



Wall method: 0.4MM color steel plate + 50mm glass wool + steel wire mesh

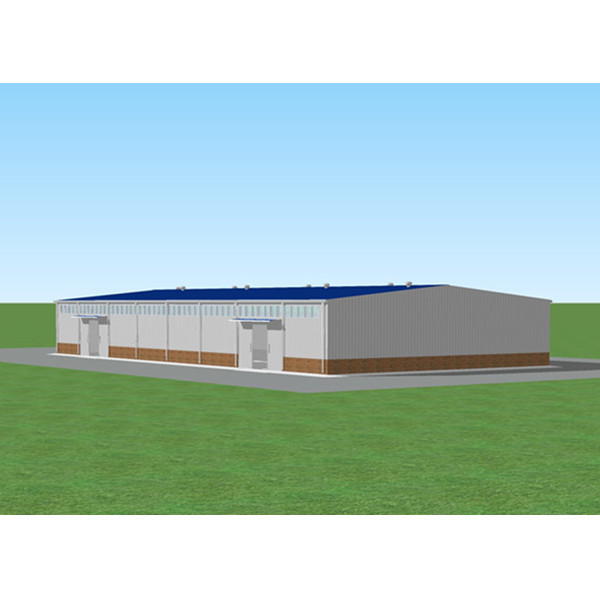

4m*3.6m(2),sliding door with canopy, canopy above each door to play the role of sunshade and rain shelter.

Fixed long window, 48m*1m(2), no lower window, in the case of ensuring ventilation and lighting, the cost is saved.



Industrial Prefab Steel Structure Warehouse Frame Construction Building 0


The Details of This Steel Structure Warehouse




site condition


Project locationwind load (m/s)function



Ethiopia


  Warehouse


size


length (M)width (M)height (M)



50


256


crane request


crane tons (T)lifting height (M)crane quantity (set)



No


NoNo


wall request


brick wall height (M)insulationgutter



1.2m


NoYes


roof request


insulationskylightventilation



Yes



No


Yes


door & window


the quantity and size of door (M)the size of lower window (M)the size of upper window (M)



4m*3.6m(2)


No48m*1m(2)


Industrial Prefab Steel Structure Warehouse Frame Construction Building 1

Industrial Prefab Steel Structure Warehouse Frame Construction Building 2
Advantages of steel construction

Prefab steel Structure workshop buildings are used for industrial production in which all steel structures are painted and then delivered to the project site for installation. And because the steel structure can be manufactured in the factory and installed on-site, the construction time is significantly reduced. Due to the steel it can dramatically reduce construction waste and is more environmentally friendly. Therefore, it widely used in industrial buildings and civil buildings.

Industrial Prefab Steel Structure Warehouse Frame Construction Building 3
Our company

QINGDAO QIANCHENGXIN CONSTRUCTION TECHNOLOGY CO., LTD


With many years of steel structure export experience and steel structure construction experience, it can provide a series of services from design to production to on-site installation to after-sales.



Each steel component will be numbered in detail at the time of delivery, and complete and detailed installation instructions and construction process instructions will be provided. If the customer needs, we can also send overseas construction teams or construction workers to assist in the installation.



Industrial Prefab Steel Structure Warehouse Frame Construction Building 4


Possess the foreign contracted project management qualification certificate issued by the Ministry of Commerce of China, CE certification [EN1090 certificate], IS09001 certificate, etc.

Industrial Prefab Steel Structure Warehouse Frame Construction Building 5


Production Capacity

Our company:QINGDAO QIANCHENGXIN CONSTRUCTION TECHNOLOGY CO., LTD


The company has:




2 composite board production lines



more than 1 million meters/year



5 color steel plate production lines



2 million meters/year



2 H-type steel CNC production lines



20000 tons/year



1 C-type steel production line



2500 tons/year



1 Z-steel production line



2,000 tons/year



Industrial Prefab Steel Structure Warehouse Frame Construction Building 6
