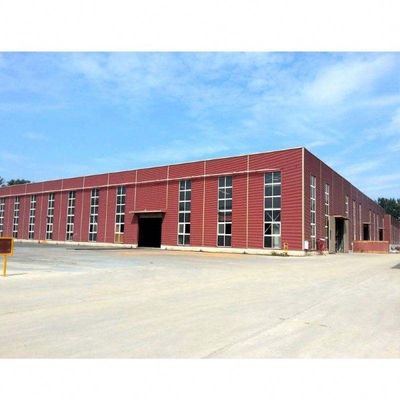

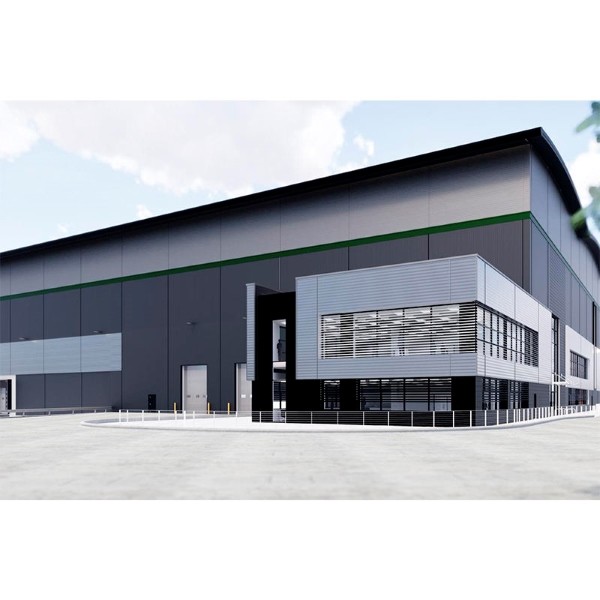

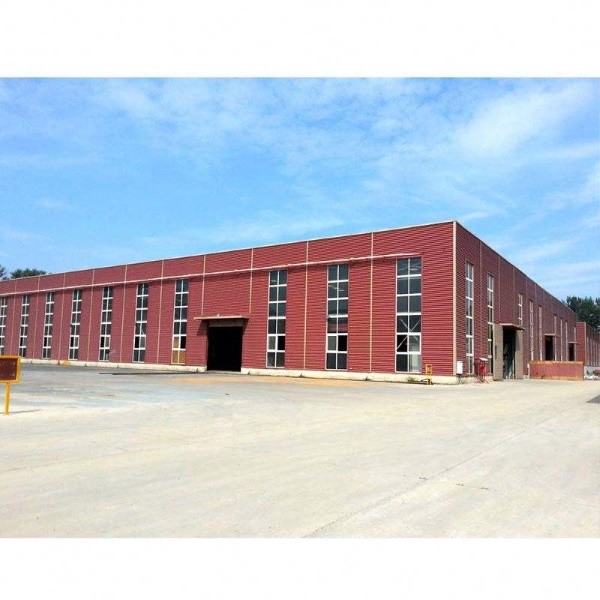

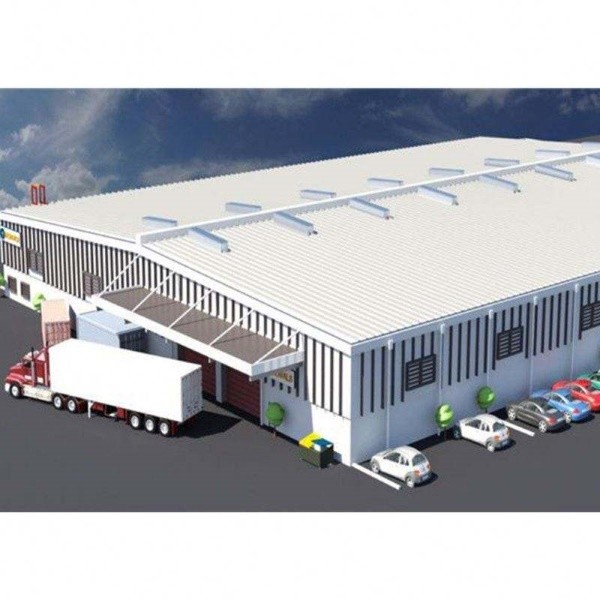

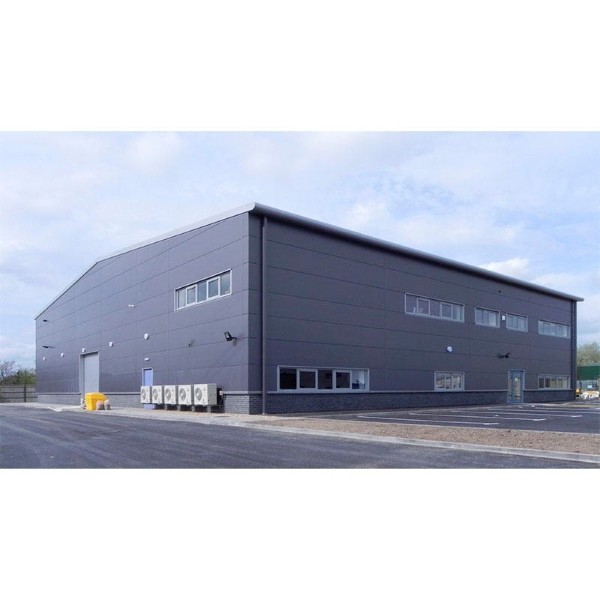

Light Gauge Steel Frame Construction Portal Frame Steel Structure Warehouse
Product Description
1. Steel structure warehouse building is a low-cost building form that helps customers save costs. It has a building with fast installation and high safety.
2. Steel structure warehouse Compared with concrete and wood, the ratio of its density to yield strength is relatively low, so under the same stress conditions, the steel structure has a small cross-section, lightweight, easy transportation, and installation, and is suitable for large spans and high heights. Heavy-duty structure.
3. It is suitable for bearing impact and dynamic load, and has good seismic performance. The internal structure of steel is uniform, close to an isotropic homogeneous body. The actual working performance of the steel structure is more in line with the calculation theory. Therefore, the reliability of the steel structure is high.
4. Steel structural components are easy to manufacture in factories and assemble on site. The factory mechanized manufacturing of steel structural components has high precision, high production efficiency, fast assembly speed on-site, and short construction period. The steel structure warehouse is the most industrialized structure.
Characteristics of steel structure warehouse
1. Steel structure insulated warehouse buildings perform better earthquake resistance than traditional building materials such as brick concrete structures and wood structures. Because it has better flexibility. So, if want to build a high-level building, using a steel structure build is a good idea because it can resist earthquakes.
2. The steel structure warehouse shed construction building has better durability than other material building such as brick and concrete structures. The steel structure housing structure is composed of a cold-formed steel system, which can be galvanized or anti-rust painting. The service life of the main structure can reach more than 50 years.
3. The construction of steel structure warehouse buildings is not affected by seasons. Not like traditional brick and cement structure buildings. Steel structure buildings do not need to mix cement with water, so no need to worry about the low temperature to freeze the water.
Product Specifications
| Dimension | Length x Width x Eave height/ Ridge height |
| Frame type | Portal frame, multi-story frame |
| Main frame | Hot-rolled or Welded H beam and column, Q355B steel |
| Bracing components | Tie bar, staying bar, Horizontal bracing, Column bracing |
| Cladding system | Corrugated color steel sheet, sandwich panel with glass wool, rock wool,PU,EPS insulation |
| Accessory | Ridge tile, trim, Gutter, Down pipe,skylight |
| Door | Sliding door, Roll up door, industrial section door, swing door |
| Window | PVC window, aluminum window, metal louver |
Company profile
Qingdao Qianchengxin Construction Technology Co, Ltd. was established in 2014. lt is a high-tech, diversified and export-oriented large-scale international private enterprise integrating R&D, design, production, installation and construction at home and abroad, and technical services.
Qian Chengxin has the qualification certificate of China's overseas contracted project management issued by the Ministry of Commerce of China, CE certification [EN1090 certificatel), ISO9001 certificate, etc, and has carried out long-term cooperation with countries along the "Belt and Road". The current products and construction services have been exported to more than 50 countries around the world, including Asia, Africa, North and South America. ln addition. branches have been established in Mozambigue and Angola, which can undertake steel structure installation projects in Africa
Production process
Fixed packing, loading, transportation, unloading the matters needing attention
(1) The lifting large there must be a person responsible for the use of fixture, suitable, strictly abide by the rules of lifting, to prevent the occurrence of vibration, impact, deformation or damage, fall in the hoisting process.
(2) At the time of loading, there must be a special supervision, check car number and packing, the car pile up securely, and to increase the necessary binding component loosening, prevent the loss.
(3) Remained stable in the transport process, the vehicle at the time of shipment, on the long, wide, high object transport, must be trained pilots, escort personnel responsible for, and mark is arranged on a vehicle.
(4) No rough handling, loading and unloading personnel handling, weight, size should be familiar with the components, and check the horse sling, rigging, prevent accidents.
(5) The member to the construction site, timely organization of unloading, stacking area.
(6) The crawler crane carrying member, should pay attention to the surrounding terrain, air condition, prevent the crawler crane overturning and component collision.
Get the Free Price
Please kindly inform us of the information below if you are interested in our products.
1. Project Progress: Is Land Purchased? Is it licensed by the government?
2. Usage: for warehouse, workshop, showroom, etc.
3. Location: In which country will it be built?
4. Local Climate: Wind speed, Snow load (max. Wind speed)
5. Design: Please provide the design drawing. Or do you need us to design for you?
6. Dimension: Length*width*height
7. Crane Beam: Do you need crane beam inside the steel structure?
8. Roof and Wall: determine the panel material, such as color steel panel, and metal sandwich panel.
9. Windows and Doors: what material, quantity, and type?
