Steel Structure Workshop Industry Building H Type Column C Type Purlin

5000 ㎡
MOQ
40-60usd/ ㎡
Price
Steel Structure Workshop Industry Building H Type Column C Type Purlin
Features Gallery Product Description Request A Quote
Features
Specifications
Material: Q355B, Aluminum Alloy
Dimension: Customized ≥5000㎡ Other
Type: Light,Heavy,Light Steel
Grade: ,Hot Rolled Steel
Size: According To The Customer
Standard: GB,ASTM,AISI
Product Name: Steel Structure Workshop General Purpos
Application: Airport,Industry Building
Main Structure: H Type Column,C Type Purlin,Z Type Purlin,Welded /hot Rolled H/I Beam
Basic Infomation
Place of Origin: Qingdao,China
Brand Name: QCX
Certification: ISO 9001, CE certificate of quality system
Model Number: Dimension Customized
Payment & Shipping Terms
Packaging Details: PALLETS,CASES
Delivery Time: 30-60DAYS
Payment Terms: T/T
Supply Ability: 2000T/M
Product Description

Steel Structure Workshop General Purpos







Products Description
Specifications: Steel Structure Workshop General Purpos
main steel frame
H section steel beam and columns, painted or galvanized, galvanized C section or steel pipe
Secondary frame
hot dip galvanized C purlin , steel bracing , tie bar , knee brace , edge cover etc.
Roof panel
EPS sandwich panel,glass fiber sandwich panel,rock wool sandwich panel,and PU sandwich panel or steel sheet
Wall panel
Sandwich Panel or Corrugated Steel Sheet
Tie Rod
Circular Steel Tube
Brace
Round Bar
Knee Brace
Angle Steel
Roof Gutter
Color Steel Sheet
Drawings & Quotation:
(1) Customized design is welcomed.
(2) In order to give you an exactly quotation and drawings, please let us know the length, width, eave height and local weather. We will quote for you promptly.

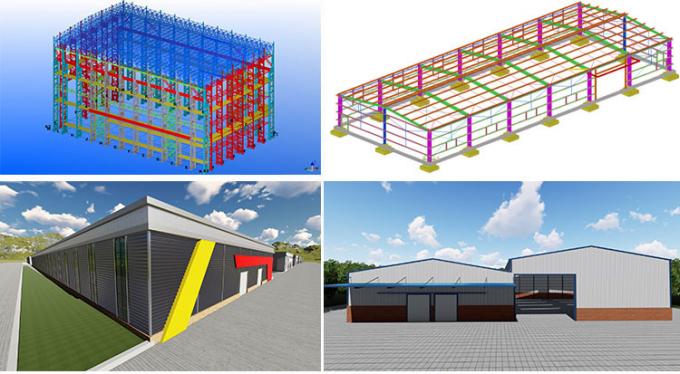

Design Teams
With help of modern designing softwares such as AutoCAD, PKPM,3D3S, SAP2000, TSSD, Tekla Structures (Xsteel), 3DS MAX we provide full designing and detiling service to all customers.
Steel Structure Workshop Industry Building H Type Column C Type Purlin 0
Steel Structure Workshop Industry Building H Type Column C Type Purlin 1
Steel Structure Workshop Industry Building H Type Column C Type Purlin 2

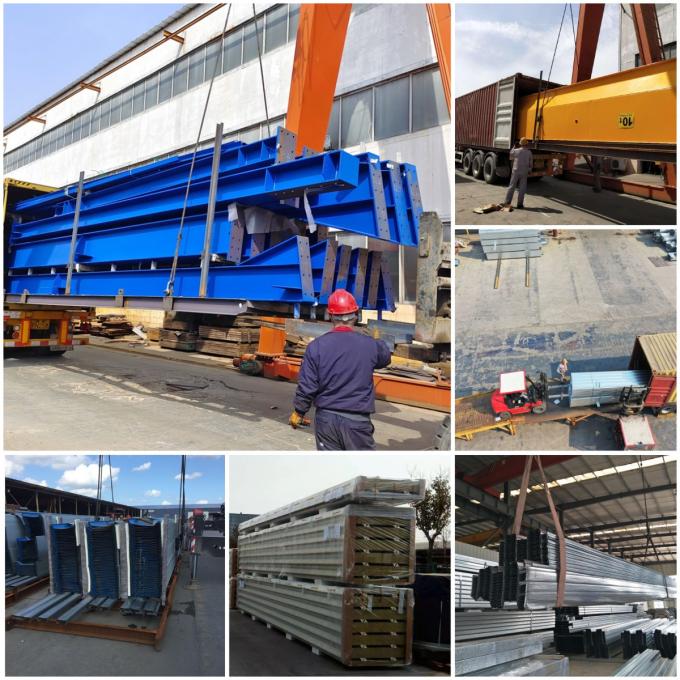

Product packaging
Steel Structure Workshop Industry Building H Type Column C Type Purlin 4










Our excellent design team will design the steel structure workshop warehouse for you. If you give the following information, we will give you an satisfactory drawing.



1 Location (where will be built? ) _____country, area



2 Size: Length*width*height _____mm*_____mm*_____mm



3 wind load (max. Wind speed) _____kn/m2, _____km/h, _____m/s



4 snow load (max. Snow height) _____kn/m2, _____mm



5 anti-earthquake _____level



6 brickwall needed or not If yes, 1.2m high or 1.5m high



7 thermal insulation If yes, EPS, fiberglass wool, rockwool, PU sandwich panels will be suggested;



If not, the metal steel sheets will be ok. The cost of the latter will be much lower than that of the former.



8 door quantity & size _____units, _____(width)mm*_____(height)mm



9 window quanity & size _____units, _____(width)mm*_____(height)mm



10 crane needed or not If yes, _____units, max. Lifting weight____tons; Max. Lifting height _____m



FAQ
Q

You are manufacture factory or trading company?

A

We are manufacture factory. And you are welcomed to visit us for inspection. The quality control flow will show you ourprofessional. Also you will enjoy the best quality and competitive price.

Q

Whats the quality assurance you provided and how do you control quality ?

A

Established a procedure to check products at all stages of the manufacturing process - raw materials, in process materials, validated or tested materials, finished goods, etc. SGS, BV and other testing are available for us. We could deal with you by Trade Assurance via Alibaba.

Q

Can you offer designing service?

A

Yes, we have more than 10 design engineers. We could design full solution drawings as per your requirments. They use software: Auto CAD,PKPM, MTS, 3D3S, Tarch, Tekla Structures(Xsteel)V12.0.etc.

Steel Metal Building Shed Residential Garage Workshop

Q

Do you offer guiding installation on site overseas?

A

Yes, usually we will send you the detailed installation drawing, if you need, we can provide the service of installation, supervision and training by extra. We can send our professional technical engineer to supervise installation on site overseas.
