50m*50m Prefabricated Industry Steel Structure Workshop Processing Buildings

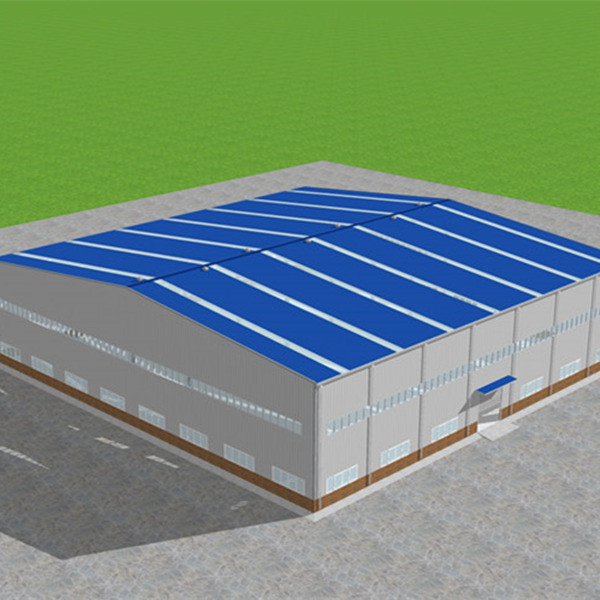

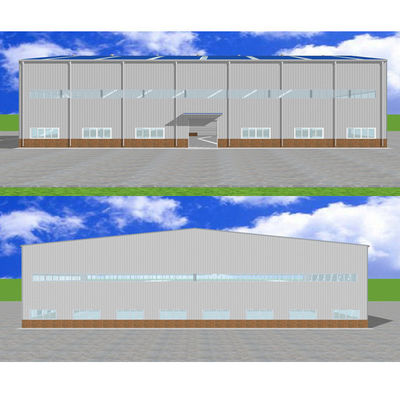

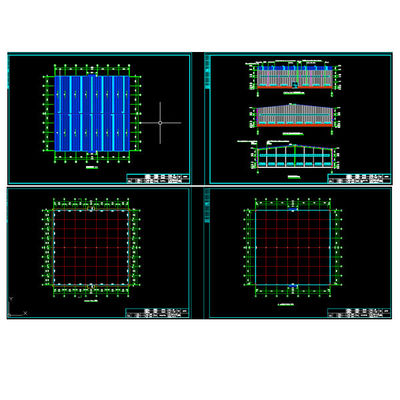

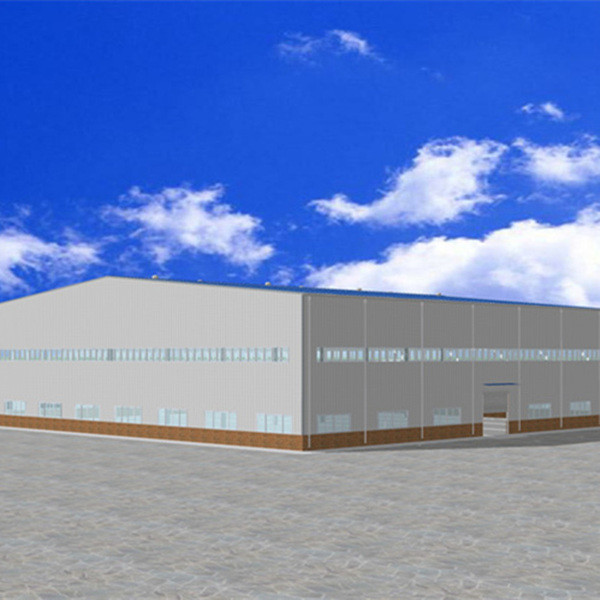

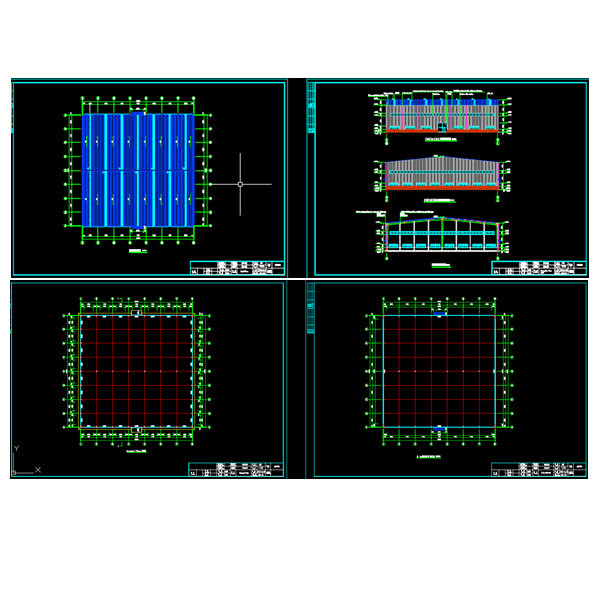

Design of this Steel Structure Workshop
Steel structure food processing plant 50m*50m*12m (length * width * eaves height)
Double slope single ridge
The roof slope is 10%, and the outer gutter + φ110UPVC forms a roof drainage system, which can cope with the rainy season
There is a canopy above each door to play the role of sunshade and rain shelter.
Roof method: 0.4mm color steel plate
Wall method: 0.4mm outer panel
| site condition | Project location | wind load (m/s) | function |
| Kenya | Cassava processing and storage | ||
| size | length (M) | width (M) | height (M) |
| 50 | 50 | 12 | |
| crane request | crane tons (T) | lifting height (M) | crane quantity (set) |
| No | No | No | |
| wall request | brick wall height (M) | insulation | gutter |
| 1.2m | No | Yes | |
| roof request | insulation | skylight | ventilation |
| No | Yes | Yes | |
| door & window | the quantity and size of door (M) | the size of lower window (M) | the size of upper window (M) |
| Size 4m* 4M,Electric rolling shutter door* 2 | sliding window,4M *1.5m*28 | fixed long window,47m*1.2m*4 |
Details make a difference
Saddle pad
Waterproof accessories for metal roofs, good waterproof effect and easy to use.
Self-tapping screw
It is used for fixing roof tiles and wall tiles, and it is used with a waterproof cap.
Waterproof hat
It is used on the top of the drill tail wire to play the role of waterproof and antirust.
Rivet
Generally used to fix the iron sheet, this kind of nail fixes the components beautifully.
Ladder block
It is used to block the crest head and prevent the board head from rusting.
Lighting board
Safety and fire prevention, tough texture, impact resistance, long service life, widely used in various factories and workshops.
Common thickness: 1.2mm & 1.5mm
The plate shape is consistent with the roof panel
Classic Ventilator Advantages
1. No electricity, 24/7 operation, zero operating costs, saving resources.
2. High sensitivity, no noise, rainproof, sturdy and durable.
3. Parts can be replaced by customers, easy to install and easy to maintain.
4. The appearance is compact and elegant.
Advantages of steel construction
Prefab steel Structure workshop buildings are used for industrial production in which all steel structures are painted and then delivered to the project site for installation. And because the steel structure can be manufactured in the factory and installed on-site, the construction time is significantly reduced.
Due to the steel it can dramatically reduce construction waste and is more environmentally friendly. Therefore, it widely used in industrial buildings and civil buildings.
Our company
QINGDAO QIANCHENGXIN CONSTRUCTION TECHNOLOGY CO., LTD-The headquarter is located in the beautiful coastal city - Qingdao, China.The city where we are located has Qingdao port with a fully automated terminal, which is convenient for the sea transportation of goods.
Our factory has multiple production lines, equipped with steel cutting, shot blasting, stamping, bending, welding, forming equipment. The technology and equipment are advanced, and the steel structure is of good quality and durable.
Possess the foreign contracted project management qualification certificate issued by the Ministry of Commerce of China, CE certification [EN1090 certificate], IS09001 certificate, etc.
Our service
With many years of steel structure export experience and steel structure construction experience, it can provide a series of services from design to production to on-site installation to after-sales. Each steel component will be numbered in detail at the time of delivery, and complete and detailed installation instructions and construction process instructions will be provided. If the customer needs, we can also send overseas construction teams or construction workers to assist in the installation.
