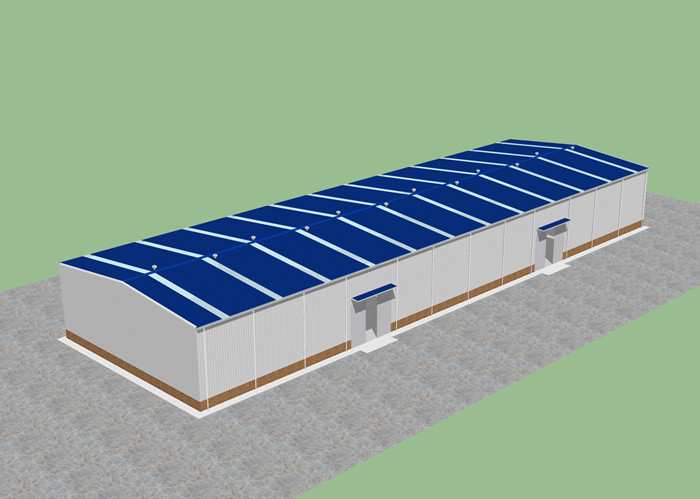

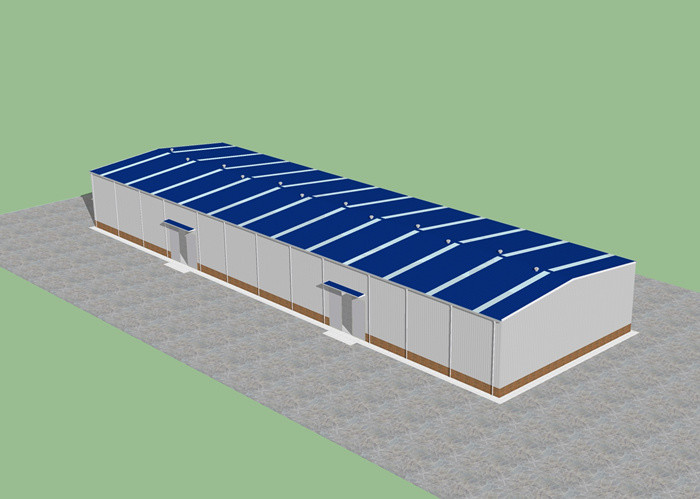

90m*27m Prefabricated Steel Structure Workshop Frame Building Construction
The Introduction of This Steel Structure Workshop Building
Designed according to the customer's requirements, to save costs, no Windows were installed. At the same time, in order to solve the ventilation problem, we set up ventilators and lighting on the roof.
Classic Ventilator Advantages
-- No electricity, 24/7 operation, zero operating costs, saving resources.
-- High sensitivity, no noise, rainproof, sturdy and durable.
-- Parts can be replaced by customers, easy to install and easy to maintain.
--The appearance is compact and elegant.
The lighting board is convenient for indoor lighting.
--Safety and fire prevention, tough texture, impact resistance, long service life, widely used in various factories and workshops.
--Common thickness: 1.2mm & 1.5mm
--The plate shape is consistent with the roof panel
Sliding doors
--on the walls on both sides facilitate cargo transportation.

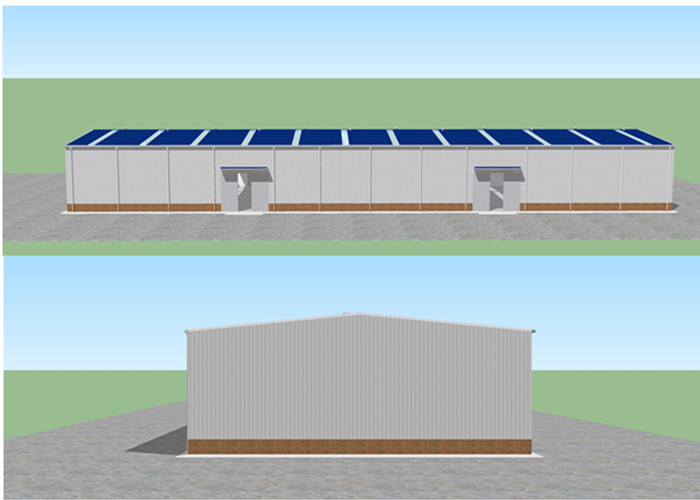

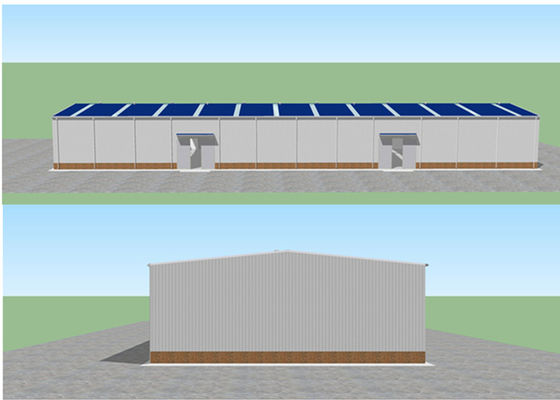

Double slope single ridge
--The roof slope is 10%, and the outer gutter + φ110UPVC forms a roof drainage system, which can cope with the rainy season
--There is a canopy above each door to play the role of sunshade and rain shelter.

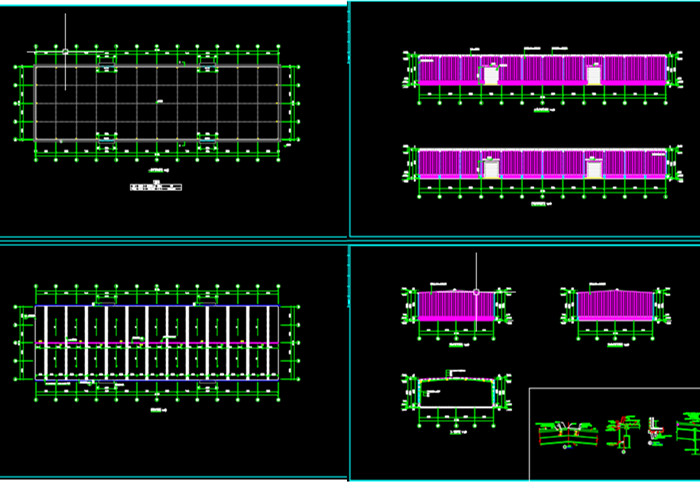

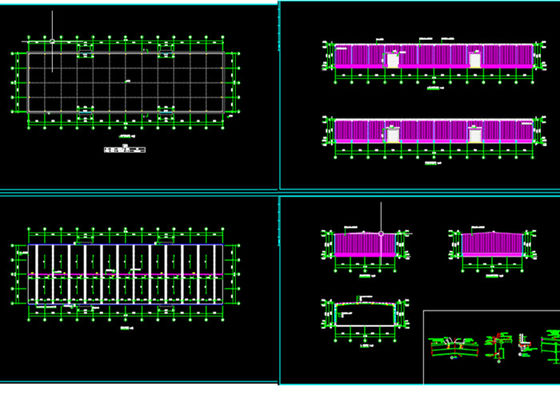

The Details of This Steel Structure Workshop Building
| Project location | wind load (m/s) | function |
| | workshop | |
| length (M) | width (M) | height (M) |
| 27 | 10 | |
| crane tons (T) | lifting height (M) | crane quantity (set) |
| No | No | |
| brick wall height (M) | insulation | gutter |
| No | Yes | |
| insulation | skylight | ventilation |
| Yes | Yes | |
| the quantity and size of door (M) | the size of lower window (M) | the size of upper window (M) |
| No | No |
Advantages of steel construction
Prefab steel Structure workshop buildings are used for industrial production in which all steel structures are painted and then delivered to the project site for installation.
And because the steel structure can be manufactured in the factory and installed on-site, the construction time is significantly reduced. Due to the steel it can dramatically reduce construction waste and is more environmentally friendly. Therefore, it widely used in industrial buildings and civil buildings.
Our company
QINGDAO QIANCHENGXIN CONSTRUCTION TECHNOLOGY CO., LTD-The headquarter is located in the beautiful coastal city - Qingdao, China.The city where we are located has Qingdao port with a fully automated terminal, which is convenient for the sea transportation of goods.
Our factory has multiple production lines, equipped with steel cutting, shot blasting, stamping, bending, welding, forming equipment. The technology and equipment are advanced, and the steel structure is of good quality and durable.
Possess the foreign contracted project management qualification certificate issued by the Ministry of Commerce of China, CE certification [EN1090 certificate], IS09001 certificate, etc.
PRODUCTION CAPACITY :
Our company:QINGDAO QIANCHENGXIN CONSTRUCTION TECHNOLOGY CO., LTD
The company has:
2 composite board production lines
| more than 1 million meters/year |
5 color steel plate production lines
| 2 million meters/year |
2 H-type steel CNC production lines
| 20000 tons/year |
1 C-type steel production line
| 2500 tons/year |
1 Z-steel production line
| 2,000 tons/year |
