Waterproof Steel Structure Workshop Fabricated Steel Portal Frame Warehouse GB

800 square meter
MOQ
$27 - $40 per square meter
Price
Waterproof Steel Structure Workshop Fabricated Steel Portal Frame Warehouse GB
Features Gallery Product Description Request A Quote
Features
Specifications
Material: Q355 & Q235
Standard: GB (China Standard)
Feature: Waterproof
Connection Form: Bolt Connection
Column & Beam: Q235 Or Q355
Frame: Portal Frame
High Light:

Waterproof Steel Structure Workshop

,

Steel Structure Workshop Fabricated

,

Steel Portal Frame Warehouse GB

Basic Infomation
Place of Origin: China
Brand Name: QCX
Certification: ISO 9001, CE certificate of quality system
Model Number: Steel Structure Workshop
Payment & Shipping Terms
Packaging Details: Steel components are packaged with steel pallets
Delivery Time: 25-35 work days
Payment Terms: L/C, T/T
Supply Ability: 22000 tons/year
Product Description

Waterproof Steel Structure Workshop Fabricated Steel Portal Frame Warehouse GB

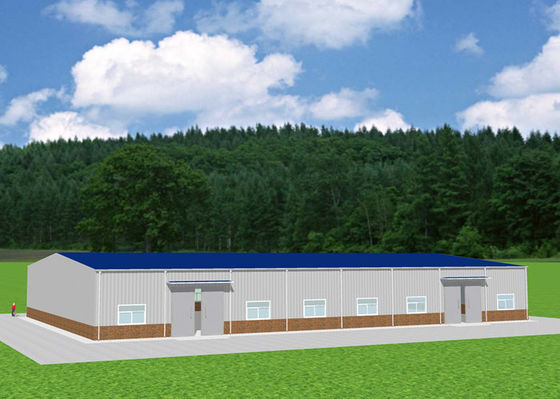

The Introduction of This Project



Warehouse 50m*30m*6m



Sliding doors on the walls facilitate cargo transportation.



There is a canopy above each door to play the role of sunshade and rain shelter.



Waterproof Steel Structure Workshop Fabricated Steel Portal Frame Warehouse GB 0

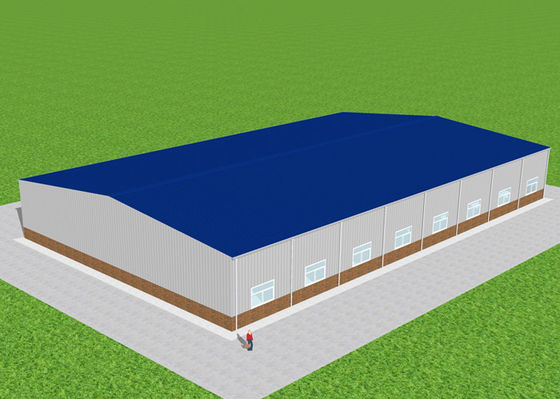

Double slope single ridge



The roof slope is 10%, and the outer gutter + φ110UPVC forms a roof drainage system, which can cope with the rainy season

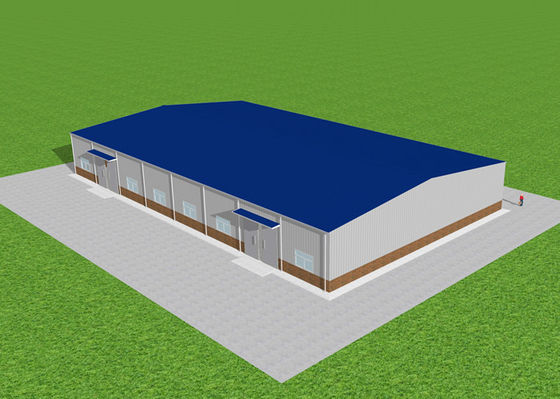

Windows (aluminum alloy push-pull Windows) are set on both sides of the wall, basically one in each span, to ensure good ventilation and lighting.



Waterproof Steel Structure Workshop Fabricated Steel Portal Frame Warehouse GB 1

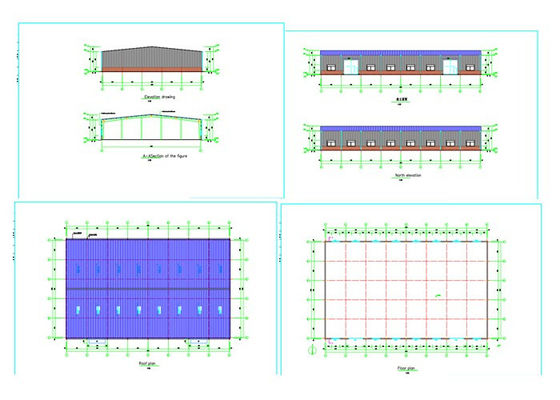

The Details of This Project



Size



L (M)



W (M) cornice height (M) ridge height (M)



50



30 6 7.5
crane



crane tons (T)



running distance (M) crane quantity (set) lifting height (M)



No



No No No
wall



brick wall height (M)



insulation gutter downpipe



1.2



No

outer gutter

φ110UPVC
roof



insulation



skylight ventilation canopy



No



No No Yes, a total of 2
door & window



the quantity and size of door (M)





the quantity and size of window (M)





EPS sandwich panel sliding door



4.5m*4.5m*2 Aluminum alloy sliding window


2.6m*1.8m*14





Waterproof Steel Structure Workshop Fabricated Steel Portal Frame Warehouse GB 2Waterproof Steel Structure Workshop Fabricated Steel Portal Frame Warehouse GB 3


Advantages of steel construction



Prefab steel Structure workshop buildings are used for industrial production in which all steel structures are painted and then delivered to the project site for installation.



And because the steel structure can be manufactured in the factory and installed on-site, the construction time is significantly reduced. Due to the steel it can dramatically reduce construction waste and is more environmentally friendly. Therefore, it widely used in industrial buildings and civil buildings.



Our company



QINGDAO QIANCHENGXIN CONSTRUCTION TECHNOLOGY CO., LTD-The headquarter is located in the beautiful coastal city - Qingdao, China.The city where we are located has Qingdao port with a fully automated terminal, which is convenient for the sea transportation of goods.

Our factory has multiple production lines, equipped with steel cutting, shot blasting, stamping, bending, welding, forming equipment. The technology and equipment are advanced, and the steel structure is of good quality and durable.



Possess the foreign contracted project management qualification certificate issued by the Ministry of Commerce of China, CE certification [EN1090 certificate], IS09001 certificate, etc.



Waterproof Steel Structure Workshop Fabricated Steel Portal Frame Warehouse GB 4

Products and construction services have been exported to more than 50 countries in Asia, Africa, North America and South America. In addition, it has established branches in Mozambique, Kenya and other countries, which can undertake steel structure installation projects in Africa.



When it comes to investing in a Workshop Steel Building , we all want perfection, and that’s exactly what you’ll get when you buy with Qingdao Qianchengxin. Our engineering team, combined with our design software, can customize a garage, hanger, warehouse or workshop that suits your needs.



Waterproof Steel Structure Workshop Fabricated Steel Portal Frame Warehouse GB 5
