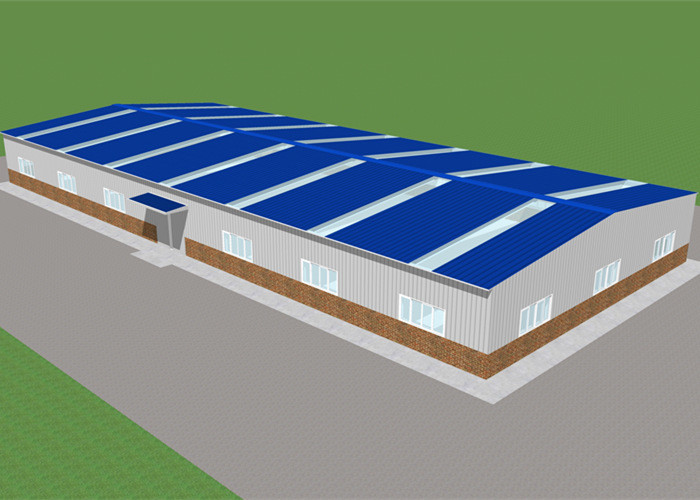

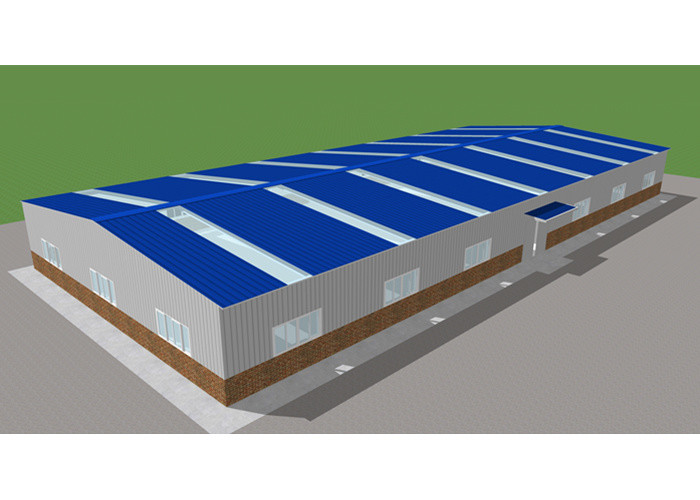

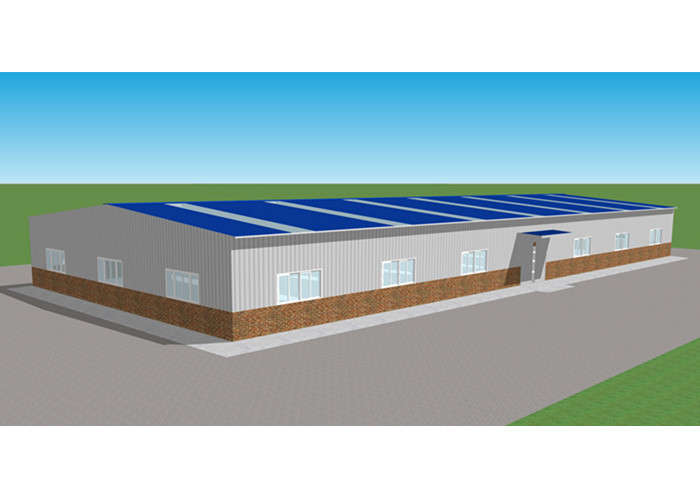

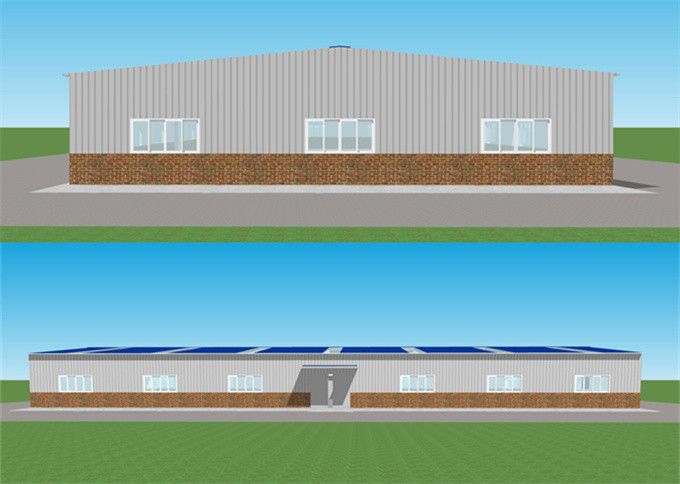

Prefabricated Steel Structure Warehouse Frame Construction Building
About This Steel Structure Warehouse Building
Drainage system
Because the height of the whole warehouse is relatively low, the height of the cornice is only three meters, and the precipitation in the area where the project is located is moderate, considering the price demand of customers, so there is no design of downspout and gutter, relying on the free drainage of 10% slope of the roof.
Canopy is arranged above the sliding door to facilitate the transportation of goods.
Ventilation system
It relies on 18 2m*1m sliding Windows to ensure ventilation.
Daylighting system
A lighting belt is added to the roof to match the window lighting.
Heat preservation and insulation
The roof is provided with glass silk wadding.
|
site condition
|
Project location | wind load (m/s) | function |
| Congo (DRC) | 1.6 m/s | warehouse | |
|
size
|
length (M) | width (M) | height (M) |
| 35 | 15 | 3 | |
|
crane request
|
crane tons (T) | lifting height (M) | crane quantity (set) |
| - | - | ||
|
wall request
|
brick wall height (M) |
insulation | gutter |
|
Yes |
No | ||
|
roof request
|
insulation | skylight | ventilation |
| No | Yes | No | |
|
door & window
|
the quantity and size of door (M) | the size of lower window (M) |
the size of upper window (M)
|
|
2 doors of 2m
|
No | 1.5 |
The Details of This Steel Structure Warehouse
| Component | Description |
|---|---|
| Steel Columns | Vertical load-bearing members that support the weight of the structure and transfer loads to the foundation. |
| Steel Beams | Horizontal load-bearing members that distribute the weight from the roof and upper floors to the columns. |
| Trusses and Girders | Structural frameworks designed to bear heavy loads and provide support for the roof and walls. |
| Roofing and Wall Panels | Steel sheets used to cover and enclose the workshop, providing weather protection and insulation. |
| Insulation | Material used between panels to regulate temperature, control sound, and enhance energy efficiency. |
| Sliding Doors | Doors that operate by sliding horizontally along tracks, offering easy access and space-saving benefits. |
| Windows | Fixed or operable openings in walls, providing natural light, ventilation, and visibility. |
| Foundation | The base that supports the entire structure, usually made of concrete, which the columns are anchored to for stability. |
| Ventilation Systems | Mechanisms for air exchange and proper airflow, essential for maintaining a comfortable and safe working environment. |
Advantages of steel construction
1.Strength and durability: Steel is known for its high strength-to-weight ratio, making it an incredibly strong material. It can withstand heavy loads and extreme weather conditions, ensuring the longevity and stability of the structure.
2.Design flexibility: Steel construction allows for greater design flexibility, as it can be fabricated into various shapes and sizes. This flexibility enables architects and engineers to create unique and innovative structures.
3.Speed of construction: Steel structures can be pre-fabricated off-site, which reduces construction time significantly. This faster construction process can save both time and money.
4.Cost-effectiveness: Although the initial cost of steel construction may be higher compared to some other materials, the long-term cost benefits often outweigh this. The durability of steel reduces the need for frequent maintenance and repair, leading to lower life-cycle costs.
Our company
QINGDAO QIANCHENGXIN CONSTRUCTION TECHNOLOGY CO., LTD
With many years of steel structure export experience and steel structure construction experience, it can provide a series of services from design to production to on-site installation to after-sales.
Each steel component will be numbered in detail at the time of delivery, and complete and detailed installation instructions and construction process instructions will be provided. If the customer needs, we can also send overseas construction teams or construction workers to assist in the installation.
Production Capacity
Our company:QINGDAO QIANCHENGXIN CONSTRUCTION TECHNOLOGY CO., LTD
The company has:
|
2 composite board production lines
|
more than 1 million meters/year |
|
5 color steel plate production lines
|
2 million meters/year |
|
2 H-type steel CNC production lines
|
20000 tons/year |
|
1 C-type steel production line
|
2500 tons/year |
|
1 Z-steel production line
|
2,000 tons/year |
