Large Span Weld H Beam Prefabricated Steel Structure Workshop Construction

500SQM
MOQ
$45~$65 per sqm
Price
Large Span Weld H Beam Prefabricated Steel Structure Workshop Construction
Features Gallery Product Description Request A Quote
Features
Specifications
Size: Customized
Drawing Design: AutoCAD,PKPM,MTS,3D3S, Tarch, Tekla Structures
Window: Aluminum Alloy/Plastic Steel
Column And Beam: Q355 Welded H Section Steel
Crane: Optional
Roof And Wall Panel: EPS/Rock Wool/PU Sandwich Panel /steel Color Sheet
Application Fields: Warehouse, Workshop, Hangar, Supermarkets, Office, Poultry Feeding
Structure: Steel Structure
High Light:

Welded H Beam Steel Workshop

,

Q355 Prefabricated Steel Structure Workshop

,

Customized Steel Prefab Workshop Building

Basic Infomation
Place of Origin: China
Brand Name: QCX
Certification: CE/ ISO9001
Model Number: steel structure workshop
Payment & Shipping Terms
Packaging Details: According to packinglist
Delivery Time: 30~45days
Payment Terms: TT, L/C
Supply Ability: 2000 tons per month
Product Description

Product Description:

Steel structure workshop is the type of building formed by main framework which mainly consists of steel column, steel beam and purlin, thus the steel structure accounts for the major load-bearing member of steel workshop building. The roof and wall of steel workshop utilize various styles of panels that will overlap when assembled together, leaving no openings. As a result, the steel frame structure workshop can be isolated against outdoor environments. Due to reasonable cost and short construction period, steel structure has been applied in a wide range of industrial and non-industrial building construction.

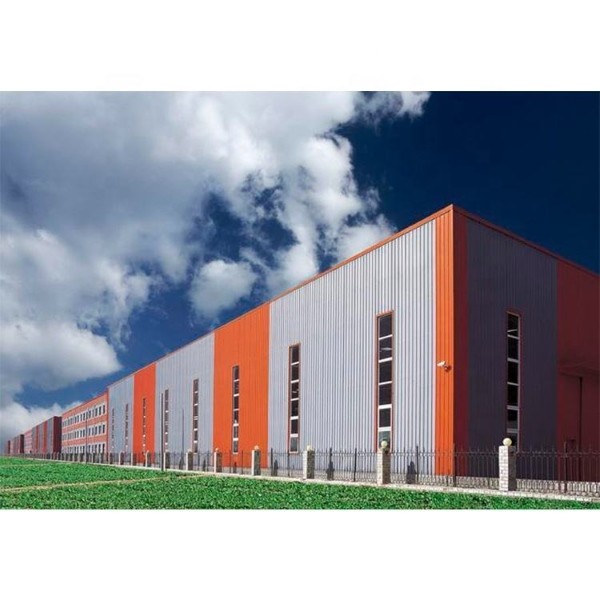

Large Span Weld H Beam Prefabricated Steel Structure Workshop Construction 0

Features:

1. Compared with ordinary reinforced concrete structures,metal workshop construction have the advantages of homogeneity, high strength, fast construction speed, good seismic resistance and high recovery rate. The strength and elastic modulus of steel are many times higher than those of masonry and concrete. Therefore, Under the same load conditions, the weight of steel members is light. From the perspective of damage, the steel structure has a large deformation omen in advance, which belongs to the ductile failure structure, which can detect the danger in advance and avoid it.

2. The steel structure workshop metal steel building has the advantages of overall light weight, saving foundation, less materials, low cost, short construction period, large span, safety and reliability, beautiful appearance and stable structure. Steel structure workshops are widely used in construction industries such as large-span industrial plants, warehouses, cold storages, high-rise buildings, office buildings, multi-storey parking lots and residential buildings.

3. Steel may be made and delivered in a cost-effective and timely manner. Steel structures metal frame buildings can be handed off- the point at shop floors and after that gathered hard. This spares time and increases the effectiveness of the general development process.

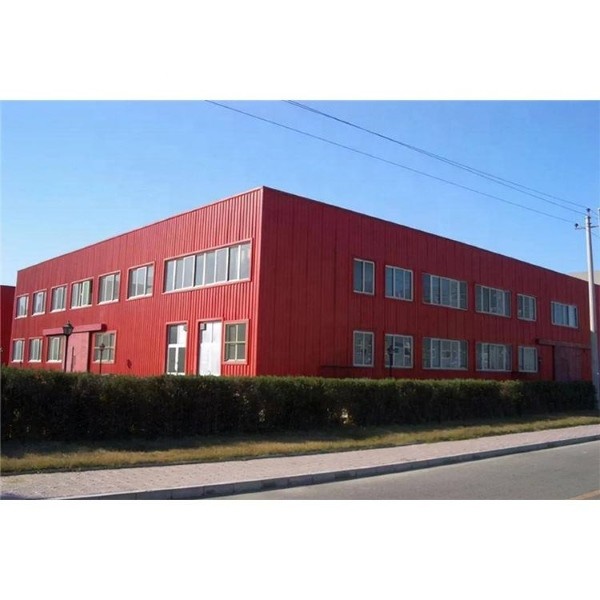

Large Span Weld H Beam Prefabricated Steel Structure Workshop Construction 1

Technical Parameters:

Parameter Description
Column and Beam Q355 Welded H Section Steel
Downpipe UPVC
Drawing design AutoCAD,PKPM,MTS,3D3S,Tarch,Tekla Structures
Size Customized
Crane Optional
Window Aluminum Alloy/Plastic Steel
Purlin C Section/Z Section
Door Rolled Up Door/Sliding Door
Surface Treatment Painted/Hot Dip Galvanized
Structure Steel Structure


Applications:

The single-story Steel Structure Workshop is the primary type of workshop and warehouse in Metallurgy, machinery, and other industries. Many workshops choose a single-story steel structure workshop mainly because of its large span and the height that can adjust to the need.


The production of the multi-story steel structure workshop is carried out on different elevation floors, with a horizontal connection between each floor and a vertical connection. Therefore, in the design of the factory building, it is not only necessary to consider the reasonable connection between the sections on the same floor and to solve the vertical connection between floors and arrange the traffic in the vertical direction.

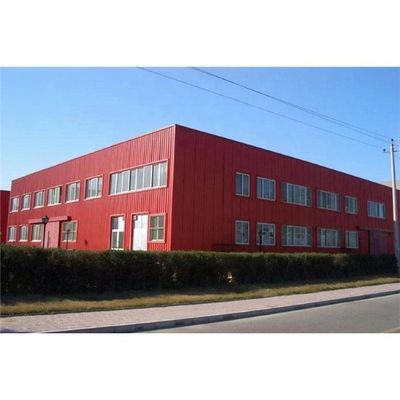

Large Span Weld H Beam Prefabricated Steel Structure Workshop Construction 2

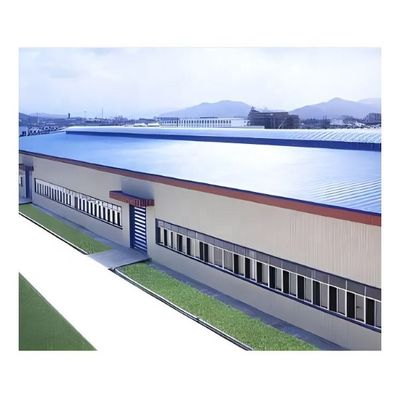

Large Span Weld H Beam Prefabricated Steel Structure Workshop Construction 3

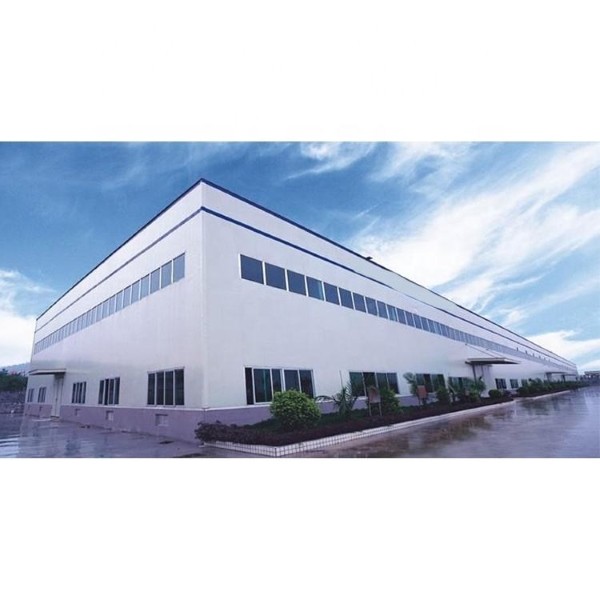

Large Span Weld H Beam Prefabricated Steel Structure Workshop Construction 4


Company profile:

Qingdao Qianchengxin Construction Technology Co, Ltd. was established in 2014. lt is a high-tech, diversified and export-oriented large-scale international private enterprise integrating R&D, design, production, installation and construction at home and abroad, and technical services.
Qian Chengxin has the qualification certificate of China's overseas contracted project management issued by the Ministry of Commerce of China, CE certification [EN1090 certificatel), ISO9001 certificate, etc, and has carried out long-term cooperation with countries along the "Belt and Road". The current products and construction services have been exported to more than 50 countries around the world, including Asia, Africa, North and South America. ln addition. branches have been established in Mozambigue and Angola, which can undertake steel structure installation projects in Africa

Large Span Weld H Beam Prefabricated Steel Structure Workshop Construction 5
Production process:
Large Span Weld H Beam Prefabricated Steel Structure Workshop Construction 6

Qualification certificates:

Large Span Weld H Beam Prefabricated Steel Structure Workshop Construction 7



Support and Services:


Steel Structure Workshop Technical Support and Service

Our team of experts is committed to providing the highest level of technical support and service for your steel structure workshop. Our team of experienced professionals is available to answer any questions you may have and to provide technical advice on any aspect of your steel structure workshop.

We offer a range of services, including on-site installation and maintenance, as well as remote support for your steel structure workshop. Our team is also available to assist you in the design and engineering of your steel structure workshop, as well as providing advice on the best materials and components to use.

For more information about our steel structure workshop technical support and service, please contact us today.



Packing and Shipping:



Our technical team will do the economical packing plan for clients, calculate the quantity of steel structure materials accurately and use the min. quantity of containers, to save the shipping freight for clients.
When packing we use the pallets according to container's size, to improve the loading unloading efficency.


Large Span Weld H Beam Prefabricated Steel Structure Workshop Construction 8

Could you tell me your requirement for your steel structure project?

Basic design requirements and design Load,
1. Project site location;
2. Overall dimension (length*width*eave height in meters);
3. Mezzanine or not? How many kgs of load per square meter on mezzanine?
4. Single-layer steel sheet wall or sandwich panel wall;
5. Snow load if applicable;
6. Wind speed/load;
7. Interior column allowed or not;
8. Overhead crane needed or not, capacity?;
9. Any other particular requirements?
