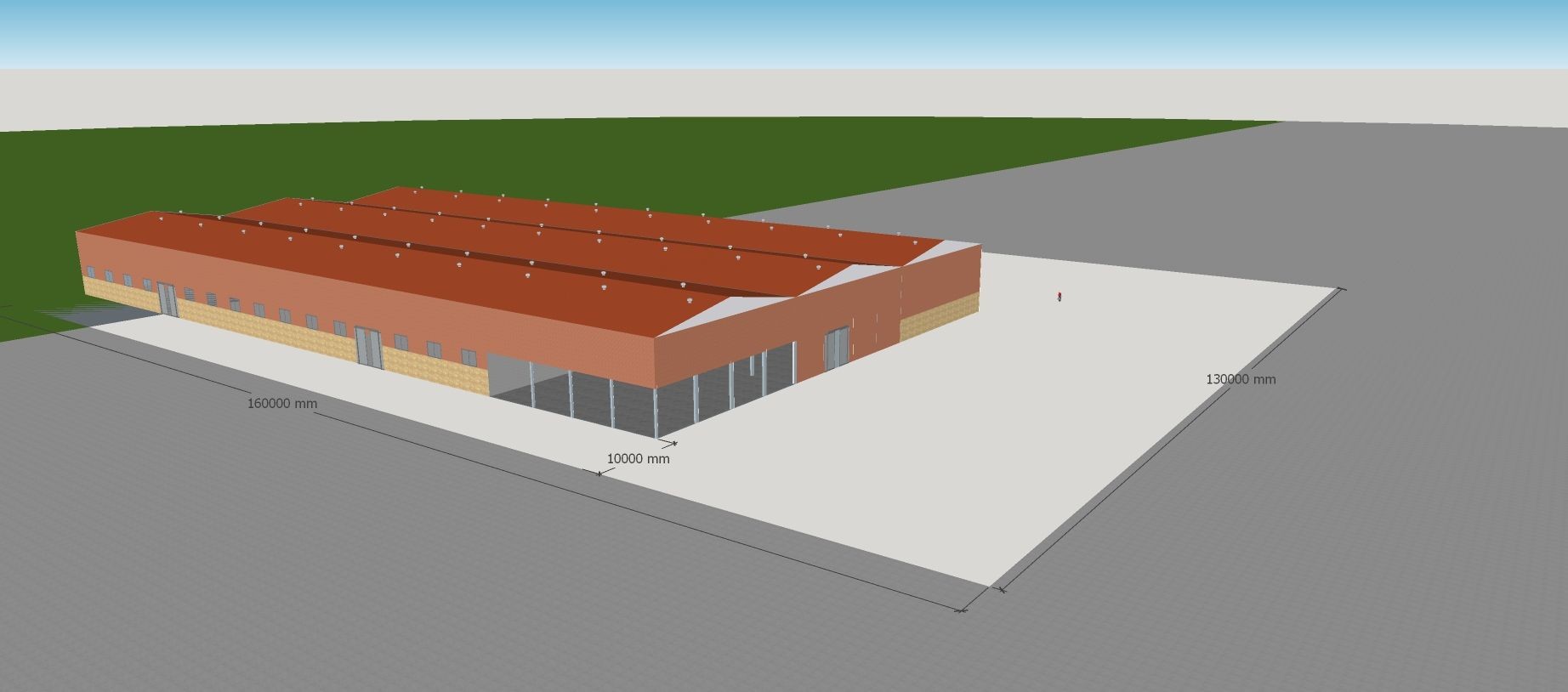

Steel Structure Warehouse Fertilizer Workshop Steel Buildings
Introduction, use and advantages of steel structure:
Steel structure is a new type of building structure system, which is formed by the main steel framework linked by H-section, Z-section, and U-section steel components or any other product shape according to customer's requirements, roof and walls using a variety of panels and other components such as windows and doors.
Light steel structure building is widely used in warehouses, workshops, large factories, commercial building, car parking system, agricultural storage shed, livestock house, poultry house and so on.
Steel structure buildings have the advantages of light weight, strong applicability, beautiful appearance, low cost, easy maintenance, short construction period and high accuracy.
H Section Steel Structure Building Workshop
| Item Name | design manufacture steel structures for workshop warehouse hangar building |
| Steel column and beam | Q345B, welded H section steel with two coats of red lead paint |
| Cran beam | Q345B, welded H section steel with two coats of red lead paint |
| Purlin | Q235, galvanizd C section steel with two coats of red lead paint |
| Roof Cladding | V-760 0.5mm dip aluminum-zinc steel sheet + Glasswool Blanket with Aluminum-foil paper+ Wire Mesh |
| Skylight sheet | V-760, 1.2mm / V-900, 1.0mm / V-780, 1.2mm |
| Exterior wall sheet | V-780, 0.5mm dip aluminum-zinc steel sheet |
| Window | Aluminum alloy window |
| Door | EPS sandwich panel sliding door |
| Service | Design, Fabrication and Installation |
| We can make quotation according to customer's drawing or requirement; (size by length/width/height and wind speed), offering a free design drawing and all detailed drawings for installation. | |
| Design software: Auto CAD,PKPM,MTS,3D3S, Tarch, Tekla Structures(Xsteel)V12.0.etc | |
| Packing | According to customer's requirement |
| Load into 40/20GP,40HQ or 40OT |
| Item | Details |
| Product name | Quick build building prefabricated steel warehouse workshop hangar steel structure |
| Construction area | 200000 sq.m |
| Application | Logistics warehouse |
| Location | China |
| Frame type | Portal frame |
| Main steel frame | Welded H steel with 2 layer of mid gray paint |
| Roof cladding | 75mm Glass wool sandwich panel composite on site |
| Wall cladding | 75 Glass wool sandwich panel |
| Door | Roller shutter door, Access door |
| Window | Fixed and sliding window |
| Ventilating | Roof ventilator |
| Parapet wall | Yes |
| Canopy | Yes |
Company Profile:
Established in 2014, the company is a high-tech, diversified and export-oriented large-scale international
private enterprise integrating R&D, design, production, installation and construction at home and abroad,
and technical services.
It has the qualification certificate of overseas contracted project management issued by the Ministry of
Commerce of China, CE certification [EN1090 certificate], IS09001 certificate, etc, and has long-term
cooperation with countries along the " Belt and Road".
The products and construction services have been exported to more than 50 countries around the world,
including Asia, Africa, North and South America. In addition, branches have been established in
Mozambique and Angola, which can undertake steel structure installation projects in Africa.
Products& Services:
Qualification certificates:
Philosophy& Vision:
Product packaging:
1. Steel components are packaged with steel pallets at the factory with the coding number, which is convenient for customers to unload; small steel structures are bundled with iron wires and hung with tags.
2. Fasteners are packed in wooden cases
3. The upper layer of the color-coated roof and wall panel is covered with plastic film, and the maintenance edge is wrapped with plastic film and labelled.
4. Container type: 40ft HC, 20ft GP
Our prefabricated steel structure buildings are pre-cut, pre-drilled, and ready for quick and efficient assembly. Steel buildings work for virtually any building application:Agricultural/ Barns/ Aircraft Hangars/ Welding Shops/ Commercial center/ Garages/ Storage/ Suburban Buildings/ Warehouses/ Workshops etc.
Our Advantages:
1,Professional and efficient designer teams
2,Collectivize and largescale production
3,Professional and efficient installation of the construction
4,International quality control system
1>. Professional
Our campany was founded in 2007. Since then, we have been a professional manufacturer of steel structure building,container house,prefabricated house ,sandwich panel and color steel sheet with ISO9001 certification.
2>. Quality Management
Quality control and stability: Applied with high quality, each product is produced under strict quality control at every manufacturing process from raw materials to final testing which ensures our products come with perfect performance.
3>. Excellent after-sales service
Our customer service team Offers you Pre-sales and after-sales service.
4>. OEM/ODM available:
1). Customized design;
2). Customized dimension;
3). Customized brand package.
FAQ
1.Are you a manufacture or trading company?
- We are a comprehensive and trade enterprises. We have our own factory. You can get the best price and competitive price. And you are welcome to visit us at any time .
2)What’s the quality assurance you provided and how do you control quality ?
-Established a procedure to check products at all stages of the manufacturing process - raw materials, in process materials, validated or tested materials, finished goods, etc.
3) Do you provide installation on site overseas for steel structure buildings?
- Yes, we usually provide detailed installation drawings and installation methods for free. If you need, we can provide the service of installation, supervision and training by extra. We also can send our professional technical engineer to supervise installation on site overseas.
4)What's the quality grade of the steel structure components?
- Q345B is used for main steel structure, Q235B is used for secondary steel structure.
5).How about the derust grade?
Reply:Ball blasting Sa2.5 on main steel structure manual derust St2.0 on secondary steel structure.
