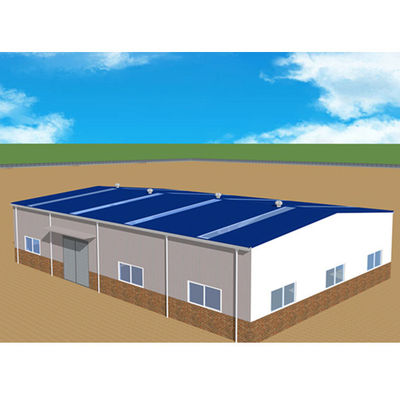

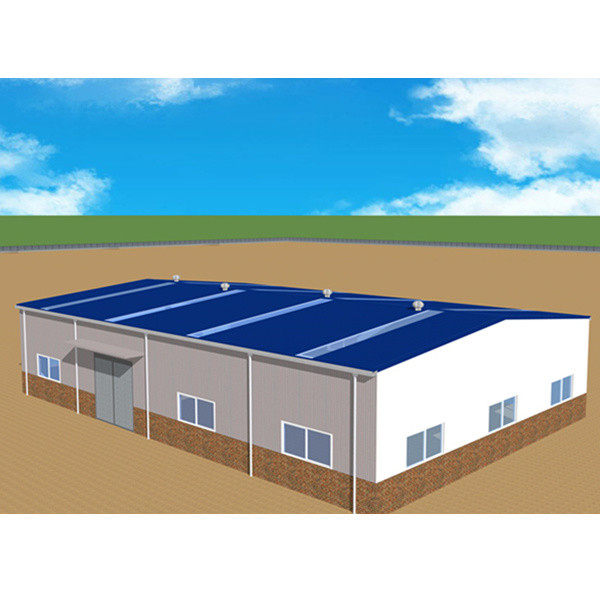

30m*20m Prefab Steel Structure Warehouse Industry Frame Building
The Introduction of This Steel Structure Warehouse Building

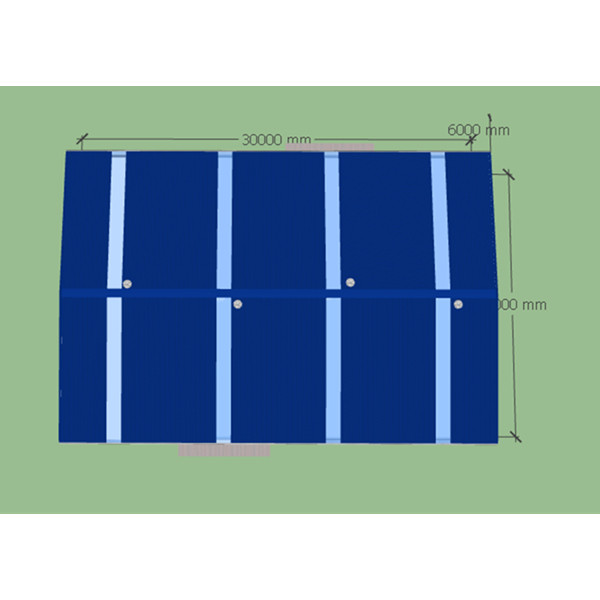

Roof design
Double slope single ridge
The roof slope is 10%, and the outer gutter + φ110UPVC forms a roof drainage system, which can cope with the rainy season
There is a canopy above each door to play the role of sunshade and rain shelter.
Roof method
0.5MM color steel plate + 75mm glass wool + steel wire mesh
The lighting board is convenient for indoor lighting.
Safety and fire prevention, tough texture, impact resistance, long service life, widely used in various factories and workshops.
Common thickness: 1.2mm & 1.5mm
The plate shape is consistent with the roof panel
Classic Ventilator Advantages
1. No electricity, 24/7 operation, zero operating costs, saving resources.
2. High sensitivity, no noise, rainproof, sturdy and durable.
3. Parts can be replaced by customers, easy to install and easy to maintain.
4. The appearance is compact and elegant.
The Details of This Steel Structure Workshop Building
|
|
Project location | wind load (m/s) | function |
|
Cameroon
|
Warehouse | ||
|
|
length (M) | width (M) | height (M) |
|
|
20 | 6 | |
|
|
crane tons (T) | lifting height (M) | crane quantity (set) |
|
|
No | No | |
|
|
brick wall height (M) | insulation | gutter |
|
|
No | Yes | |
|
|
insulation | skylight | ventilation |
|
|
Yes | Yes | |
|
|
the quantity and size of door (M) | the size of lower window (M) | the size of upper window (M) |
|
|
3m*1.5m*Aluminum sliding window*12 | No |
Advantages of steel construction
Prefab steel Structure workshop buildings are used for industrial production in which all steel structures are painted and then delivered to the project site for installation.
And because the steel structure can be manufactured in the factory and installed on-site, the construction time is significantly reduced. Due to the steel it can dramatically reduce construction waste and is more environmentally friendly. Therefore, it widely used in industrial buildings and civil buildings.
Our company
QINGDAO QIANCHENGXIN CONSTRUCTION TECHNOLOGY CO., LTD
With many years of steel structure export experience and steel structure construction experience, it can provide a series of services from design to production to on-site installation to after-sales.
Each steel component will be numbered in detail at the time of delivery, and complete and detailed installation instructions and construction process instructions will be provided. If the customer needs, we can also send overseas construction teams or construction workers to assist in the installation.
Possess the foreign contracted project management qualification certificate issued by the Ministry of Commerce of China, CE certification [EN1090 certificate], IS09001 certificate, etc.
