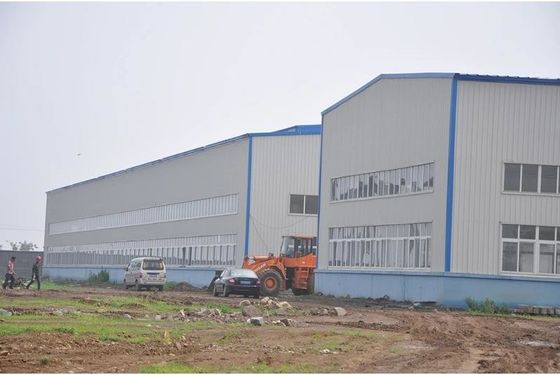

H Section Steel Structure Building Workshop Customized Dimension

5000 ㎡
MOQ
50-70usd/ ㎡
Price
H Section Steel Structure Building Workshop Customized Dimension
Features Gallery Product Description Request A Quote
Features
Specifications
Material: Q355B, PVC/Aluminum Alloy Sheet
Structural Form: Grid Steel Structure
Color: White Grey,Blue,Red,Customized
Dimension: Customized ≥5000㎡
Product Name: Steel Fabrication Factory Warehouseexhibition Hall
Column And Beam: Hot Rolled Or Welded H Section
Application Fields: H Section Steel Structure Building Workshop
High Light:

H Section Steel Structure Building

,

Customized Q355B Steel Structure Building

,

Welded H Steel Structure Workshop

Basic Infomation
Place of Origin: Qingdao,China
Brand Name: QCX
Certification: ISO 9001, CE certificate of quality system
Model Number: Dimension Customized
Payment & Shipping Terms
Packaging Details: PALLETS,CASES,CARTONS
Delivery Time: 30-40DAYS
Payment Terms: T/T
Supply Ability: 2000T/M
Product Description

H Section Steel Structure Building Workshop



Product Description


Characteristics
1. Enviromental friendly
2. Lower cost and maintenance
3. Long using time up to 50 years
4. Stable and earthquake resistance up to 9 grade
5. Fast construction, time saving and labor saving
6. Good appearance

Used:
The steel workshop warehouse building is widely used for workshop plant, warehouse, office building, steel shed, aircraft hangar etc.

Technical Parameters
Item Name design manufacture steel structures for workshop warehouse hangar building
Steel column and beam Q345B, welded H section steel with two coats of red lead paint
Cran beam Q345B, welded H section steel with two coats of red lead paint
Purlin Q235, galvanizd C section steel with two coats of red lead paint
Roof Cladding V-760 0.5mm dip aluminum-zinc steel sheet + Glasswool Blanket with Aluminum-foil paper+ Wire Mesh
Skylight sheet V-760, 1.2mm / V-900, 1.0mm / V-780, 1.2mm
Exterior wall sheet V-780, 0.5mm dip aluminum-zinc steel sheet
Window Aluminum alloy window
Door EPS sandwich panel sliding door
Service Design, Fabrication and Installation
We can make quotation according to customer's drawing or requirement; (size by length/width/height and wind speed), offering a free design drawing and all detailed drawings for installation.
Design software: Auto CAD,PKPM,MTS,3D3S, Tarch, Tekla Structures(Xsteel)V12.0.etc
Packing According to customer's requirement
Load into 40/20GP,40HQ or 40OT

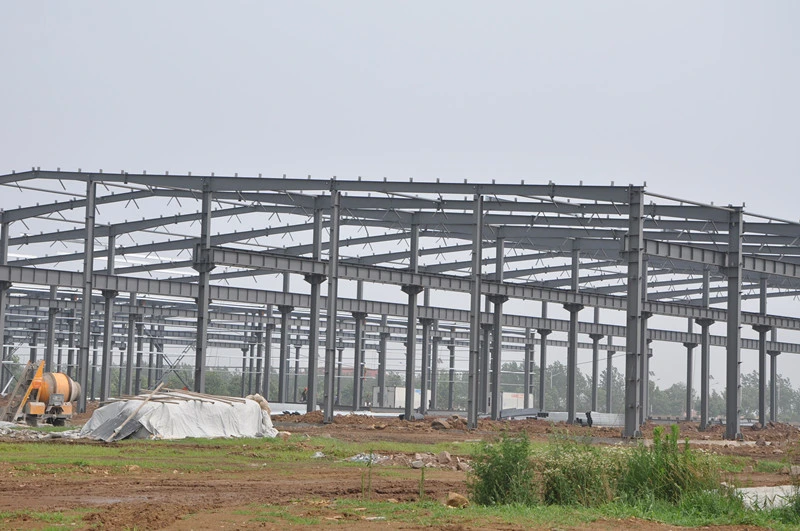

H Section Steel Structure Building/Workshop/Shed/Hanger Q235/Q345

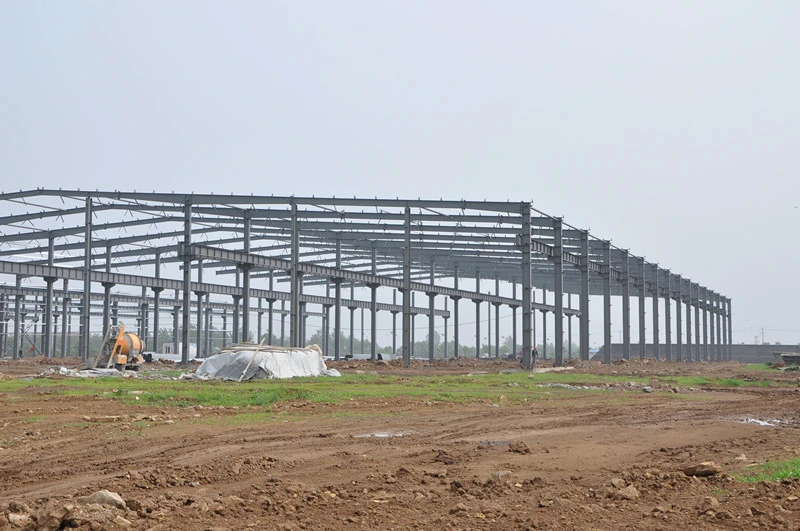

H Section Steel Structure Building/Workshop/Shed/Hanger Q235/Q345

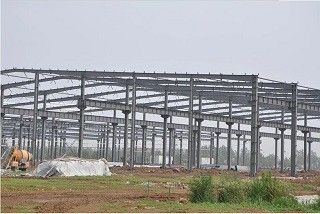

H Section Steel Structure Building/Workshop/Shed/Hanger Q235/Q345

OUR SERVICE

- Quotation according to yours drawing
- Design and quotation according to yours requirements
- Delivery the entire steel building to you by containers;
- Offer all the detailed drawings for installation and fabrication.

Our excellent design team will design the steel structure workshop/warehouse for you.Please offer us the following information, then we will give you an satisfied drawing.

1 Location (where will the building be built? ) _____country, area
2 Size: Length*width*height _____mm*_____mm*_____mm
3 wind load (max. Wind speed) _____kn/m2, _____km/h, _____m/s
4 snow load (max. Snow height,if it has)
_____kn/m2, _____mm
5 anti-earthquake _____level
6 brickwall needed or not If yes, 1.2m high or 1.5m high
7 thermal insulation If yes, EPS, fiberglass wool, rockwool, PU sandwich panels will be suggested; If not, the metal steel sheets will be ok. The cost of the latter will be much lower than that of the former.
8 door quantity & size _____units, _____(width)mm*_____(height)mm
9 window quanity & size _____units, _____(width)mm*_____(height)mm
10 crane needed or not If yes, _____units, max. Lifting weight____tons; Max. Lifting height _____m







Detailed Images



Part of our products:

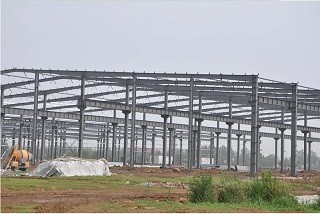

H Section Steel Structure Building Workshop Customized Dimension 3

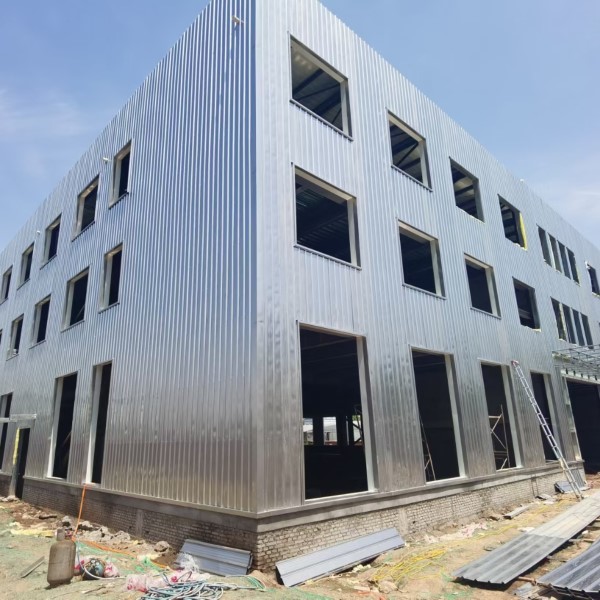

H Section Steel Structure Building Workshop Customized Dimension 4

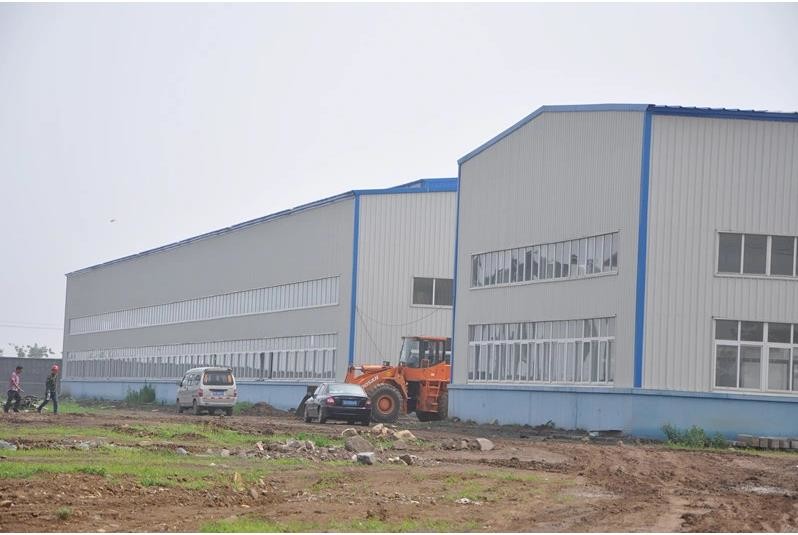

H Section Steel Structure Building Workshop Customized Dimension 5



Company Profile:



Established in 2014, the company is a high-tech, diversified and export-oriented large-scale international

private enterprise integrating R&D, design, production, installation and construction at home and abroad,

and technical services.



It has the qualification certificate of overseas contracted project management issued by the Ministry of

Commerce of China, CE certification [EN1090 certificate], IS09001 certificate, etc, and has long-term

cooperation with countries along the " Belt and Road".



The products and construction services have been exported to more than 50 countries around the world,

including Asia, Africa, North and South America. In addition, branches have been established in

Mozambique and Angola, which can undertake steel structure installation projects in Africa.

H Section Steel Structure Building Workshop Customized Dimension 6





Products& Services:
H Section Steel Structure Building Workshop Customized Dimension 7



Production Capacity:

H Section Steel Structure Building Workshop Customized Dimension 8

H Section Steel Structure Building Workshop Customized Dimension 9H Section Steel Structure Building Workshop Customized Dimension 10





Qualification certificates:

H Section Steel Structure Building Workshop Customized Dimension 11



Philosophy& Vision:

H Section Steel Structure Building Workshop Customized Dimension 12



Product packaging:



1. Steel components are packaged with steel pallets at the factory with the coding number, which is convenient for customers to unload; small steel structures are bundled with iron wires and hung with tags.


2. Fasteners are packed in wooden cases


3. The upper layer of the color-coated roof and wall panel is covered with plastic film, and the maintenance edge is wrapped with plastic film and labelled.


4. Container type: 40ft HC, 20ft GP





H Section Steel Structure Building Workshop Customized Dimension 13



New design steel structure factory/warehouse
