Galvanized Steel Structure Farm Windproof Steel Frame Chicken Coop

500 square meter
MOQ
$220 - $330 per square meter
Price
Galvanized Steel Structure Farm Windproof Steel Frame Chicken Coop
Features Gallery Product Description Request A Quote
Features
Specifications
Name: Steel Frame Chicken Coop
Material: Q235B Q355B
Standard: GB (China Standard)
Building Area: 1562㎡
Size: 105m*14m*4.5m
Feature: Windproof
High Light:

Galvanized Steel Structure Farm

,

Steel Structure Farm Windproof

,

Windproof Steel Frame Chicken Coop

Basic Infomation
Place of Origin: China
Brand Name: QCX
Certification: ISO 9001, CE certificate of quality system
Model Number: Steel Structure Farm
Payment & Shipping Terms
Packaging Details: Steel components are packaged with steel pallets
Delivery Time: 35-45 work days
Payment Terms: L/C, T/T
Supply Ability: 20000 tons/year
Product Description

Steel Structure Farm Layer Poultry Chicken House Design Feeding System



Design of this steel structure farm



The client wants to decide the number of chicken houses to be built according to the budget. This is the standard chicken coop developed and designed by our company, which can realize the optimization of breeding quantity under the condition of moderate relative area.

Egg colleting machine and Egg conveying belt can save labor greatly. It has been sold and installed in many countries and regions.

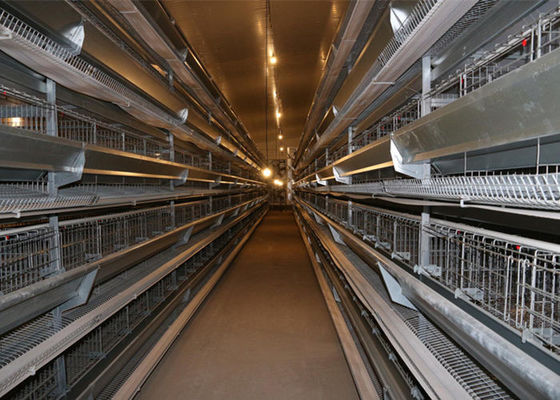

Galvanized Steel Structure Farm Windproof Steel Frame Chicken Coop 0



House dimension L (m) 105 W(m) 14 H (m) 4.5
Model HLD-5300 Tier(s) 5 Row(s) 4 Cage unit
/row
42 No. of cage unit 168
Cage Layout Cage(s)/
cage unit
10 Cell(s)
/cage
5 Birds/cell 6 No. of birds 50400
Cage dimension L(mm) 2250 W(mm) 650 H(mm) 435 Area/bird cm² 450
front&end length(m) 3.7 Width of cage(m) 1.71 Feed /day (tons) 6.048 Feed /3 days (tons) 18.144



Details of steel structure farm building



Size L (M) W (M) H (M)
  105 14 4.5
Roof Slope Insulation roof pannl
  20% Yes 0.4mm color sheet+150mm glass wool+0.4mm color sheet
Wall brick wall (M) Insulation wall pannl
  0.45 Yes 0.4mm color sheet+150mm glass wool+0.4mm color sheet
Door&Window the quantity and size of door (M) the quantity and size of window (M)
  600X1500 *2 900*2100*1 2400mm*2100mm*2 1500*1500*2



Details of steel structure farm equipment





(1)



Cage and Fittings 笼具系统和配件



(2)



Automatic Feeding system 自动喂料系统



(3)



Automatic manure cleaning system 自动清粪系统



(4)



Egg collecting system 捡蛋系统



(5)



Check the car 检查小车



(6)



Automatic drinking system 自动饮水系统



(7)



Storage, feeding system 储料和上料系统



(8)



Ventilation and temperature control system 通风降温系统



(9)



Electric control system 电气控制系统



(10)



Clean manure belt welding machine 清粪带焊接机

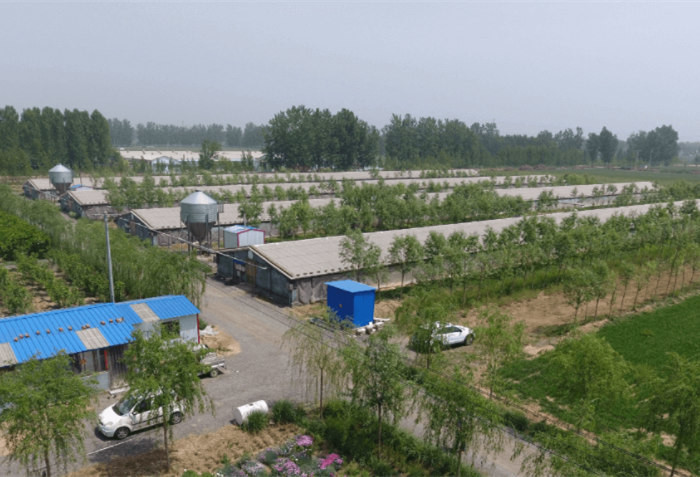

Galvanized Steel Structure Farm Windproof Steel Frame Chicken Coop 1



Advantage of steel structure farm



The emergence of high-quality durable light steel structure aquaculture houses promotes the further development of aquaculture scale towards scale, intensification, standardization and modernization, and achieves a good cooperation with automated aquaculture technology.



1. light steel structure aquaculture housing is suitable for cattle, sheep, pigs, rabbits, chickens, ducks, pigeons and so on;


2. light steel structure optimization design, make the structure of the hen house more beautiful, better stability; Make the construction cost more economical;


3. fully galvanized structural materials and aluminized zinc color board materials, to ensure the anti­corrosion and service life of the house;


4. The insulation material is made of high quality glass fiber wool and EPS to ensure the insulation performance and sealing performance of the house;


5. The construction period is more than 2 months shorter than the traditional house, which can accelerate the construction period of the breeding house, reduce the pressure of capital occupation, reduce the risk of market changes, and improve the investment efficiency of the breeding farm.



About our company



1. Experienced in Steel Structure Industry:



Established in 2014, Qingdao Qianchengxin is a high-tech, diversified and export-oriented large­scale international private enterprise, integrating R&D, design, production, installation and construction at home and abroad, and technical services.

It has the qualification certificate of overseas contracted project management issued by the Ministry of Commerce of China, CE certification [EN1090 certificate], 1S09001 certificate, etc, and has long-term cooperation with countries along the" Belt and Road".
The products and construction services have been exported to more than 50 countries around the world, including Asia, Africa, North and South America. In addition, branches have been established in Mozambique and Angola, which can carry out steel structure installation work in Africa.

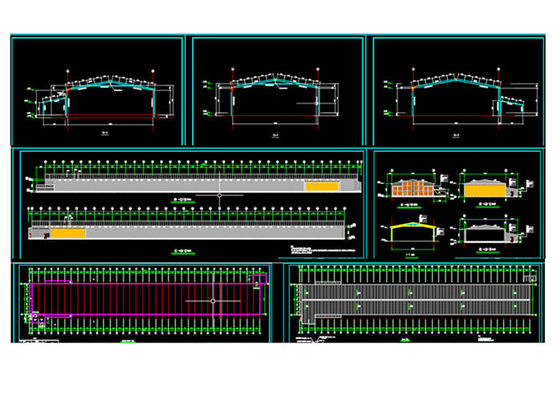

Galvanized Steel Structure Farm Windproof Steel Frame Chicken Coop 2



2. Equipment and Professional Production Line:



The company can produce more than 30 kinds of series products with different structures and specifications. It has complete processing and manufacturing equipment and strong installation capabilities. It can supply a full set of materials required for steel structure construction products, and provide all installation services and technical consultation.



The company has 2 composite board production lines with an annual output of more than 1 million meters; 5 color steel plate production lines with an annual output of 2 million meters; 2 H-beam CNC production lines with an annual output of 20000 tons: One C-beam production line with an annual output of 2500 tons; One Z-Beam steel production line with an annual output of 2,000 tons.



In addition to various section-steel products, it can also manufacture color steel sheets, composite panels, lighting panels, ventilators, etc. machines and over 25 type of corrugated steel sheet machines. Our production capacity is about 60,000tons steel structure per year.



10,000 tons of C and Z section steel, 1.2 million square meter sandwich panel, 8,000 ton of corrugated steel sheet and per year. Our quality control team has strictly worked according to our Inspection Test Processing to insure the quality.



3.Design and Management Ability:



We engineers they are familiar with the all kinds of steel structure design and all the detailed drawings. Our engineer team is a very experienced and efficient team. They understand customer’s requirements and giving the accurately design to save the client’s time.



4. We provide professional installation team and we also can send our engineer in installation guidance service.

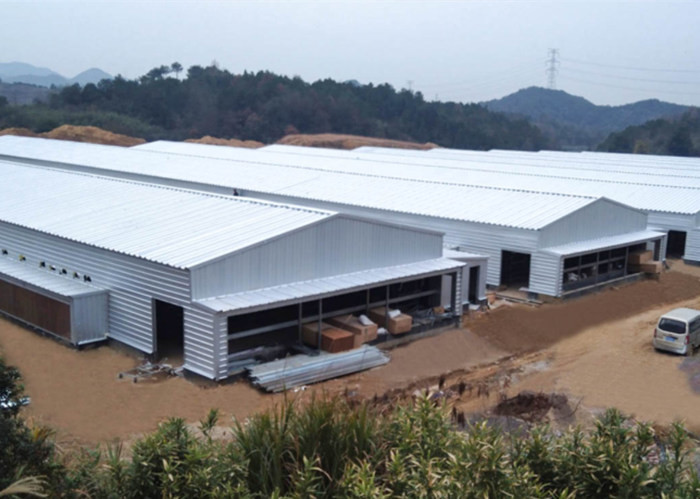

Galvanized Steel Structure Farm Windproof Steel Frame Chicken Coop 3
