Q235B / Q355B Steel Structure Farm Chicken House Fireproof GB

500 square meter
MOQ
$220 - $330 per square meter
Price
Q235B / Q355B Steel Structure Farm Chicken House Fireproof GB
Features Gallery Product Description Request A Quote
Features
Specifications
Application: Steel Structure Farm
Material: Q235B Q355B
Standard: GB (China Standard)
Building Area: 1728㎡
Size: 96m*18m*3.5m
Feature: Fireproof
High Light:

Q235B Steel Structure Farm

,

Q355B Steel Structure Farm

,

Steel Structure Chicken House Fireproof

Basic Infomation
Place of Origin: China
Brand Name: QCX
Certification: ISO 9001, CE certificate of quality system
Model Number: Steel Structure Farm
Payment & Shipping Terms
Packaging Details: Steel components are packaged with steel pallets
Delivery Time: 35-45 work days
Payment Terms: L/C, T/T
Supply Ability: 20000 tons/year
Product Description

Q235B / Q355B Steel Structure Farm Chicken House Fireproof GB

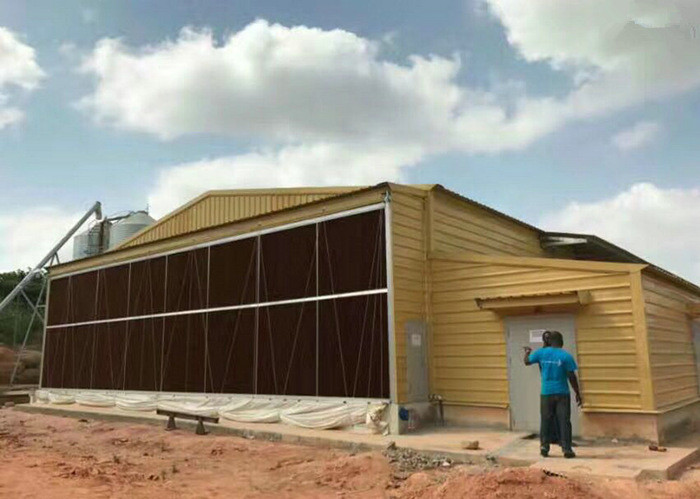

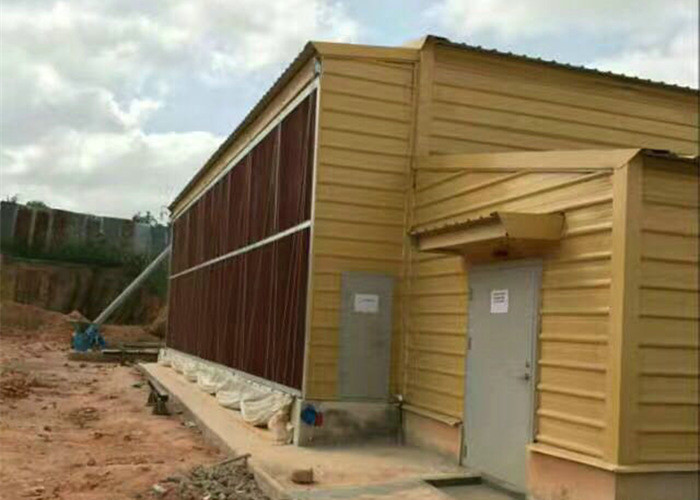

Design of this steel structure farm



With H type 4 tiers layer cage equipment



Project Details:



1.Size:96m*18m*3.5m

2. Steel Column, Beam: I beams with hot dip galvanization

3. Purlin: Galvanization Z Purlins

4. Secondary Support: Galvanization, e.g. Tie Bracing, Bracing Bars, Angle Steels, all these will improve the stability and durability of the whole structural building.

5. Roof Cladding: Color-coated Steel Sheet+ Fiberglass Blanket as insulation+ Inner Steel Sheet

6. Gable Wall: Steel Sheet+ Fiberglass Blanket+ Steel Sheet

7. Side Walls: Steel Mesh

8. Poultry Equipments: Main Feed System, Feeding Line, Nipple Drinking Line, Ventilation, Environmental Control, Heating System, Lighting and Generator

9. Service: Design, Manufacture and Installation on site.



House dimension L (m) 105 W(m) 14 H (m) 4.5
Model HLD-5300 Tier(s) 5 Row(s) 4 Cage unit
/row
42 No. of cage unit 168
Cage Layout Cage(s)/
cage unit
10 Cell(s)
/cage
5 Birds/cell 6 No. of birds 50400
Cage dimension L(mm) 2250 W(mm) 650 H(mm) 435 Area/bird cm² 450
front&end length(m) 3.7 Width of cage(m) 1.71 Feed /day (tons) 6.048 Feed /3 days (tons) 18.144

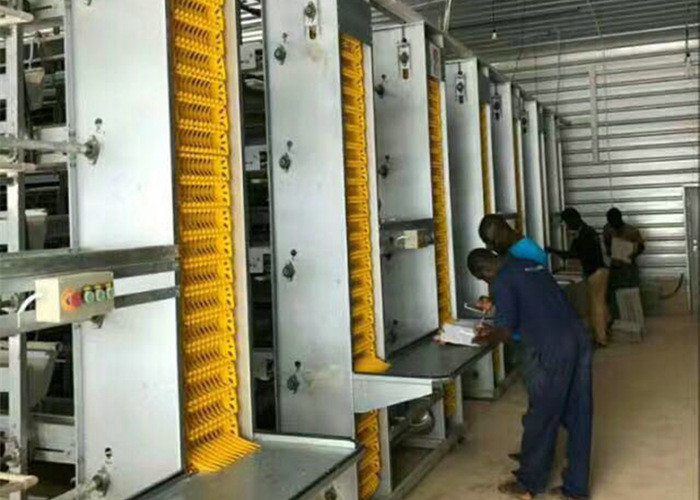

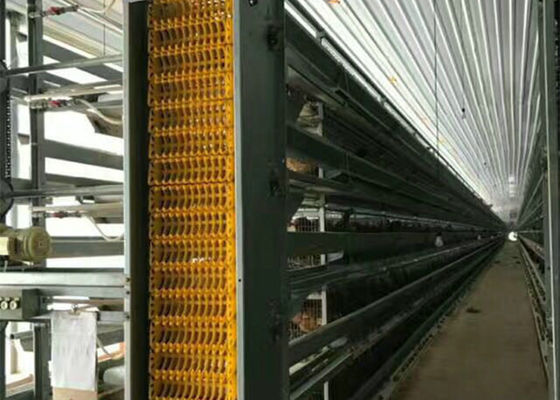

Details of steel structure farm equipment





(1)



Cage and Fittings 笼具系统和配件



(2)



Automatic Feeding system 自动喂料系统



(3)



Automatic manure cleaning system 自动清粪系统



(4)



Egg collecting system 捡蛋系统



(5)



Check the car 检查小车



(6)



Automatic drinking system 自动饮水系统



(7)



Storage, feeding system 储料和上料系统



(8)



Ventilation and temperature control system 通风降温系统



(9)



Electric control system 电气控制系统



(10)



Clean manure belt welding machine 清粪带焊接机



Advantage of steel structure farm



The emergence of high-quality durable light steel structure aquaculture houses promotes the further development of aquaculture scale towards scale, intensification, standardization and modernization, and achieves a good cooperation with automated aquaculture technology.



1. light steel structure aquaculture housing is suitable for cattle, sheep, pigs, rabbits, chickens, ducks, pigeons and so on;
2. light steel structure optimization design, make the structure of the hen house more beautiful, better stability; Make the construction cost more economical;
3. fully galvanized structural materials and aluminized zinc color board materials, to ensure the anti­corrosion and service life of the house;
4. The insulation material is made of high quality glass fiber wool and EPS to ensure the insulation performance and sealing performance of the house;
5. The construction period is more than 2 months shorter than the traditional house, which can accelerate the construction period of the breeding house, reduce the pressure of capital occupation, reduce the risk of market changes, and improve the investment efficiency of the breeding farm.



About our company



1. Experienced in Steel Structure Industry:



Established in 2014, Qingdao Qianchengxin is a high-tech, diversified and export-oriented large­scale international private enterprise, integrating R&D, design, production, installation and construction at home and abroad, and technical services.



It has the qualification certificate of overseas contracted project management issued by the Ministry of Commerce of China, CE certification [EN1090 certificate], 1S09001 certificate, etc, and has long-term cooperation with countries along the" Belt and Road".


The products and construction services have been exported to more than 50 countries around the world, including Asia, Africa, North and South America. In addition, branches have been established in Mozambique and Angola, which can carry out steel structure installation work in Africa.



Q235B / Q355B Steel Structure Farm Chicken House Fireproof GB 0



2. Equipment and Professional Production Line:



The company can produce more than 30 kinds of series products with different structures and specifications. It has complete processing and manufacturing equipment and strong installation capabilities. It can supply a full set of materials required for steel structure construction products, and provide all installation services and technical consultation.



The company has 2 composite board production lines with an annual output of more than 1 million meters; 5 color steel plate production lines with an annual output of 2 million meters; 2 H-beam CNC production lines with an annual output of 20000 tons: One C-beam production line with an annual output of 2500 tons; One Z-Beam steel production line with an annual output of 2,000 tons.



In addition to various section-steel products, it can also manufacture color steel sheets, composite panels, lighting panels, ventilators, etc. machines and over 25 type of corrugated steel sheet machines. Our production capacity is about 60,000tons steel structure per year.



10,000 tons of C and Z section steel, 1.2 million square meter sandwich panel, 8,000 ton of corrugated steel sheet and per year. Our quality control team has strictly worked according to our Inspection Test Processing to insure the quality.



3.Design and Management Ability:



We engineers they are familiar with the all kinds of steel structure design and all the detailed drawings. Our engineer team is a very experienced and efficient team. They understand customer’s requirements and giving the accurately design to save the client’s time.



4. We provide professional installation team and we also can send our engineer in installation guidance service.



Q235B / Q355B Steel Structure Farm Chicken House Fireproof GB 1



Transport of goods





Description




1



All of the steel columns&beams ends and plates will be packed by the blanket to protect them from the crash in the container during the shipment.



2



To make the loading and unloading more efficient and save the delivery cost, 40' HC is preferred for loading the steel frames.



3



All the wall&roof panels will be filmed by two sides and fixed stably in the 40' HC container.



4



All the windows and doors will be protected by bubble-rapping papers and fixed stably in the container.
