Q355 / Q235 Steel Structure Farm Frame Prefab Building Construction GB
About This Steel Structure Warehouse Building

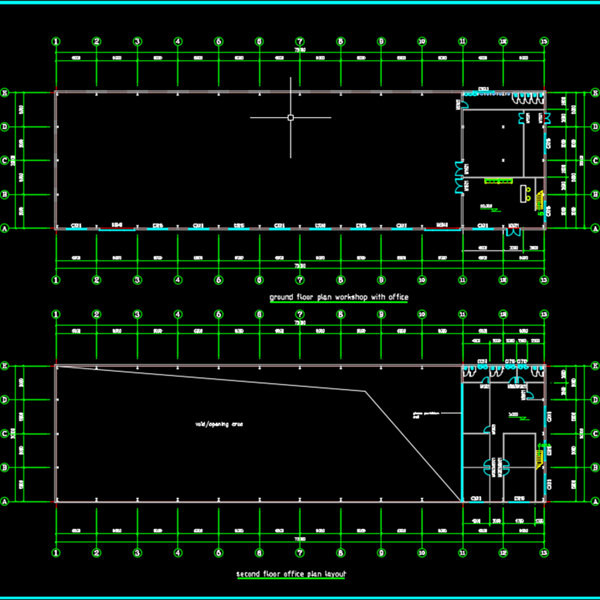

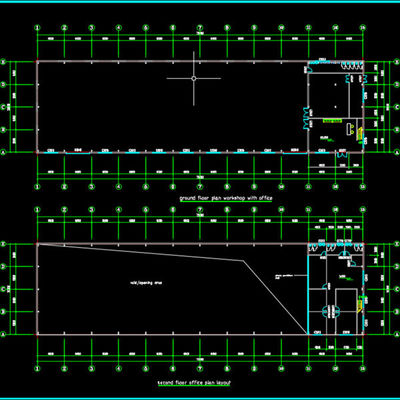

72m*20m*6m warehouse + office.Office warehousing integration, convenient commodity inventory, cargo transportation and customer visit.
The office is divided into two floors, including the staff office, the boss office, the meeting room, the reception room, each floor has a toilet.
Some parts of the outer wall of the office area are glass partition wall, which looks beautiful and atmospheric, but also makes the office environment more comfortable and pleasant.

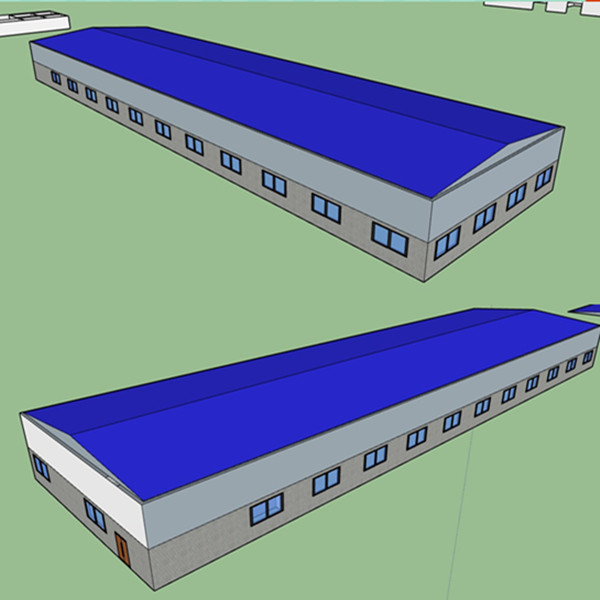

Roof design
Double slope single ridge
The roof slope is 10%, and the outer gutter + φ110UPVC forms a roof drainage system, which can cope with the rainy season
Roof method: 0.5MM color steel plate + 100mm glass wool + steel wire mesh

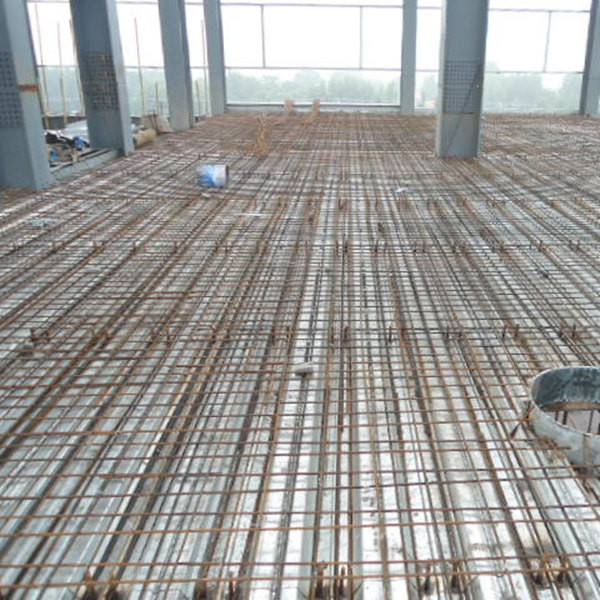

Floor desk for office: V-688 type,1.0mm thickness floor desk
V-688 floor bearing plate has been widely used. Generally used for steel structure of the local two or multi-storey building surface, has the advantages of simple and fast construction, high strength, no need to install and dismantle the mold, multi-storey construction at the same time, while eliminating the roof painting and decoration of the investment and time, a variety of pipelines can also be directly embedded in the board.
Wall design
Wall method: 0.5MM color steel plate + 100mm glass wool + 0.4MM color steel plate
ceiling panel for office:PVC ceiling panel
glass partition wall for office:double layers 5mm thickness tempered glass
partition wall for office: 50mm thickness EPS sandwich panel partition wall
The Details of This Steel Structure Warehouse
|
|
Project location | wind load (m/s) | function |
|
Chad
|
Warehouse | ||
|
|
length (M) | width (M) | height (M) |
|
|
20 | 6 | |
|
|
crane tons (T) | lifting height (M) | crane quantity (set) |
|
|
No | No | |
|
|
mezzanine | insulation | gutter |
|
|
No | Yes | |
|
|
insulation | skylight | ventilation |
|
|
No
|
No | |
|
|
the quantity and size of door (warehouse) | the quantity and size of door (office) | the size of window (M) |
|
rolling door 5m*4m(2 doors)
|
steel door 1.5m*2.1m(4) glass door for office 2m*2.1m(1) steel wooden door for office 0.9m*2.1m(10) |
Al alloy sliding window 3m*1.5m |
Advantages of steel construction
Prefab steel Structure workshop buildings are used for industrial production in which all steel structures are painted and then delivered to the project site for installation. And because the steel structure can be manufactured in the factory and installed on-site, the construction time is significantly reduced. ,
Due to the steel it can dramatically reduce construction waste and is more environmentally friendly. Therefore, it widely used in industrial buildings and civil buildings.
About our company
1. Established in 2014, Qingdao Qianchengxin is a high-tech, diversified and export-oriented largescale international private enterprise, integrating R&D, design, production, installation and construction at home and abroad, and technical services.
It has the qualification certificate of overseas contracted project management issued by the Ministry of Commerce of China, CE certification [EN1090 certificate], 1S09001 certificate, etc, and has long-term cooperation with countries along the" Belt and Road".
The products and construction services have been exported to more than 50 countries around the world, including Asia, Africa, North and South America. In addition, branches have been established in Mozambique and Angola, which can carry out steel structure installation work in Africa.
2. Equipment and Professional Production Line:
The company can produce more than 30 kinds of series products with different structures and specifications. It has complete processing and manufacturing equipment and strong installation capabilities. It can supply a full set of materials required for steel structure construction products, and provide all installation services and technical consultation.
The company has:
|
2 composite board production lines
|
more than 1 million meters/year |
|
5 color steel plate production lines
|
2 million meters/year |
|
2 H-type steel CNC production lines
|
20000 tons/year |
|
1 C-type steel production line
|
2500 tons/year |
|
1 Z-steel production line
|
2,000 tons/year |
3.Design and Management Ability:
We engineers they are familiar with the all kinds of steel structure design and all the detailed drawings. Our engineer team is a very experienced and efficient team. They understand customer’s requirements and giving the accurately design to save the client’s time.
4. We provide professional installation team and we also can send our engineer in installation guidance service.
