Low Cost Large Light Steel Structure Building Can Be Customized Steel Structure Warehouse Workshop
Introduction, use and advantages of steel structure:
Steel structure is a new type of building structure system, which is formed by the main steel framework linked by H-section, Z-section, and U-section steel components or any other product shape according to customer's requirements, roof and walls using a variety of panels and other components such as windows and doors.
Light steel structure building is widely used in warehouses, workshops, large factories, commercial building, car parking system, agricultural storage shed, livestock house, poultry house and so on.
Steel structure buildings have the advantages of light weight, strong applicability, beautiful appearance, low cost, easy maintenance, short construction period and high accuracy.

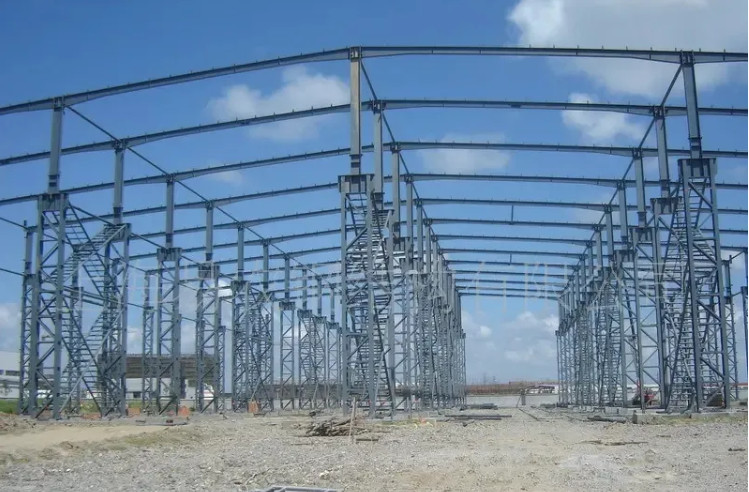

Warehouse case
Use steel structure to build warehouse, which can use more area
The construction period is shorter, the construction is more convenient, and the investment cost is greatly reduced.
Steel structure building is the trend of future development. This material and this emerging housing construction structure have greatly improved the aesthetics of the project and its performance. The aesthetics of some warehouses can also take a new level on the basis of their guaranteed practicality.
|
|
|
|
Main Steel Frame
|
Column
|
Q235, Q355 Welded H Section Steel
|
|
Beam
|
Q235, Q355 Welded H Section Steel
|
|
Secondary Frame
|
Purlin
|
Q235 C and Z purlin
|
|
Knee brace
|
Q235 Angle Steel
|
|
Tie Rod
|
Q235 Circular Steel Pipe
|
|
Brace
|
Q235 Round Bar
|
|
Vertical and Horizontal Support
|
Q235 Angle Steel, Round Bar or Steel Pipe
|
|
Maintenance system
|
Roof Panel
|
EPS Sandwich Panel / Glass Fiber Sandwich Panel /
Rock Wool Sandwich Panel / Pu Sandwich Panel /Steel sheet
|
|
Wall Panel
|
Sandwich Panel / Corrugated Steel Sheet
|
|
Accessories
|
Window
|
Aluminiumn Alloy Window / PVC Window / Sandwich Panel Window
|
|
Door
|
Sliding Sandwich Panel Door / Rolling Metal Door / Personal Door
|
|
Rainspout
|
PVC
|
|
Live load on Roof
|
In 120kg/Sqm (Color steel panel surrounded)
|
|
Wind Resistance Grade
|
12 Grades
|
|
Earthquake-resistance
|
8 Grades
|
|
Structure Usage
|
Up to 50 years
|
|
Finishing Options
|
Vast array of colors and textures available
|
|
Paint Options
|
Alkyd paiting, two primary painting, two finish painting
(gray paint, red paint, white paint, epoxy zinc etc.) Or Galvanized.
|
How to get a quote
If you have drawings, welcome to share the drawings with us, the quotation will be done according to your drawings. Our excellent design team will If you need, we will design the steel structure factory warehouse for you. Please provide the following information, we will give you satisfactory drawings
1,country, city, area
2,Purpose and your specific requirements
Steel structure livestock shed
The steel structure can build chicken pens, cowsheds, pig pens, etc.
Cheap, prefabricated buildings can be transported to the construction site for assembly after factory production, which solves the needs of a variety of workers and reduces labor costs.
The construction period is short, the construction speed is fast, and the climatic conditions are less restricted, which saves labor and can significantly improve the construction quality.
The technical requirements of workers are low, and they only need to be assembled according to the assembly drawings during the construction process.
Steel structure building is the trend of future development. This material and this emerging housing construction structure have greatly improved the aesthetics of the project and its performance.

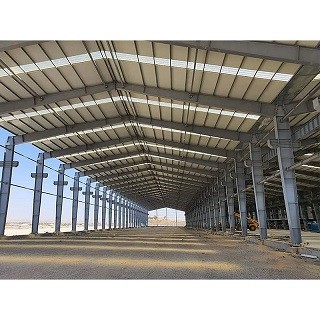

Workshop case
The steel structure workshop is mainly composed of steel, including steel columns, steel beams, steel structure foundations, steel roof trusses and steel roofs.
The characteristics of the steel structure workshop are: 1. The steel structure building is light in weight, high in strength and large in span. 2. The construction period of the steel structure is short, and the investment cost is correspondingly reduced. 3. Steel structure buildings have high fire resistance and corrosion resistance.
Steel structure building is the trend of future development. This material and this emerging housing construction structure have greatly improved the aesthetics of the project and its performance.
Gym case
As a future green building, steel structures are widely used in large public places, gymnasiums, canopies, carports, gas stations, etc. Among them, the beautiful shape of the gymnasium has been widely recognized and loved. The gymnasium built with steel structure has high strength, excellent plasticity and toughness. Green and environmentally friendly, recyclable Uniform material, high safety and reliability. Factory production, high degree of industrialization, fast construction speed.
Steel structure building is the trend of future development. This material and this emerging housing construction structure have greatly improved the aesthetics of the project and its performance.
Related Product
Our prefabricated steel structure buildings are pre-cut, pre-drilled, and ready for quick and efficient assembly. Steel buildings work for virtually any building application:Agricultural/ Barns/ Aircraft Hangars/ Welding Shops/ Commercial center/ Garages/ Storage/ Suburban Buildings/ Warehouses/ Workshops etc.
Our Advantages:
1,Professional and efficient designer teams
2,Collectivize and largescale production
3,Professional and efficient installation of the construction
4,International quality control system
Our Services
1>. Professional
Our campany was founded in 2014. Since then, we have been a professional manufacturer of steel structure building,container house,prefabricated house ,sandwich panel and color steel sheet with ISO9001 certification.
2>. Quality Management
Quality control and stability: Applied with high quality, each product is produced under strict quality control at every manufacturing process from raw materials to final testing which ensures our products come with perfect performance.
3>. Excellent after-sales service
Our customer service team Offers you Pre-sales and after-sales service.
4>. OEM/ODM available:
1). Customized design;
2). Customized dimension;
3). Customized brand package.
FAQ
1.Are you a manufacture or trading company?
- We are a comprehensive and trade enterprises. We have our own factory. You can get the best price and competitive price. And you are welcome to visit us at any time .
2)What’s the quality assurance you provided and how do you control quality ?
-Established a procedure to check products at all stages of the manufacturing process - raw materials, in process materials, validated or tested materials, finished goods, etc.
3) Do you provide installation on site overseas for steel structure buildings?
- Yes, we usually provide detailed installation drawings and installation methods for free. If you need, we can provide the service of installation, supervision and training by extra. We also can send our professional technical engineer to supervise installation on site overseas.
4)What's the quality grade of the steel structure components?
- Q345B is used for main steel structure, Q235B is used for secondary steel structure.
5).How about the derust grade?
Reply:Ball blasting Sa2.5 on main steel structure manual derust St2.0 on secondary steel structure.
Company Profile:
Established in 2014, the company is a high-tech, diversified and export-oriented large-scale international
private enterprise integrating R&D, design, production, installation and construction at home and abroad,
and technical services.
It has the qualification certificate of overseas contracted project management issued by the Ministry of
Commerce of China, CE certification [EN1090 certificate], IS09001 certificate, etc, and has long-term
cooperation with countries along the " Belt and Road".
The products and construction services have been exported to more than 50 countries around the world,
including Asia, Africa, North and South America. In addition, branches have been established in
Mozambique and Angola, which can undertake steel structure installation projects in Africa.
