Q355B Prefabricated Light Steel Frame House Grid Steel Structure Shed Workshop

5000 ㎡
MOQ
50-70usd/ ㎡
Price
Q355B Prefabricated Light Steel Frame House Grid Steel Structure Shed Workshop
Features Gallery Product Description Request A Quote
Features
Specifications
Material: Q355B
Structural Form: Grid Steel Structure
Color: White Grey,Blue,Red,Customized
Dimension: Customized ≥5000㎡
Warranty Period: 50 Years
Type: Light,Heavy,Light Steel Struture,Structural Steel Warehouse,Large Warehouse
Product Name: Prefabricated Light Steel Frame Shed Workshop Warehouse Steel Structure Customized
Door: Dimension(WxH) And Position
High Light:

Q355B Prefabricated Light Steel Frame House

,

Prefabricated Light Steel Frame House Grid

,

Steel Structure Shed Workshop

Basic Infomation
Place of Origin: Qingdao,China
Brand Name: QCX
Certification: ISO 9001, CE certificate of quality system
Model Number: Dimension Customized
Payment & Shipping Terms
Packaging Details: PALLETS,CASES,CARTONS
Delivery Time: 30-60DAYS
Payment Terms: T/T, L/C
Supply Ability: 2000T/M
Product Description

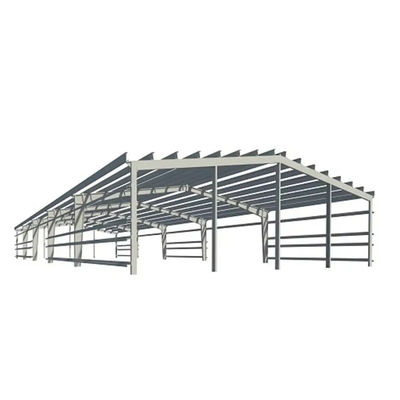

Q355B Prefabricated Light Steel Frame House Grid Steel Structure Shed Workshop



Introduction, use and advantages of steel structure:



Steel structure is a new type of building structure system, which is formed by the main steel framework linked by H-section, Z-section, and U-section steel components or any other product shape according to customer's requirements, roof and walls using a variety of panels and other components such as windows and doors.



Light steel structure building is widely used in warehouses, workshops, large factories, commercial building, car parking system, agricultural storage shed, livestock house, poultry house and so on.



Steel structure buildings have the advantages of light weight, strong applicability, beautiful appearance, low cost, easy maintenance, short construction period and high accuracy.




Products Description



STEEL STURCTURE

Steel structure building ware-house/workshop is a new type of light steel structure building system formed from a main steel framework comprised of H section, Z section and U section steel components, the roof and walls utilizing a variety of panels andother components such as windows, doors, and cranes.
Q355B Prefabricated Light Steel Frame House Grid Steel Structure Shed Workshop 0
Item
Specifications
Main Steel Frame
Column
Q235, Q235B, , Q355BWelded H Section Steel
Beam
Q235, Q235B, Q355, Q355BWelded H Section Steel
Secondary Frame
Purlin
Q235 C and Z purlin
Knee brace
Q235 Q355 Angle Steel
Tie Rod
Q235 Q355 Circular Steel Pipe
Brace
Q235 Q355 Round Bar
Vertical and Horizontal Support
Q235 Q355 Angle Steel, Round Bar or Steel Pipe
Maintenance system
Wall and roof
Corrugated Steel Sheet/EPS Sandwich Panel / Glass Fiber Sandwich Panel / Rock Wool Sandwich Panel / Pu Sandwich Panel /Steel Sheet
Accessories
Window
1.Sliding window
2.Plastic-steel frame or aluminum frame
3.According to your requirementsWindow
Door
1.Roller door
2.Sliding door and sidewall door
3.Steel sheet, sandwich panel or aluminum-alloy.
4.According to your requirements
Gutter
1.Aluminum-zinc steel sheet
2.Stainless sheet
Rainspout
PVC
Surface Treatment
Hot dipped galvanized or Painted
Wind Resistance Grade
12 Grades
Earthquake-resistance
8 Grades
Structure Usage
Up to 50 years



Product Description





Storage buildings industrial warehouse building construction cost
Pre engineered building structure steel industrialSpecifications:
Main Steel: Q355, Q355B
Column & Beam: Welded or Hot rolled H-section
Connection method of steel structure: Welding connection or bolt connection
Wall & Roof: Sandwich panel or steel steet.
Door: Rolled up door or Sliding door
Window: Plastic steel or Aluminum alloy window
Surface: Hot dip galvanized or painted
Crane: 5MT, 10MT, 15MT and more
Drawings & Quotation:
1) Customized design is welcomed.
2) In order to give you an exactly quotation and drawings, please let us know length, width, eave height and local weather. We will quote for you promptly.

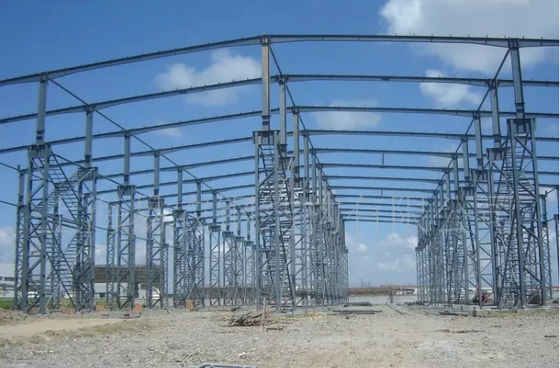

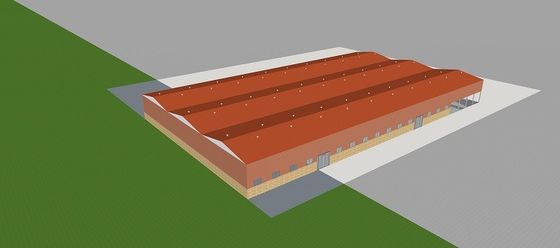

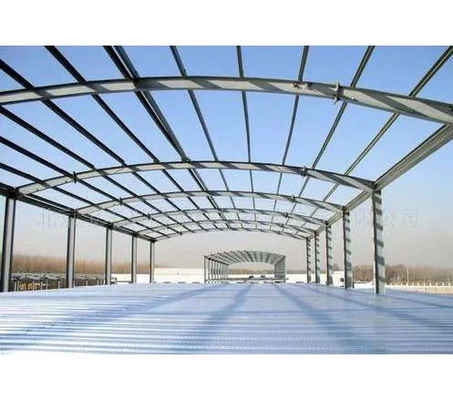

gable frame light metal building prefabricated industrial steel structure warehouse
Storage Buildings Industrial Warehouse Building Construction Cost






Q355B Prefabricated Light Steel Frame House Grid Steel Structure Shed Workshop 2
Q355B Prefabricated Light Steel Frame House Grid Steel Structure Shed Workshop 3
Advantages of our products:

1) Cost saving and transportation convenient, custom design available steel building
2) The main beam and column are made of quality steel material Q355B Q345B Q235B steel structure workshop
3) Steel structure makes the house resist heavy wind of 180km/h and 9-grade earthquake steel structures
4) Easy assembly and disassembly several times without damage steel structure shed
5) Widely used in construction site, office building, dormitory etc. steel structures
6) Good environmental protection effect. Steel structure housing construction greatly reduces sand, stone and dosage of the
ash.Most of the used materials are recyclable or degradable, little rubbish produced steel frame structure.
Application
Q355B Prefabricated Light Steel Frame House Grid Steel Structure Shed Workshop 4
Packing&Delivery
Q355B Prefabricated Light Steel Frame House Grid Steel Structure Shed Workshop 5



Product packaging:



1. Steel components are packaged with steel pallets at the factory with the coding number, which is convenient for customers to unload; small steel structures are bundled with iron wires and hung with tags.


2. Fasteners are packed in wooden cases


3. The upper layer of the color-coated roof and wall panel is covered with plastic film, and the maintenance edge is wrapped with plastic film and labelled.


4. Container type: 40ft HC, 20ft GP





Q355B Prefabricated Light Steel Frame House Grid Steel Structure Shed Workshop 6



New design steel structure factory/warehouse

Related Product





Our prefabricated steel structure buildings are pre-cut, pre-drilled, and ready for quick and efficient assembly.



Steel buildings work for virtually any building application:Agricultural/ Barns/ Aircraft Hangars/ Welding Shops/ Commercial center/ Garages/ Storage/ Suburban Buildings/ Warehouses/ Workshops etc.





New design steel structure factory/warehouse

New design steel structure factory/warehouse

Our Advantages:

1,Professional and efficient designer teams

2,Collectivize and largescale production

3,Professional and efficient installation of the construction

4,International quality control system

Our Services







FAQ



1.Are you a manufacture or trading company?


- We are a comprehensive and trade enterprises. We have our own factory. You can get the best price and competitive price. And you are welcome to visit us at any time .



2)What’s the quality assurance you provided and how do you control quality ?



-Established a procedure to check products at all stages of the manufacturing process - raw materials, in process materials, validated or tested materials, finished goods, etc.



3) Do you provide installation on site overseas for steel structure buildings?



- Yes, we usually provide detailed installation drawings and installation methods for free. If you need, we can provide the service of installation, supervision and training by extra. We also can send our professional technical engineer to supervise installation on site overseas.



4)What's the quality grade of the steel structure components?


- Q345B is used for main steel structure, Q235B is used for secondary steel structure.



5).How about the derust grade?



Reply:Ball blasting Sa2.5 on main steel structure manual derust St2.0 on secondary steel structure.





Company Profile:



Established in 2014, the company is a high-tech, diversified and export-oriented large-scale international

private enterprise integrating R&D, design, production, installation and construction at home and abroad,

and technical services.



It has the qualification certificate of overseas contracted project management issued by the Ministry of

Commerce of China, CE certification [EN1090 certificate], IS09001 certificate, etc, and has long-term

cooperation with countries along the " Belt and Road".



The products and construction services have been exported to more than 50 countries around the world,

including Asia, Africa, North and South America. In addition, branches have been established in

Mozambique and Angola, which can undertake steel structure installation projects in Africa.





Q355B Prefabricated Light Steel Frame House Grid Steel Structure Shed Workshop 10





Products& Services:
Q355B Prefabricated Light Steel Frame House Grid Steel Structure Shed Workshop 11



Qualification certificates:

Q355B Prefabricated Light Steel Frame House Grid Steel Structure Shed Workshop 12



Philosophy& Vision:

Q355B Prefabricated Light Steel Frame House Grid Steel Structure Shed Workshop 13
