Construction Metal Warehouse Workshop Steel Structure Prefab Building
Introduction, use and advantages of steel structure:
Steel structure is a new type of building structure system, which is formed by the main steel framework linked by H-section, Z-section, and U-section steel components or any other product shape according to customer's requirements, roof and walls using a variety of panels and other components such as windows and doors.
Light steel structure building is widely used in warehouses, workshops, large factories, commercial building, car parking system, agricultural storage shed, livestock house, poultry house and so on.
Steel structure buildings have the advantages of light weight, strong applicability, beautiful appearance, low cost, easy maintenance, short construction period and high accuracy.
Basic Info.
Model NO.
industrial warehouse building construction
Connection Form
Bolt Connection
Type of Steel For Building Structure
High-Strength Steel
Carbon Structural Steel
Q235
Residential Wall Structure
Pre Engineered Building Structure Steel Industrial
Application
Steel Workshop, Steel Structure Platform, Steel Fabricated House, Structural Roofing, Frame Part, Steel Walkway and Floor, Steel Structure Bridge, Warehouse, Workshop, Plant, Factory, Shed, Hangar,
Name
Gable Frame Light Metal Building Prefabricated Ind
Application Feild
Modern Prefab Commercial Prefabricated Industrials
Main Steel Frame
Steel Column, Beam, Purlin and Bracing
Certificate
CE/ISO9001/ASTM
Material Steel
Q345 and Q235 Welded Steel Structure
Building Application
Agricultural, Industrial, Commercial, Residential
Roof and Wall
Insulated Sandwich Panel and PPGI Sheet
Insulated Wall Material
EPS/ Mineral Wool/PU Sandwich Panel
Purlin
C.Z Shape Steel Channel
Door and Window
PVC or Aluminum Alloy/ Sliding Door or Rolled Door
Drawing Design
Autocad Pkpm 3D3s
Beam
Welded/ Hot Rolled H Beam
Original
China Factory Manufacturer Supply
Windows and Doors
Insulated PVC Windows and Doors
Transport Package
Standard Sea Package for Economical Solution
Specification
Prefab light steel structure warehouse hangar
Production Capacity
10000 Tons/Month
Storage buildings industrial warehouse building construction cost
Pre engineered building structure steel industrialSpecifications:
| Main Steel: |
Q355, Q355B |
| Column & Beam: |
Welded or Hot rolled H-section |
| Connection method of steel structure: |
Welding connection or bolt connection |
| Wall & Roof: |
Sandwich panel or steel steet. |
| Door: |
Rolled up door or Sliding door |
| Window: |
Plastic steel or Aluminum alloy window |
| Surface: |
Hot dip galvanized or painted |
| Crane: |
5MT, 10MT, 15MT and more |
| Drawings & Quotation: |
| 1) Customized design is welcomed. |
2) In order to give you an exactly quotation and drawings, please let us know length, width, eave height and local weather. We will quote for you promptly.
gable frame light metal building prefabricated industrial steel structure warehouse |

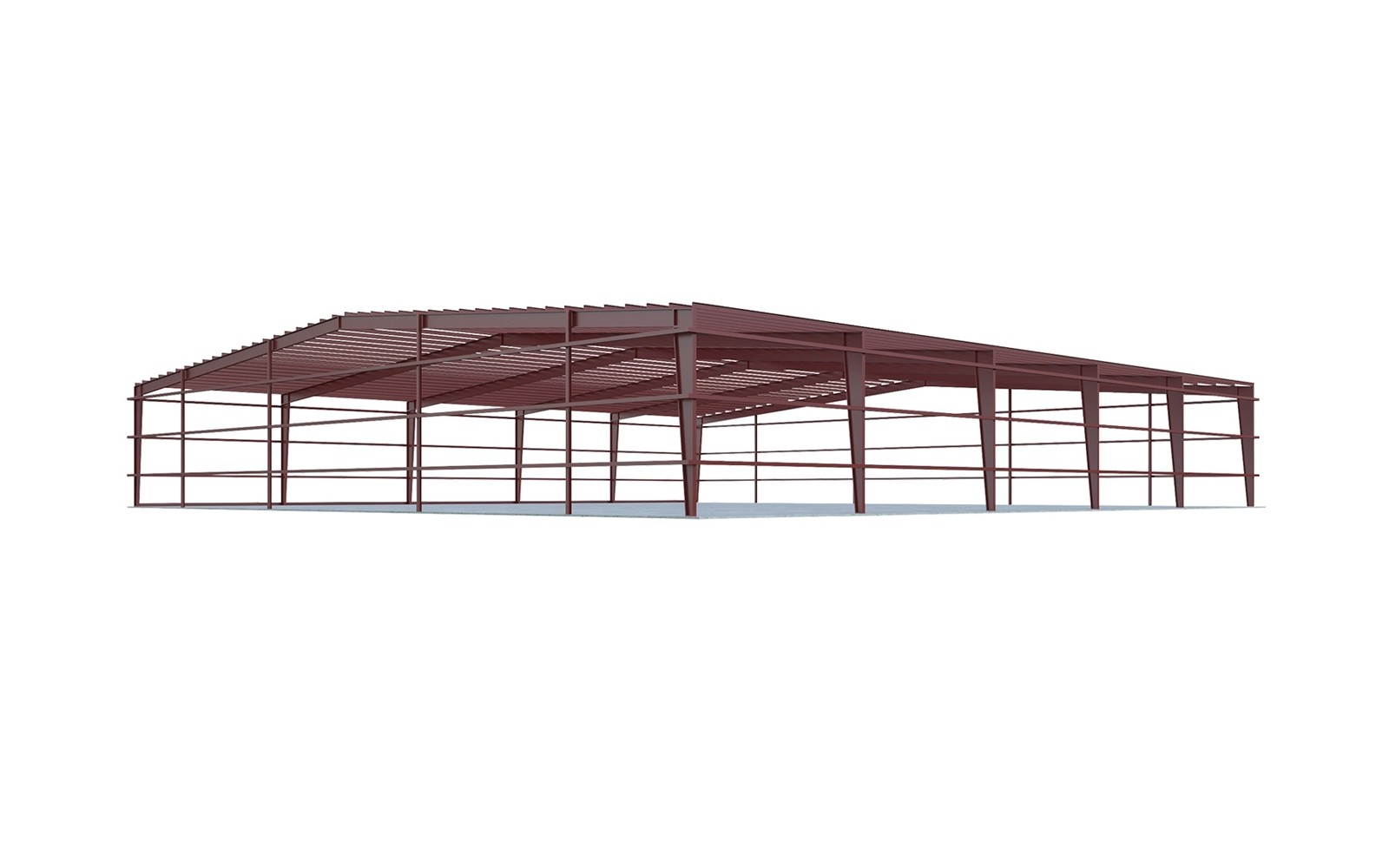

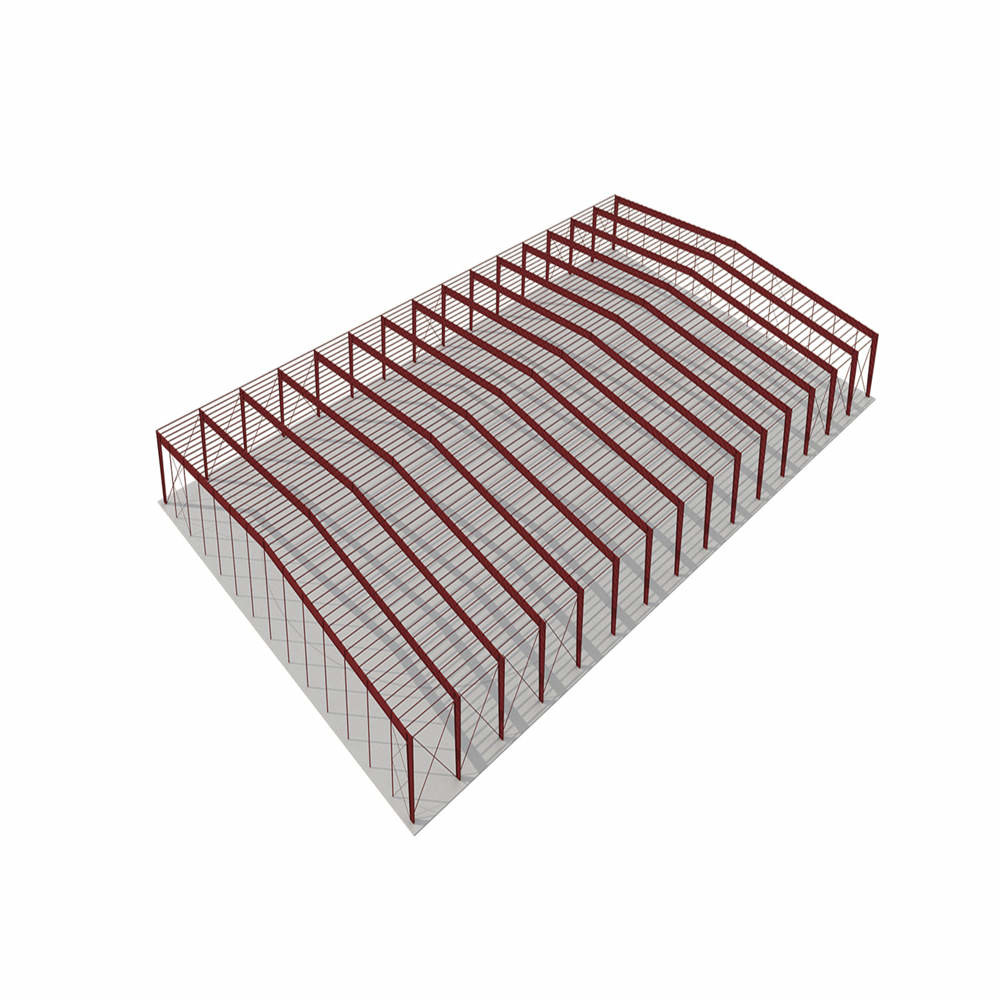

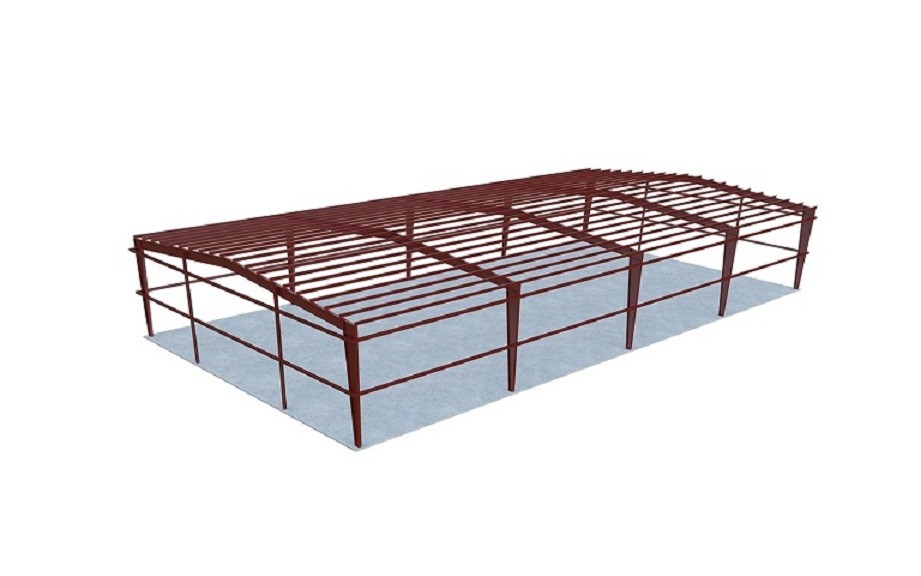

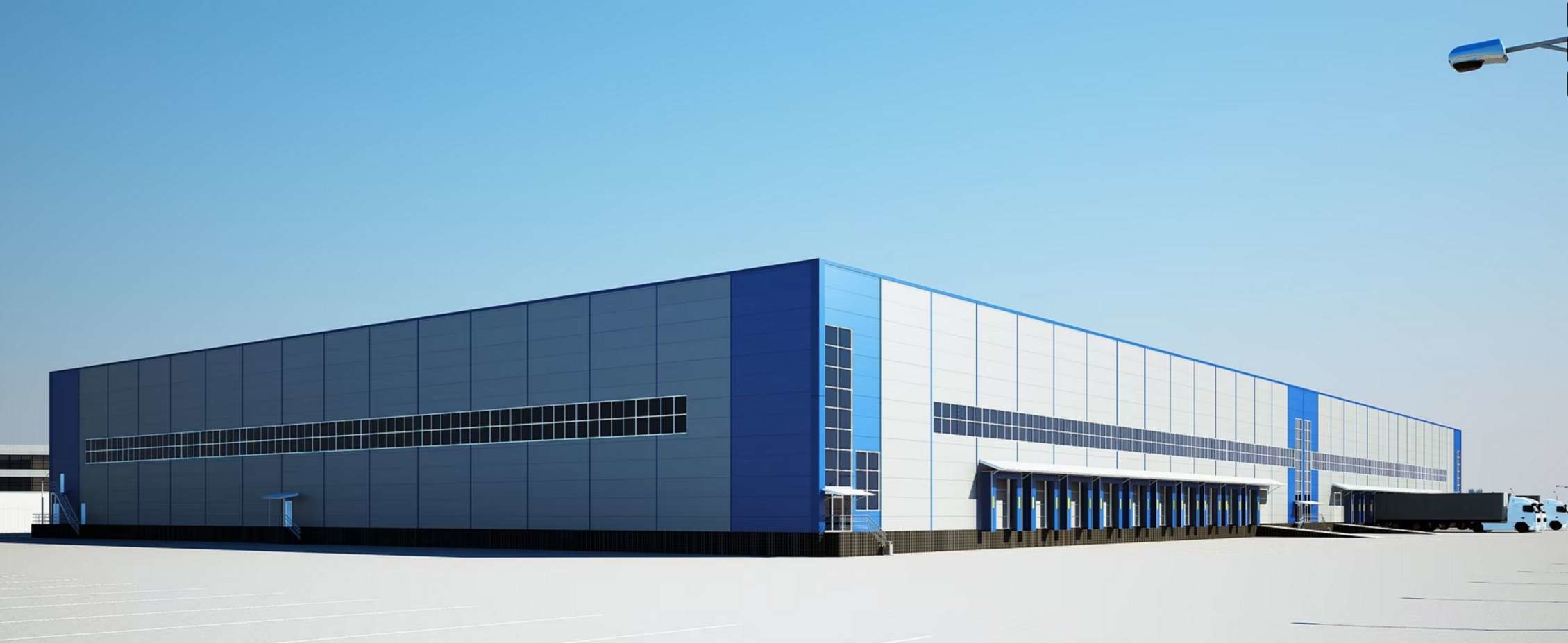

Detailed Images:
Shipment
Normal the goods will be shipped by use 40’ open top container and 40’ HQ container. If use 40’HQ, it need to do a steel pallet to pack the goods, then the whole pallet cargo will be pushed into container together, when you unload the goods, you wold pull the whole pallet out of the container. In this case, the ocean freight will be cheaper, but will increase the cost of pallet.
Regarding the open top containers, all the goods will be loaded one by one. In this case, the sea freight of 40’OT is higher than 40’HQ, but The steel pallet for 40’HQ need to be charged. You can tell me your prefer.
FAQ
1.Are you a manufacture or trading company?
- We are a comprehensive and trade enterprises. We have our own factory. You can get the best price and competitive price. And you are welcome to visit us at any time .
2)What’s the quality assurance you provided and how do you control quality ?
-Established a procedure to check products at all stages of the manufacturing process - raw materials, in process materials, validated or tested materials, finished goods, etc.
3) Do you provide installation on site overseas for steel structure buildings?
- Yes, we usually provide detailed installation drawings and installation methods for free. If you need, we can provide the service of installation, supervision and training by extra. We also can send our professional technical engineer to supervise installation on site overseas.
4)What's the quality grade of the steel structure components?
- Q345B is used for main steel structure, Q235B is used for secondary steel structure.
5).How about the derust grade?
Reply:Ball blasting Sa2.5 on main steel structure manual derust St2.0 on secondary steel structure.
Company Profile:
Established in 2014, the company is a high-tech, diversified and export-oriented large-scale international
private enterprise integrating R&D, design, production, installation and construction at home and abroad,
and technical services.
It has the qualification certificate of overseas contracted project management issued by the Ministry of
Commerce of China, CE certification [EN1090 certificate], IS09001 certificate, etc, and has long-term
cooperation with countries along the " Belt and Road".
The products and construction services have been exported to more than 50 countries around the world,
including Asia, Africa, North and South America. In addition, branches have been established in
Mozambique and Angola, which can undertake steel structure installation projects in Africa.
