Modern Prefab Commercial Prefabricated Industrial Warehouse Building

5000 ㎡
50-70usd/ ㎡
Modern Prefab Commercial Prefabricated Industrial Warehouse Building
Features Gallery Product Description Request A Quote
Material: Steel
Color: White Grey,Blue,Red,Customized
Warranty Period: 50 Years
Type: Lightweight,Heavy,Light Steel Struture,Structural Steel Warehouse,Large Warehouse
Structure: Structure
Warehouse Type: Warehouse
Beam: Hot Rolled/Welded H Section Steel
Bracing: Round Bar/Angle Steel/Steel Rod
Column: Hot Rolled/Welded H Section Steel
Door: Roller Door/Sliding Door/Swing Door/Folding Door
Downpipe: PVC/Stainless Steel
Gutter: Stainless Steel/Color Steel Sheet
Purlin: C/Z Section Steel
Roof: Single Slope/Double Slope/Multi-Slope/Curved
Size: Customized
Surface: Painted/Hot Dip Galvanized
Wall: Sandwich Panel/Color Steel Sheet/Aluminum Veneer/Brick
Warehouse: Warehouse
Window: Aluminum Alloy/PVC/Wood
High Light:

Prefabricated Industrial Warehouse Building


Prefab Industrial Warehouse Building

Basic Infomation
Place of Origin: Qingdao,China
Brand Name: QCX
Certification: ISO 9001, CE certificate of quality system
Model Number: Dimension Customized
Payment & Shipping Terms
Delivery Time: 30-60DAYS
Payment Terms: T/T, L/C
Supply Ability: 2000T/M
Product Description

Modern Prefab Commercial Prefabricated Industrial Warehouse Building


Introduction, use and advantages of steel structure:


Welcome to QCX steel structure
* Design manufacture installation of steel structure workshop/warehouse/hangar/shed/poultry farm/livestock farm
* More information, Please visit our home page. Main Steel Frame: Column---Q235, Q355 Welded H Section Steel
Beam---Q235, Q355 Welded H Section Steel Secondary Frame:
Purlin---Q235 C and Z purlin
Knee brace--- Q23S Angle Steel
Tie Rod--- Q235 Circular Steel Pipe
Brace --- Q235 Round Bar
Vertical and Horizontal Support--- Q235 Angle Steel,Round Bar or Steel Pipe
Maintenance system: Roof Panel---EPS Sandwich Panel/ Glass Fiber Sandwich Panel
Rock Wool Sandwich Panel/ Pu Sandwich Panel/Stee Sheet Wall Panel---Sandwich Panel/ Corrugated Steel Sheet Accessories:
Window --- Aluminiumn Alloy Window/PVC Window /Sandwich Panel Window
Door ---Sliding Sandwich Panel Door/ Rolling Metal Door /Personal Door
Rainspout---PVC Live load on Roof ln 120kg/Sqm (Color steel panel surrounded) Wind Resistance Grade 12 Grades Earthquake-resistance 8 Grades Structure Usage Up to 50 years Finishing Options Vast array of colors and textures available

Product Description



Storage buildings industrial warehouse building construction cost
Pre engineered building structure steel industrialSpecifications:
Main Steel: Q355,   Q355B
Column & Beam: Welded or Hot rolled H-section
Connection method of steel structure: Welding connection or bolt connection
Wall & Roof: Sandwich panel or steel steet.
Door: Rolled up door or Sliding door
Window: Plastic steel or Aluminum alloy window
Surface: Hot dip galvanized or painted
Crane: 5MT, 10MT, 15MT and more
Drawings & Quotation:
1) Customized design is welcomed.
2) In order to give you an exactly quotation and drawings, please let us know length, width, eave height and local weather. We will quote for you promptly.
gable frame light metal building prefabricated industrial steel structure warehouse
Storage Buildings Industrial Warehouse Building Construction Cost


Detailed Images:

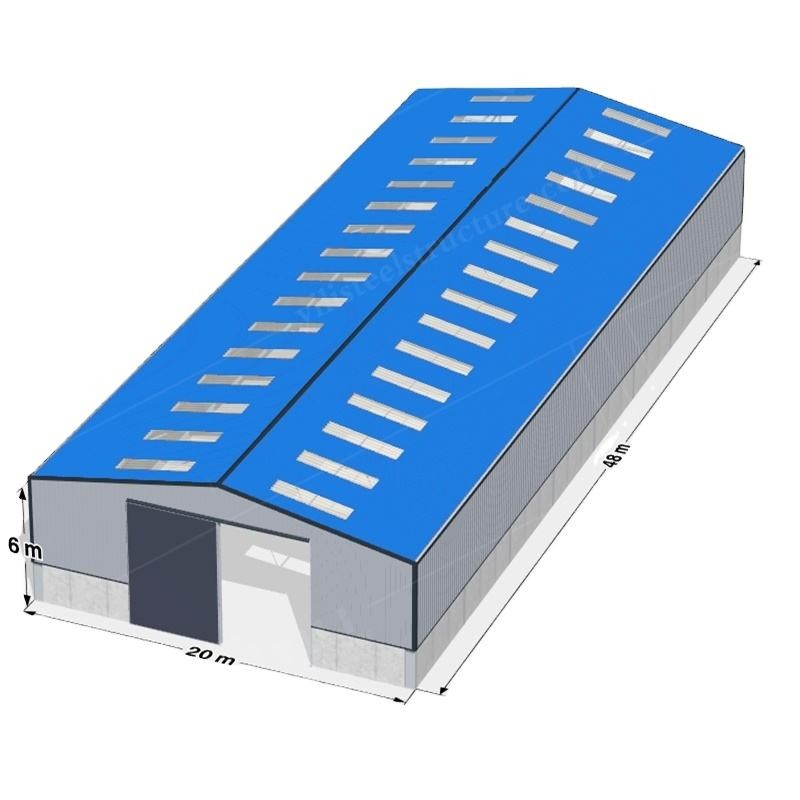

Modern Prefab Commercial Prefabricated Industrial Warehouse Building 1

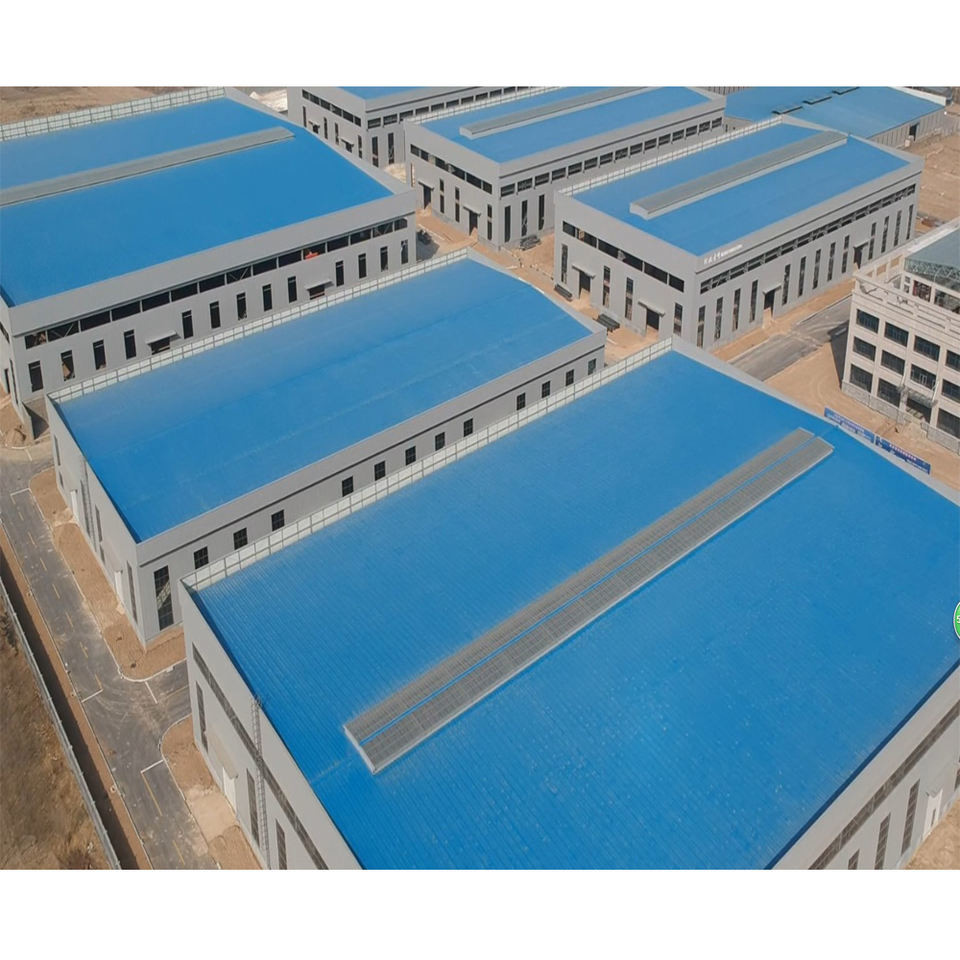

Modern Prefab Commercial Prefabricated Industrial Warehouse Building 2

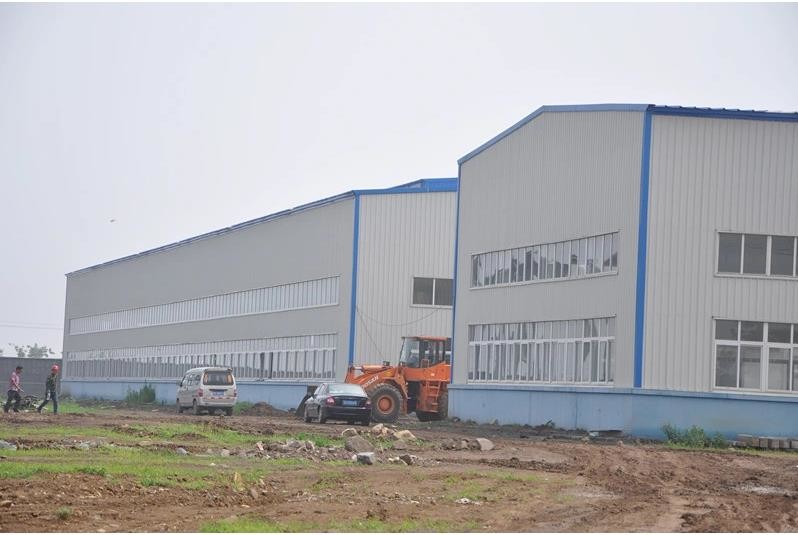

Modern Prefab Commercial Prefabricated Industrial Warehouse Building 3
Packing & Delivery

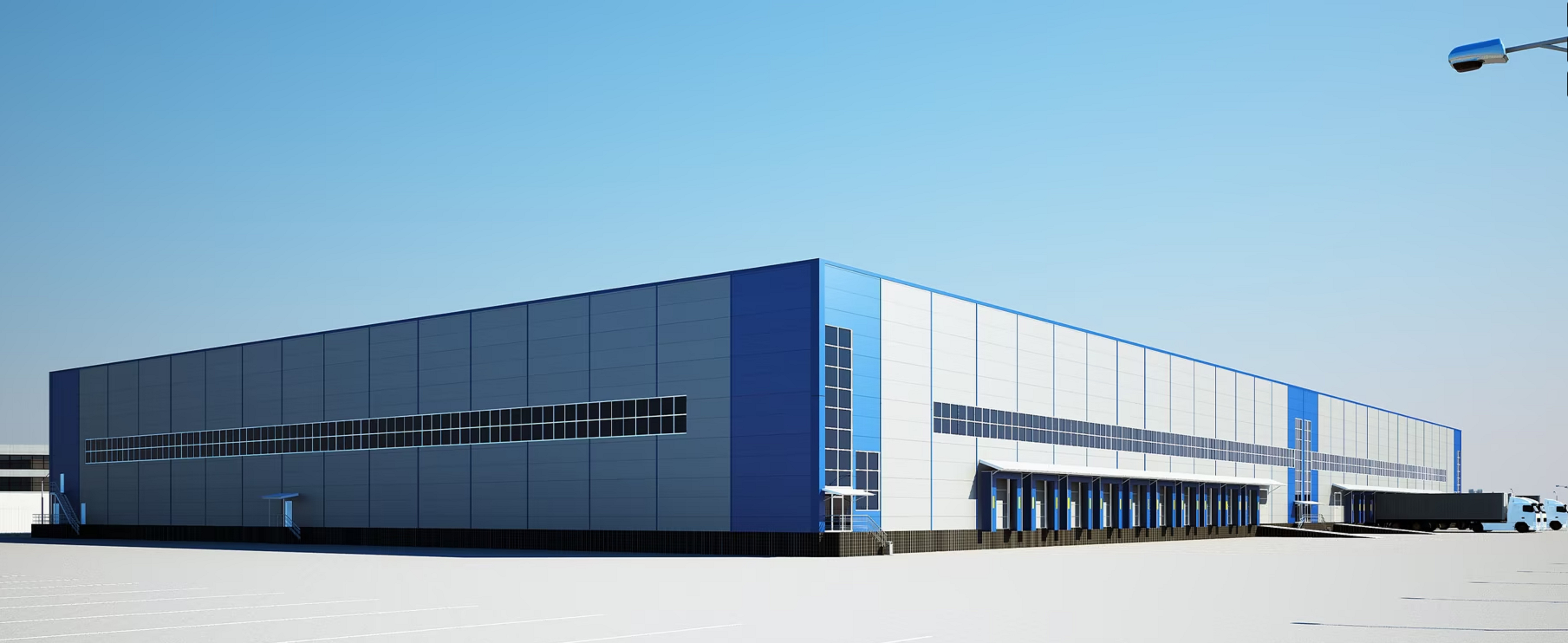

Modern Prefab Commercial Prefabricated Industrial Warehouse Building 4
Normal the goods will be shipped by use 40’ open top container and 40’ HQ container. If use 40’HQ, it need to do a steel pallet to pack the goods, then the whole pallet cargo will be pushed into container together, when you unload the goods, you wold pull the whole pallet out of the container. In this case, the ocean freight will be cheaper, but will increase the cost of pallet.
Regarding the open top containers, all the goods will be loaded one by one. In this case, the sea freight of 40’OT is higher than 40’HQ, but The steel pallet for 40’HQ need to be charged. You can tell me your prefer.


Recommend Products

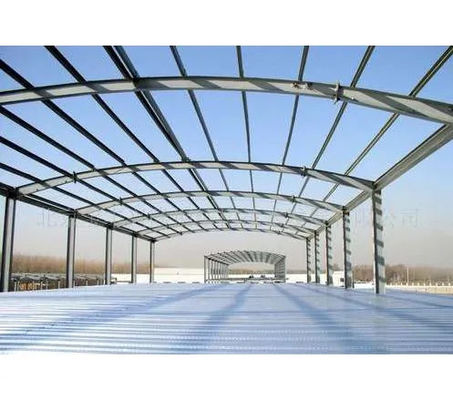

Modern Prefab Commercial Prefabricated Industrial Warehouse Building 5





1.Are you a manufacture or trading company?

- We are a comprehensive and trade enterprises. We have our own factory. You can get the best price and competitive price. And you are welcome to visit us at any time .


2)What’s the quality assurance you provided and how do you control quality ?


-Established a procedure to check products at all stages of the manufacturing process - raw materials, in process materials, validated or tested materials, finished goods, etc.


3) Do you provide installation on site overseas for steel structure buildings?


- Yes, we usually provide detailed installation drawings and installation methods for free. If you need, we can provide the service of installation, supervision and training by extra. We also can send our professional technical engineer to supervise installation on site overseas.


4)What's the quality grade of the steel structure components?

- Q345B is used for main steel structure, Q235B is used for secondary steel structure.


5).How about the derust grade?


Reply:Ball blasting Sa2.5 on main steel structure manual derust St2.0 on secondary steel structure.



Company Profile:


Established in 2014, the company is a high-tech, diversified and export-oriented large-scale international

private enterprise integrating R&D, design, production, installation and construction at home and abroad,

and technical services.


It has the qualification certificate of overseas contracted project management issued by the Ministry of

Commerce of China, CE certification [EN1090 certificate], IS09001 certificate, etc, and has long-term

cooperation with countries along the " Belt and Road".


The products and construction services have been exported to more than 50 countries around the world,

including Asia, Africa, North and South America. In addition, branches have been established in

Mozambique and Angola, which can undertake steel structure installation projects in Africa.

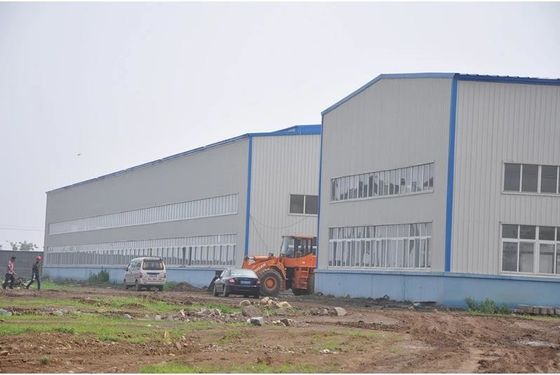

Modern Prefab Commercial Prefabricated Industrial Warehouse Building 6
