Light Gauge Steel Structure Warehouse Workshop Building Storage Customized

1000SQM
MOQ
USD 40-80 per square meter
Price
Light Gauge Steel Structure Warehouse Workshop Building Storage Customized
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: Steel Structure Warehouse
Windows: Aluminum/PVC
Roof: Slope/Flat
Grade: Q235/Q355 Carbon Steel
Durble Years: 50 Years
Surface: Painted/Galvanized
Wall: Sandwich Panel/Steel Sheet
Beam: Hot Rolled/Welded H-Section Steel
Basic Infomation
Place of Origin: China
Brand Name: QCX
Certification: ISO9001 CE
Model Number: Steel Frame Structure
Payment & Shipping Terms
Packaging Details: Steel components are packaged with steel pallets at the factory with the coding number, which is convenient for customers to unload
Delivery Time: 30~45days
Payment Terms: T/T,L/C
Supply Ability: 2000 tons per month
Product Description

Light Gauge Steel Structure Warehouse Workshop Building Storage Customized

Product Description:

Steel structure warehouse building is sturdy and durable and can withstand high winds, snow, or earthquakes. Our structural engineers design the building structure according to the local wind and snow load to ensure that the entire building can withstand the harsh external weather. Compared to concrete buildings, steel structure has many advertages, such as low cost, fast construction, and environmentally friendly. The interior layout of the metal buildings can be fully customized to meet your needs.

With our Steel Structure Warehouse, you can be sure that your project will be completed safely and securely. It is a great choice for industrial and commercial use, and is perfect for steel structure shed, structural steel building, and other large-scale projects.

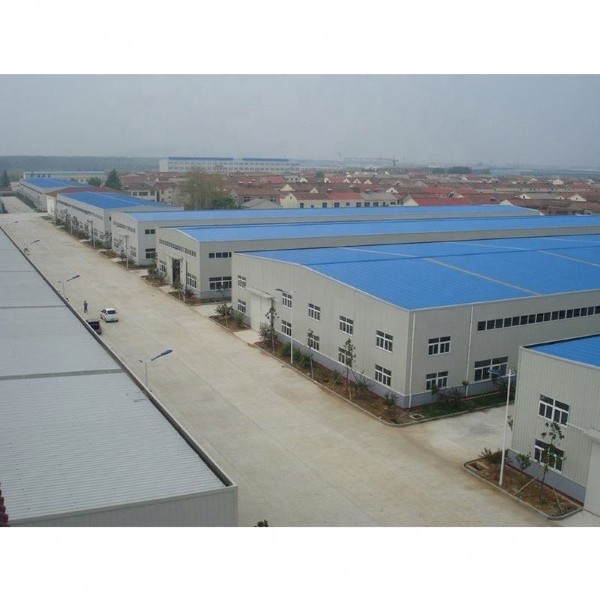

Light Gauge Steel Structure Warehouse Workshop Building Storage Customized 0

Features:

1. Light weight steel structure frame construction meet the requirements of sustainable development. The environmental protection characteristics of steel structure buildings, as well as the sound insulation, earthquake resistance, and thermal insulation performance, make the steel structure buildings meet the requirements of sustainable development.

2. Light weight steel structure frame construction can avoid collapse damage of buildings. The application of steel structure systems has good ductility, strong plastic deformation ability of steel structure, excellent seismic and wind resistance, and greatly improves the safety and reliability of residential buildings.

3. Light weight steel structure frame construction has beautiful appearance, free of secondary decoration, it is easy to transport, fast to get to and easy to disassemble, can be reused for another project.

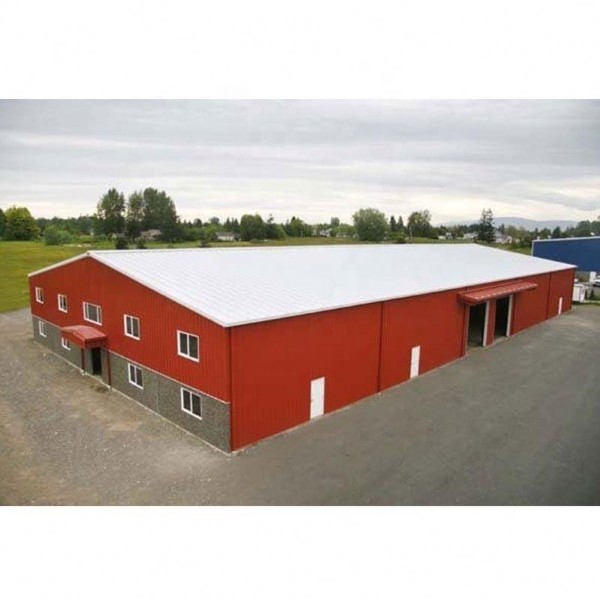

Light Gauge Steel Structure Warehouse Workshop Building Storage Customized 1

Technical Parameters:

Modern Prefab Steel Structure Building Prefabricated Warehouse/Workshop/Aircraft Hangar/Office Construction Material

Compared with the traditional concrete structure building system, the light steel structure building projects have a series of advantages, such as large span, low demands of base structure, strong seismic and wind resistance, beautiful appearance, shorter construction cycle, strong corrosion resistance, non-polluted, low maintenance costs and so on. Therefore it is more and more popular with the customers. It is mainly used for large-span structures, workshops, warehouses, office buildings, large
supermarkets, logistics warehouses, showrooms, hangar, etc.
Item Name
Modern Prefab Steel Structure Building Prefabricated Warehouse/Workshop/Aircraft Hangar/Office Construction Material
Steel Column
H shape,Box,Steel Pipe,Hot tolled sheet
Steel Beam
H shape,Box,Steel Pipe,Hot tolled sheet
Steel Bracing
Steel Rod,Steel Pipe,Angle Steel
Steel Purlin
C or Z purlins(Thickness1.8mm~3.0mm)
External Wall panels,Roof panels
Single colorful corrugate steel sheet,sandwich panels with EPS,Rock wool,PU.,Fiberglass
Steel buildings Door
Sliding Door or Rolling door
Steel buildings Windows
Aluminum alloy-Glass,Aluminum alloy-shutter
Skylighting panels
FRP T=1.5mm-1.8mm
Ventilator
Turbine ventilator on a ridge
Gutter
Galvanized steel plate,Stainless steel plate
Downspout
PVC pipe,color steelpipe Y=0.5mm
Bolt
Ordinary ,High strength bolt
Ground bolts
Steel Rod M24,M27,M30,M33,M39,M42


Applications:

QCX steel structure warehouse is the perfect solution for industrial, commercial and agricultural applications. With its excellent strength-to-weight ratio, fast assembly and durable construction, it is the ultimate choice for a prefabricated warehouse. It is the ideal choice for a steel structure shed, steel structure factory, and steel structure building. Our steel structure warehouse is certified to ISO and CE standards, comes with a minimum order quantity of 1000SQM and can be customized to suit your needs. It is designed with hot rolled/welded H-section steel beams, optional insulation and either a slope or flat roof. Windows are available in aluminum or PVC. Delivery time is between 30-45 days and payment terms are either T/T or L/C. Our supply ability is 2000Ton/Month.

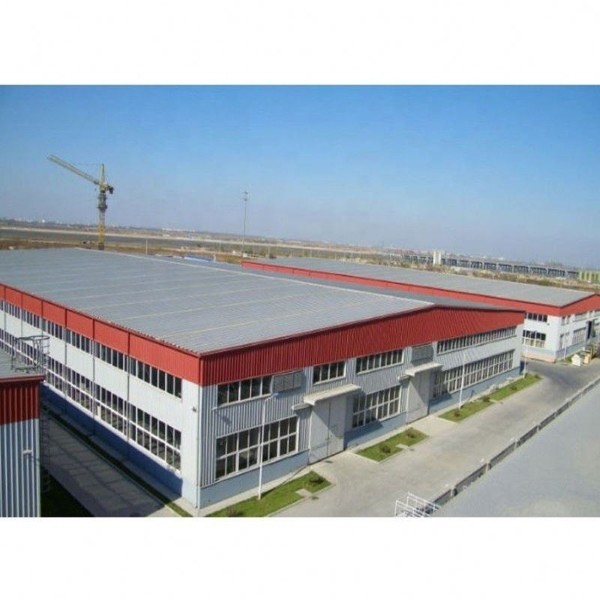

Light Gauge Steel Structure Warehouse Workshop Building Storage Customized 2

Company profile:


Qingdao Qianchengxin Construction Technology Co, Ltd. was established in 2014. lt is a high-tech, diversified and export-oriented large-scale international private enterprise integrating R&D, design, production, installation and construction at home and abroad, and technical services.

Qian Chengxin has the qualification certificate of China's overseas contracted project management issued by the Ministry of Commerce of China, CE certification [EN1090 certificatel), ISO9001 certificate, etc, and has carried out long-term cooperation with countries along the "Belt and Road". The current products and construction services have been exported to more than 50 countries around the world, including Asia, Africa, North and South America. ln addition. branches have been established in Mozambigue and Angola, which can undertake steel structure installation projects in Africa

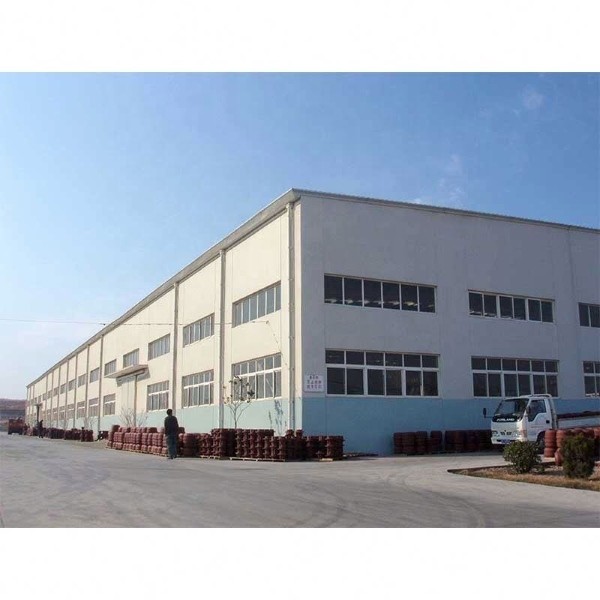

Light Gauge Steel Structure Warehouse Workshop Building Storage Customized 3

Production process:

Light Gauge Steel Structure Warehouse Workshop Building Storage Customized 4

Support and Services:

Steel Structure Warehouse Technical Support and Services

We provide comprehensive technical support and services for our steel structure warehouses. Our experienced team of professionals have the expertise to respond to any of your queries and concerns.

  • Design consultations
  • Manufacturing advice
  • Installation support
  • Maintenance advice
  • Repairs
  • Technical troubleshooting

Our team of experts are available 24/7 to help with any queries or issues you may have. We are dedicated to providing the highest quality service and support for your steel structure warehouse.



Packing and Shipping:

Packaging and Shipping of Steel Structure Warehouse:

The steel structure warehouse will be packaged in industrial grade sealed paperboard, combined with appropriate cushion material to ensure that the products are not damaged during transportation. The packaging is firm and reliable. All shipments are made in accordance with international standards.

Light Gauge Steel Structure Warehouse Workshop Building Storage Customized 5

Get the Free Price:

Please kindly inform us of the information below if you are interested in our products.
1. Project Progress: Is Land Purchased? Is it licensed by the government?
2. Usage: for warehouse, workshop, showroom, etc.
3. Location: In which country will it be built?
4. Local Climate: Wind speed, Snow load (max. Wind speed)
5. Design: Please provide the design drawing. Or do you need us to design for you?
6. Dimension: Length*width*height
7. Crane Beam: Do you need crane beam inside the steel structure?
8. Roof and Wall: determine the panel material, such as color steel panel, and metal sandwich panel.
9. Windows and Doors: what material, quantity, and type?
