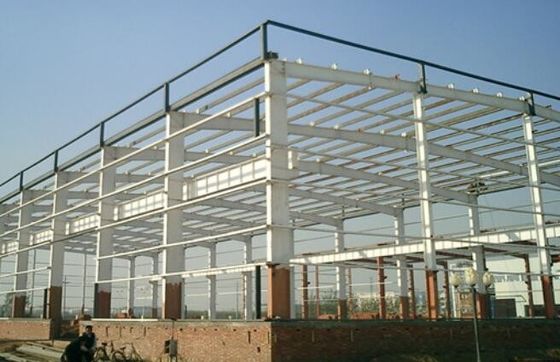

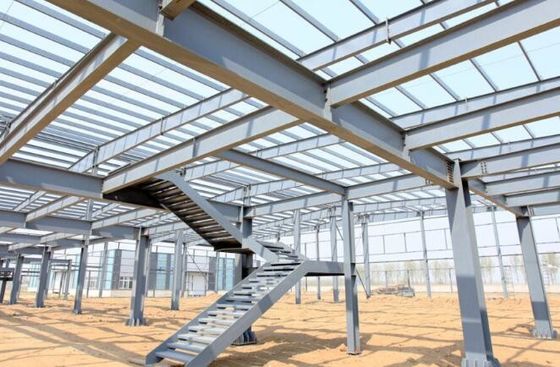

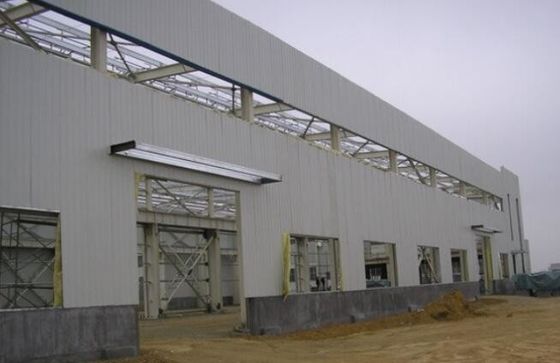

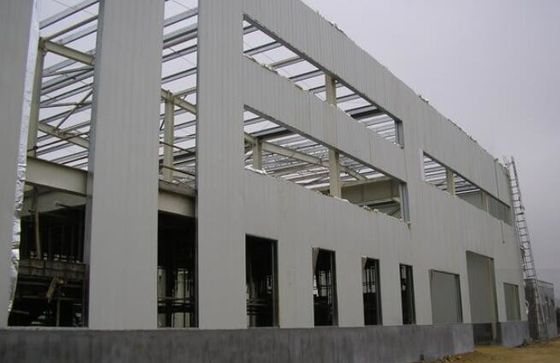

Steel Structure Warehouse is a metal warehouse built with steel construction for long-term storage of goods. It is the ideal solution to store large amounts of inventory, as it is strong and durable. The structure of the warehouse is composed of portal steel frames, while the roof and wall panels are made of C/Z-Section Steel. The windows are made of either aluminum or PVC, while insulation can be added as an optional feature. Additionally, customers can choose to include cranes according to their requirements.
This type of warehouse is the perfect choice when looking for a large, secure, and cost-effective storage solution. Steel Construction Warehouse is ideal for industrial, commercial, and agricultural applications. It offers maximum strength and durability, while also providing insulation and protection from the elements.
QCX Steel Structure Warehouse, with its CE/ ISO9001 certification, is a prefabricated warehouse building system that is designed with hot rolled/welded H-section steel, C/Z-section steel and sandwich panel/color steel sheet walls.
With its comprehensive processing service, including bending, welding, decoiling, cutting, punching, QCX Steel Structure Warehouse provides a cost-effective solution for diverse industrial warehouse applications.
| Main steel frame | Welded H section steel beam and comlumns, painted or galvanized |
| Secondary frame | Galvanized C/Z purlin , steel bracing , tie bar , knee brace , edge cover etc. |
| Roof panel | Steel color sheet |
| Wall panel | Corrugated Steel Color Sheet |
| Tie Rod | Circular Steel Tube |
| Brace | Round Bar |
| Knee Brace | Angle Steel |
| Water downpipe | PVC pipe |
| Door | Aluminium alloy shutter door |
| Windows | Aluminum alloy push-pull window |
Steel Structure Warehouse technical support and service includes:
1. Short construction period
All the components are already fabricated inside the factory, they only need to be connected together by bolts and nuts, or slightly welded, compare with traditional brick and concrete buildings, the steel prefabricated building will save at least 70% on the construction period.
2. Light weight
Compared with concrete and wood, steel structure has lighter weight and higher strength, which can greatly reduce the foundation cost. So it will show better on the seismic area.
3. Environmental protect
In line with the national sustainable development strategy, low carbon, green, environmental protection, energy-saving, etc. are the industries supported by the state
Packaging and Shipping of Steel Structure Warehouse
1. Steel components are packaged with steel pallets at the factory with the coding number, which is convenient for customers to unload; small steel structures are bundled with iron wires and hung with tags.
2. Fasteners are packed in wooden cases
3. The upper layer of the color-coated roof and wall panel is covered with plastic film, and the maintenance edge is wrapped with plastic film and labelled.
4. Container type: 40ft HC, , 20ft GP
Our company can produce more than 30 kinds of series products with different structures and specifications. It has complete processing and manufacturing equipment and strong installation capabilities. It can supply a full set of materials required for steel structure construction projects, and provide all installation services and technical consultation.
We have 2 composite board production lines with an annual output of more than 1 million meters; 5 color steel plate production lines with an annual output of 2 million meters; 2 H-beam CNC production lines with an annual output of 20,000 tons; One C-beam production line with an annual output of 2,500 tons; One Z-beam steel productions line with an annual output of 2,000 tons.
In addition to various section-steel products, it can also manufacture color steel sheets, composite panels, lighting panels, ventilators, etc.
