Building Prefab Metal Workshop Agricultural Steel Structure

5000 ㎡
MOQ
50-70usd/ ㎡
Price
Building Prefab Metal Workshop Agricultural Steel Structure
Features Gallery Product Description Request A Quote
Features
Specifications
Material: Steel
Structural Form: Grid Steel Structure
Standard: GB
Color: Customized White Grey,Blue,Red
Dimension: Customized ≥5000㎡
Warranty Period: 50 Years
Type: Warehouse
Wall: Sandwich Panel, Steel Sheet
Product Name: Engineered Prefabricated Industrial Steel Structural Frame Warehouse
Beam: Hot Rolled H-Section Steel
Brace: Round Bar
Column: Hot Rolled H-Section Steel
Downpipe: PVC Pipe
Gutter: Stainless Steel Gutter
Knee Brace: Angle Steel
Purlin: C/Z Section Steel
Roof: Single Slope, Double Slope, Multi-Slope
Size: Customized
Structure: Structure
Surface: Painted Or Hot Dip Galvanized
Tie Bar: Circular Steel Tube
High Light:

GB Prefab Metal Workshop

,

Agricultural Prefab Metal Workshop

,

Agricultural Prefab Steel Structure Building

Basic Infomation
Place of Origin: Qingdao,China
Brand Name: QCX
Certification: ISO 9001, CE certificate of quality system
Model Number: Dimension Customized
Payment & Shipping Terms
Packaging Details: PALLETS
Delivery Time: 30-60DAYS
Payment Terms: T/T, L/C
Supply Ability: 2000T/M
Product Description

Building Prefab Metal Workshop Agricultural Steel Structure



Introduction, use and advantages of steel structure:



What is steel structure's character?


1. High Strength But Light Weight
Steel has high strength and high modulus of elasticity. Compared with concrete and wood, the steel structure has a lighter weight. So it is easier to transport and install. And it is obviously better suitable for large spans, high rise, and heavy loads structure.


2. More toughness, More plasticity, Material Uniform & More reliable structure
Steel material is better to undertake impact and dynamic loads with good seismic performance. Its internal structure is uniform, close to an isotropic homogeneous body. The actual working performance conforms to the calculation theory. Therefore, the reliability of the steel structure is high.

3. High degree Installation Mechanization
Steel structural components are easy to manufacture in factory and assemble on site. The mechanized manufacture has high precision with high production efficiency. And it's fast assembled on site with quick construction time. Steel structure is the most industrialized structure.

4. Good Sealing Performance
The welded structure can be completely sealed. Therefore it support to be made into products with good air tightness and good water tightness, like the high-pressure container, the large oil sump and pressure pipes.

5. Heat-resistant But No fire-resistant
When the temperature is below 150 ºC, the steel properties almost don't change. When the temperature is between 300 ºC and 400 ºC, the steel strength and elastic modulus are significantly reduced. When the temperature is around 600 ºC, the strength of the steel tends to zero. So the steel structure surface should be protected with a heat insulation board. In the buildings required special fire protection, the steel structure must be protected with refractory materials to improve the fire resistance level.

6. Poor Corrosion Resistance
Especially in the environment of moist and corrosive media, it is easy to rust. The general steel structure should be derusted, galvanized or painted, and should be regularly maintained. For offshore platform structures in seawater, special measures such as "zinc block anode protection" are required to prevent corrosion.

7. Low carbon, Energy saving, Green and environmental, Material recycled
The demolition of steel structures hardly generates construction waste, and the steel can be recycled.


Quality Assurance China Building Material Construction Fabrication Cheap Price Steel Structure Warehouse

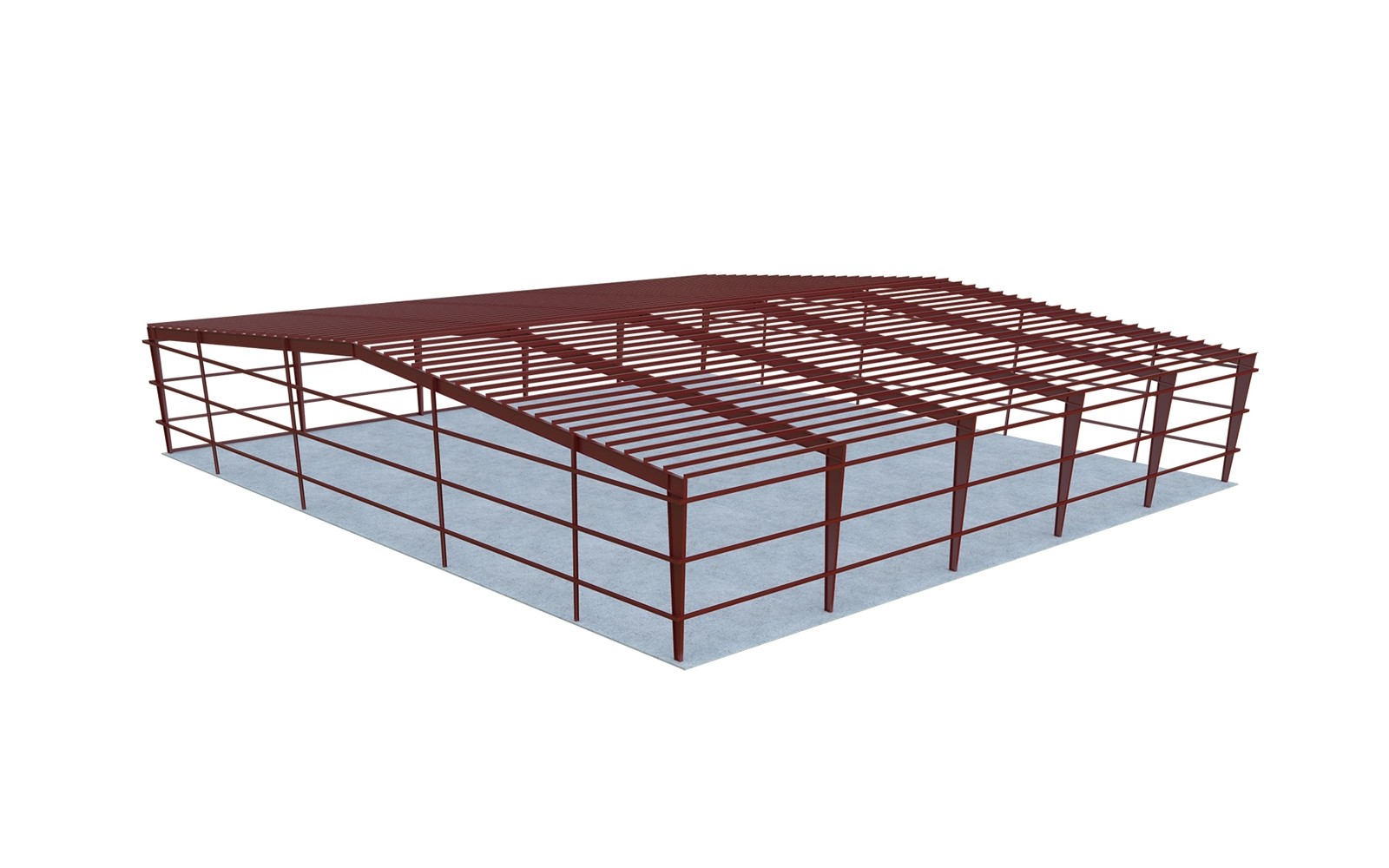

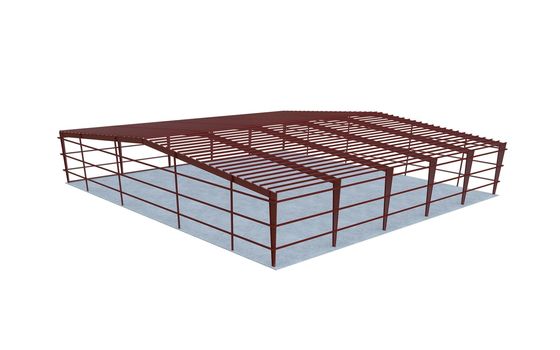

PROJECT MATERIAL LIST



Main Steel Frame Column Q235, Q355 Welded H Section Steel
  Beam Q235, Q345 Welded H Section Steel
Secondary Frame Purlin Q235 C and Z purlin
  Knee brace Q235 Angle Steel
  Tie Rod Q235 Circular Steel Pipe
  Brace Q235 Round Bar
  Vertical and Horizontal Support Q235 Angle Steel, Round Bar or Steel Pipe
Maintenance system Roof Panel Insulated Sandwich Panel (EPS /Glass Fiber /
Rock Wool / Pu) / Steel Sheet
  Wall Panel Sandwich Panel / Corrugated Steel Sheet
Accessories Window Aluminium Alloy Window / PVC Window / Sandwich Panel Window
  Door Sliding Sandwich Panel Door / Rolling Metal Door / Personal Door
  Rain-spout PVC
1. Opinions 1)We can supply all kinds of steel structures, steel building, metal building, modular house, steel frame for warehouse, workshop, garage etc, steel beams, other riveting and welding parts.
2)We can also make and develop new parts according to customers' drawings and detailed dimensions.

2. Specifications


1)Size: MOQ is 100m2, width X length X eave height, roof slope
2)Type: Single slope, double slope, muti slope; Single span, double-span, Multi-span, single floor, double floors!
3) Base: Cement and steel foundation bolts
4) Column and beam: Material Q345(S355JR)or Q235(S235JR) steel, all bolts connection! Straight cross-section or Variable cross-section!
5) Bracing: X-type or V-type or other type bracing made from angle, round pipe, etc
6) C or z purlin: Size from C120~C320, Z100~Z200
7) Roof and wall panel: Single colorfull corrugated steel sheet0.326~0.8mm thick, (1150mm wide), or sandwich panel with EPS, ROCK WOOL, PU etc insulation thickness around 50mm~100mm,
8)Accessories: Semi-transparent skylight belts, Ventilators, down pipe, Glavanized gutter, etc
9)Surface: Two lays of Anti-rust Painting!
10) Packing: Main steel frame without packing load in 40' OT, roof and wall panel load in 40' HQ!
3. Design Parameters If you need we design for you, pls supply us the following parameter together with detail size:
1)Live load on roof(KN/M2)
2)Wind speed(KM/H)
3)Snow load (KG/M2)
4)Earthquake load if have
5) Demands for doors and windows
6)Crane (if have), Crane span, crane lift height, max lift capacity, max wheel pressure and min wheel pressure!

Quality Assurance China Building Material Construction Fabrication Cheap Price Steel Structure Warehouse

FINISHED PROJECT

Quality Assurance China Building Material Construction Fabrication Cheap Price Steel Structure Warehouse
Quality Assurance China Building Material Construction Fabrication Cheap Price Steel Structure Warehouse

Quality Assurance China Building Material Construction Fabrication Cheap Price Steel Structure Warehouse



Company Profile:



Established in 2014, the company is a high-tech, diversified and export-oriented large-scale international

private enterprise integrating R&D, design, production, installation and construction at home and abroad,

and technical services.



It has the qualification certificate of overseas contracted project management issued by the Ministry of

Commerce of China, CE certification [EN1090 certificate], IS09001 certificate, etc, and has long-term

cooperation with countries along the " Belt and Road".



The products and construction services have been exported to more than 50 countries around the world,

including Asia, Africa, North and South America. In addition, branches have been established in

Mozambique and Angola, which can undertake steel structure installation projects in Africa.

Building Prefab Metal Workshop Agricultural Steel Structure 5





Products& Services:
Building Prefab Metal Workshop Agricultural Steel Structure 6



Production Capacity:

Building Prefab Metal Workshop Agricultural Steel Structure 7

Building Prefab Metal Workshop Agricultural Steel Structure 8





Qualification certificates:

Building Prefab Metal Workshop Agricultural Steel Structure 9Building Prefab Metal Workshop Agricultural Steel Structure 10Building Prefab Metal Workshop Agricultural Steel Structure 11





Philosophy& Vision:

Building Prefab Metal Workshop Agricultural Steel Structure 12



Product packaging:



1. Steel components are packaged with steel pallets at the factory with the coding number, which is convenient for customers to unload; small steel structures are bundled with iron wires and hung with tags.


2. Fasteners are packed in wooden cases


3. The upper layer of the color-coated roof and wall panel is covered with plastic film, and the maintenance edge is wrapped with plastic film and labelled.


4. Container type: 40ft HC, 20ft GP









New design steel structure factory/warehouse

Related Product

Our prefabricated steel structure buildings are pre-cut, pre-drilled, and ready for quick and efficient assembly. Steel buildings work for virtually any building application:Agricultural/ Barns/ Aircraft Hangars/ Welding Shops/ Commercial center/ Garages/ Storage/ Suburban Buildings/ Warehouses/ Workshops etc.





New design steel structure factory/warehouse

Our Advantages:

1,Professional and efficient designer teams

2,Collectivize and largescale production

3,Professional and efficient installation of the construction

4,International quality control system

Our Services

1>. Professional
Our campany was founded in 2007. Since then, we have been a professional manufacturer of steel structure building,container house,prefabricated house ,sandwich panel and color steel sheet with ISO9001 certification.

2>. Quality Management
Quality control and stability: Applied with high quality, each product is produced under strict quality control at every manufacturing process from raw materials to final testing which ensures our products come with perfect performance.

3>. Excellent after-sales service
Our customer service team Offers you Pre-sales and after-sales service.

4>. OEM/ODM available:
1). Customized design;
2). Customized dimension;
3). Customized brand package.





FAQ



1.Are you a manufacture or trading company?


- We are a comprehensive and trade enterprises. We have our own factory. You can get the best price and competitive price. And you are welcome to visit us at any time .



2)What’s the quality assurance you provided and how do you control quality ?



-Established a procedure to check products at all stages of the manufacturing process - raw materials, in process materials, validated or tested materials, finished goods, etc.



3) Do you provide installation on site overseas for steel structure buildings?



- Yes, we usually provide detailed installation drawings and installation methods for free. If you need, we can provide the service of installation, supervision and training by extra. We also can send our professional technical engineer to supervise installation on site overseas.



4)What's the quality grade of the steel structure components?


- Q345B is used for main steel structure, Q235B is used for secondary steel structure.



5).How about the derust grade?



Reply:Ball blasting Sa2.5 on main steel structure manual derust St2.0 on secondary steel structure.
