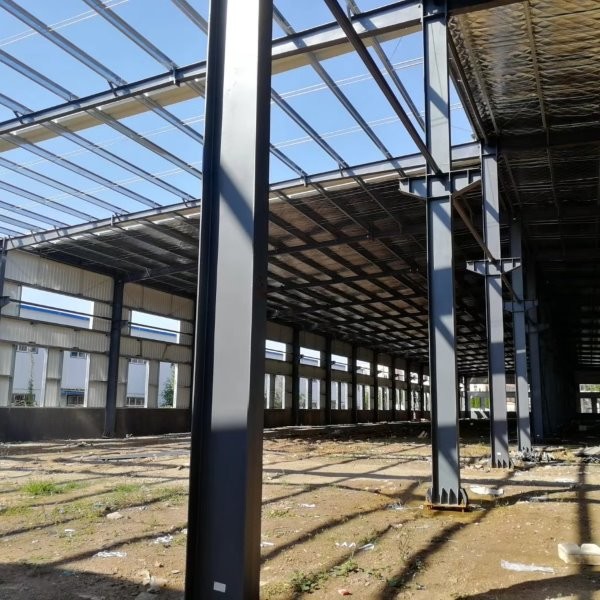

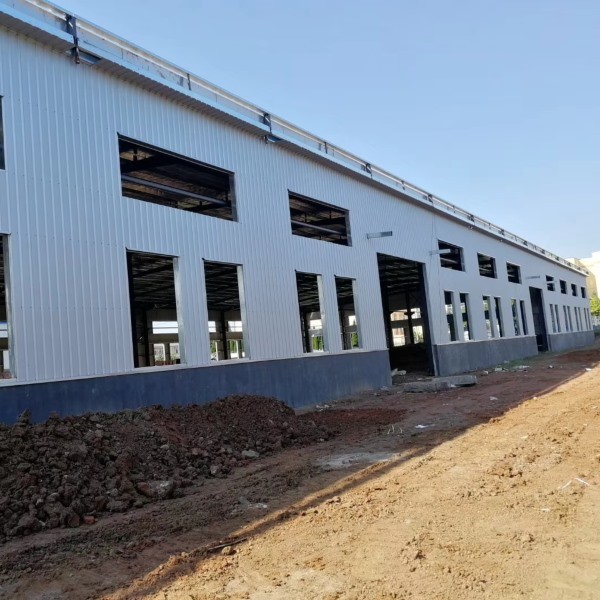

Custom Steel Structure Shed Fabrication Warehouse For Construction Building
Introduction, use and advantages of steel structure:
What is steel structure's character?
1. High Strength But Light Weight
Steel has high strength and high modulus of elasticity. Compared with concrete and wood, the steel structure has a lighter weight. So it is easier to transport and install. And it is obviously better suitable for large spans, high rise, and heavy loads structure.
2. More toughness, More plasticity, Material Uniform & More reliable structure
Steel material is better to undertake impact and dynamic loads with good seismic performance. Its internal structure is uniform, close to an isotropic homogeneous body. The actual working performance conforms to the calculation theory. Therefore, the reliability of the steel structure is high.
3. High degree Installation Mechanization
Steel structural components are easy to manufacture in factory and assemble on site. The mechanized manufacture has high precision with high production efficiency. And it's fast assembled on site with quick construction time. Steel structure is the most industrialized structure.
4. Good Sealing Performance
The welded structure can be completely sealed. Therefore it support to be made into products with good air tightness and good water tightness, like the high-pressure container, the large oil sump and pressure pipes.
5. Heat-resistant But No fire-resistant
When the temperature is below 150 ºC, the steel properties almost don't change. When the temperature is between 300 ºC and 400 ºC, the steel strength and elastic modulus are significantly reduced. When the temperature is around 600 ºC, the strength of the steel tends to zero. So the steel structure surface should be protected with a heat insulation board. In the buildings required special fire protection, the steel structure must be protected with refractory materials to improve the fire resistance level.
6. Poor Corrosion Resistance
Especially in the environment of moist and corrosive media, it is easy to rust. The general steel structure should be derusted, galvanized or painted, and should be regularly maintained. For offshore platform structures in seawater, special measures such as "zinc block anode protection" are required to prevent corrosion.
7. Low carbon, Energy saving, Green and environmental, Material recycled
The demolition of steel structures hardly generates construction waste, and the steel can be recycled.
PROJECT MATERIAL LIST
| Main Steel Frame | Column | Q235, Q355 Welded H Section Steel |
| Beam | Q235, Q345 Welded H Section Steel | |
| Secondary Frame | Purlin | Q235 C and Z purlin |
| Knee brace | Q235 Angle Steel | |
| Tie Rod | Q235 Circular Steel Pipe | |
| Brace | Q235 Round Bar | |
| Vertical and Horizontal Support | Q235 Angle Steel, Round Bar or Steel Pipe | |
| Maintenance system | Roof Panel | Insulated Sandwich Panel (EPS /Glass Fiber / Rock Wool / Pu) / Steel Sheet |
| Wall Panel | Sandwich Panel / Corrugated Steel Sheet | |
| Accessories | Window | Aluminium Alloy Window / PVC Window / Sandwich Panel Window |
| Door | Sliding Sandwich Panel Door / Rolling Metal Door / Personal Door | |
| Rain-spout | PVC |
| 1. Opinions | 1)We can supply all kinds of steel structures, steel building, metal building, modular house, steel frame for warehouse, workshop, garage etc, steel beams, other riveting and welding parts. |
| 2)We can also make and develop new parts according to customers' drawings and detailed dimensions. | |
2. Specifications |
1)Size: MOQ is 100m2, width X length X eave height, roof slope |
| 2)Type: Single slope, double slope, muti slope; Single span, double-span, Multi-span, single floor, double floors! | |
| 3) Base: Cement and steel foundation bolts | |
| 4) Column and beam: Material Q345(S355JR)or Q235(S235JR) steel, all bolts connection! Straight cross-section or Variable cross-section! | |
| 5) Bracing: X-type or V-type or other type bracing made from angle, round pipe, etc | |
| 6) C or z purlin: Size from C120~C320, Z100~Z200 | |
| 7) Roof and wall panel: Single colorfull corrugated steel sheet0.326~0.8mm thick, (1150mm wide), or sandwich panel with EPS, ROCK WOOL, PU etc insulation thickness around 50mm~100mm, | |
| 8)Accessories: Semi-transparent skylight belts, Ventilators, down pipe, Glavanized gutter, etc | |
| 9)Surface: Two lays of Anti-rust Painting! | |
| 10) Packing: Main steel frame without packing load in 40' OT, roof and wall panel load in 40' HQ! | |
| 3. Design Parameters | If you need we design for you, pls supply us the following parameter together with detail size: |
| 1)Live load on roof(KN/M2) | |
| 2)Wind speed(KM/H) | |
| 3)Snow load (KG/M2) | |
| 4)Earthquake load if have 5) Demands for doors and windows |
|
| 6)Crane (if have), Crane span, crane lift height, max lift capacity, max wheel pressure and min wheel pressure! |
FINISHED PROJECT
FAQ
