Prefab Long Span Steel Frame Warehouse Industrial With Customized Design

1000SQM
MOQ
USD 30-50 per square meter
Price
Prefab Long Span Steel Frame Warehouse Industrial With Customized Design
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: Steel Structure Warehouse
Windows: Aluminum/PVC
Roof: Slope/Flat
Grade: Q235/Q355 Carbon Steel
Durble Years: 50 Years
Surface: Painted/Galvanized
Wall: Sandwich Panel/Steel Sheet
Beam: Hot Rolled/Welded H-Section Steel
High Light:

Long Span Steel Frame Warehouse

,

Customized Prefab Steel Frame Warehouse

,

Q355 Carbon Steel Frame Warehouse

Basic Infomation
Place of Origin: China
Brand Name: QCX
Certification: ISO9001 CE
Model Number: Steel Frame Structure
Payment & Shipping Terms
Packaging Details: Steel components are packaged with steel pallets at the factory with the coding number, which is convenient for customers to unload
Delivery Time: 30~45days
Payment Terms: T/T,L/C
Supply Ability: 2000 tons per month
Product Description

Product Description:

Steel Structure Warehouse is a highly efficient and cost-effective metal warehouse building system that provides a secure and durable storage solution for many applications. Our warehouses are made of high-quality galvanized steel or painted steel, with customized sizes and optional insulation, making them perfect for any business or personal storage needs. The walls are made of steel sandwich panel or color steel sheet, making them strong, stable, and reliable. Our metal warehouses provide a secure and safe storage environment, and are an ideal solution for a wide range of storage needs, including warehouses, storage facilities, industrial workshops, and more. In addition, they are easy to install and maintain, making them the perfect choice for any business or individual looking for a high-quality and cost-effective storage solution.


With our Steel Structure Warehouse, you can be sure that your project will be completed safely and securely. It is a great choice for industrial and commercial use, and is perfect for steel structure shed, structural steel building, and other large-scale projects.

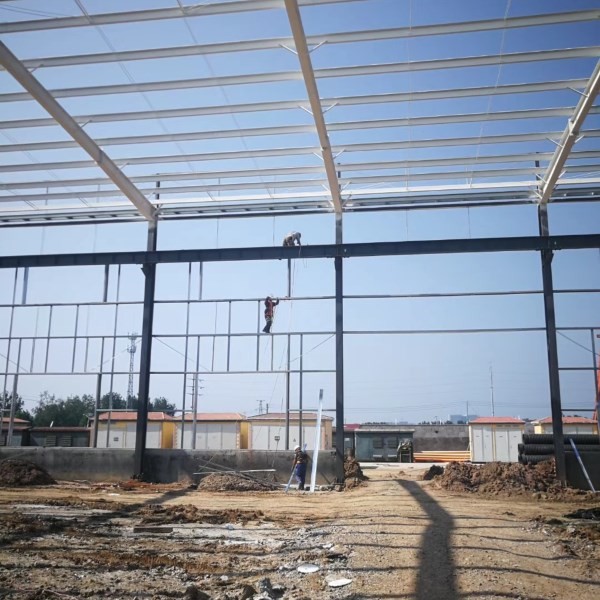

Prefab Long Span Steel Frame Warehouse Industrial With Customized Design 0

Features:

1. The strength of Steel Frame Buildings is higher than traditional brick and concrete structures. Steel structure buildings are also much stronger than a traditional wood structures. So, it can build more structures higher than traditional building materials.

2. Steel Frame Buildings perform better earthquake resistance than traditional building materials such as brick concrete structures and wood structures. Because it has better flexibility. So, if want to build a high-level building, using a steel structure build is a good idea because it can resist earthquakes.

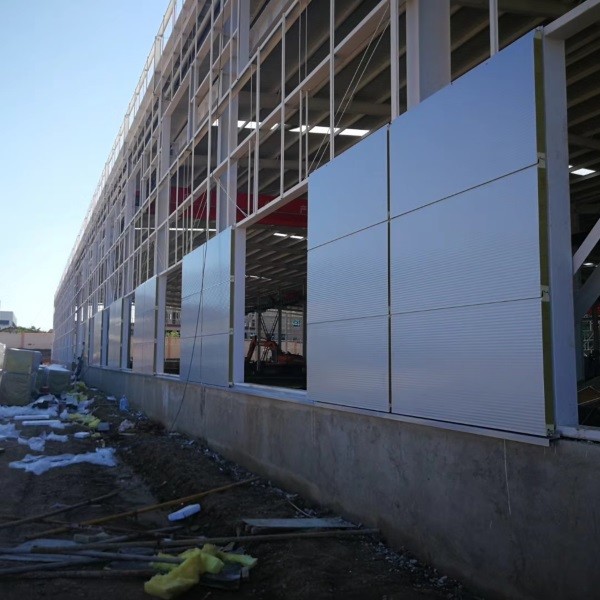

3. Steel metal building are easily customizable in their appearance and can be designed to fit a certain local or a specific company brand. From eaves to massive garage doors to skylights, we can make sure that your building has the look pictured in your head.  Prefab Long Span Steel Frame Warehouse Industrial With Customized Design 1

Technical Parameters:

Modern Prefab Steel Structure Building Prefabricated Warehouse/Workshop/Aircraft Hangar/Office Construction Material

Compared with the traditional concrete structure building system, the light steel structure building projects have a series of advantages, such as large span, low demands of base structure, strong seismic and wind resistance, beautiful appearance, shorter construction cycle, strong corrosion resistance, non-polluted, low maintenance costs and so on. Therefore it is more and more popular with the customers. It is mainly used for large-span structures, workshops, warehouses, office buildings, large
supermarkets, logistics warehouses, showrooms, hangar, etc.
Item Name
Modern Prefab Steel Structure Building Prefabricated Warehouse/Workshop/Aircraft Hangar/Office Construction Material
Steel Column
H shape,Box,Steel Pipe,Hot tolled sheet
Steel Beam
H shape,Box,Steel Pipe,Hot tolled sheet
Steel Bracing
Steel Rod,Steel Pipe,Angle Steel
Steel Purlin
C or Z purlins(Thickness1.8mm~3.0mm)
External Wall panels,Roof panels
Single colorful corrugate steel sheet,sandwich panels with EPS,Rock wool,PU.,Fiberglass
Steel buildings Door
Sliding Door or Rolling door
Steel buildings Windows
Aluminum alloy-Glass,Aluminum alloy-shutter
Skylighting panels
FRP T=1.5mm-1.8mm
Ventilator
Turbine ventilator on a ridge
Gutter
Galvanized steel plate,Stainless steel plate
Downspout
PVC pipe,color steelpipe Y=0.5mm
Bolt
Ordinary ,High strength bolt
Ground bolts
Steel Rod M24,M27,M30,M33,M39,M42


Applications:

The steel structure buildings has been widely used in various situation, such as steel storage warehouse, workshops, conference halls, large shopping malls, exhibition halls, hangar, plant, stadiums and other large public event buildings. It has many advantages as far as the sustainable development is concerned in the modern industry.

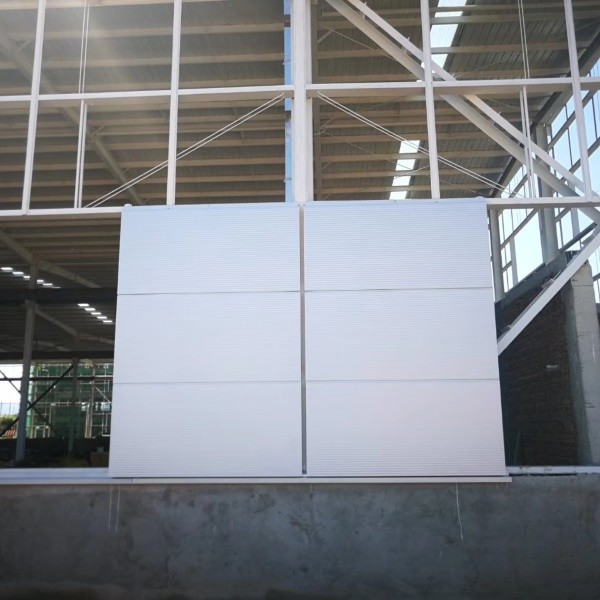

Prefab Long Span Steel Frame Warehouse Industrial With Customized Design 2



Company profile:


Qingdao Qianchengxin Construction Technology Co, Ltd. was established in 2014. lt is a high-tech, diversified and export-oriented large-scale international private enterprise integrating R&D, design, production, installation and construction at home and abroad, and technical services.

Qian Chengxin has the qualification certificate of China's overseas contracted project management issued by the Ministry of Commerce of China, CE certification [EN1090 certificatel), ISO9001 certificate, etc, and has carried out long-term cooperation with countries along the "Belt and Road". The current products and construction services have been exported to more than 50 countries around the world, including Asia, Africa, North and South America. ln addition. branches have been established in Mozambigue and Angola, which can undertake steel structure installation projects in Africa

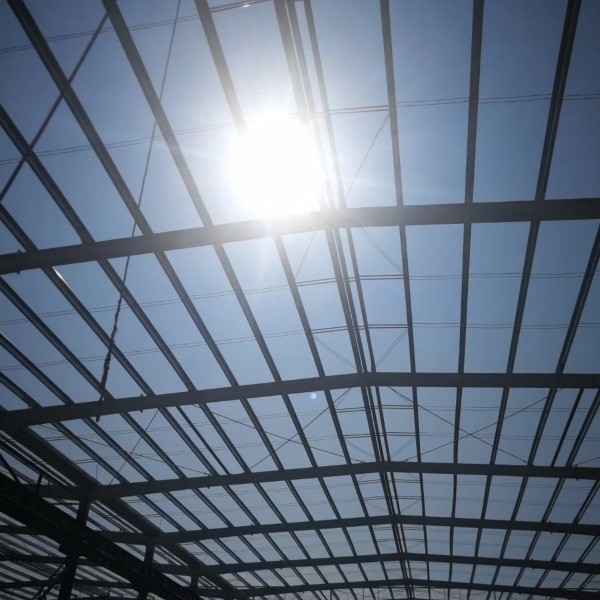

Prefab Long Span Steel Frame Warehouse Industrial With Customized Design 3

Production process:

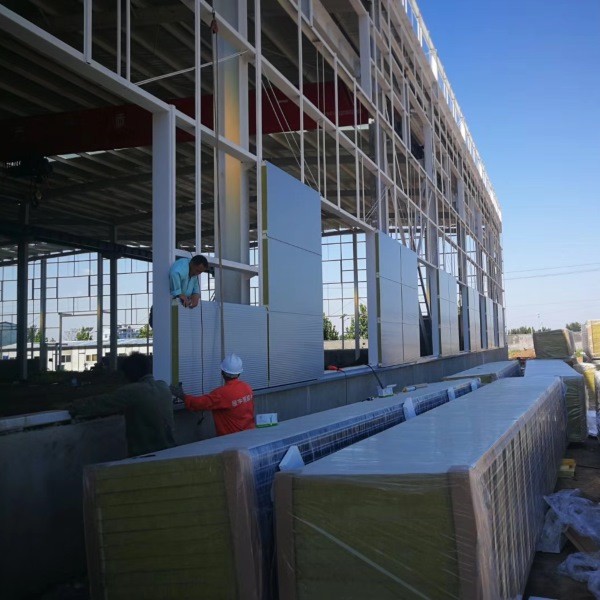

Prefab Long Span Steel Frame Warehouse Industrial With Customized Design 4

Support and Services:

Steel Structure Warehouse Technical Support and Services

Our technical support and services for Steel Structure Warehouse include the following:

  • Provide professional technical advice on product selection, design, installation, and after-sales service.
  • Provide remote technical support via telephone, email or video.
  • Provide on-site installation guidance and technical service.
  • Provide product maintenance services.
  • Provide warranty services.


Packing and Shipping:

Packaging Details

1. Steel structure components will be in nude packaging with proper protection.
2. Sandwich panels will be packed with plastic film.
3. Doors and windows will be packed with bubble plastic.
4. Bolts and other accessories will be packed in wood boxes.

Normally is 40'HQ and 40'OT container. If you have specifical requirements,40GP and 20GP container are ok

Our technical team will do the economical packing plan for clients, calculate the quantity of steel structure materials accurately and use the min. quantity of containers, to save the shipping freight for clients.

When packing we use the pallets according to container's size, to improve the loading unloading efficency.

Prefab Long Span Steel Frame Warehouse Industrial With Customized Design 5

FAQ:


Q1: You are manufacture factory or trading company?
A: We are direct manufacture for steel structure buildings. we have rich experiance of steel structure designing,manufacturing, processing and installation.
Q2: Is your price competitive with other companies?
A: Our business goal is to give you the best price with same quality and best quality with the same price. We will try our best to reduce your cost.
Q3: Do you offer service for installation?
A: We will give detailed installation drawings and video for free. And if you need, we could send engineers as installation director even a team.
Q4: Do you accept container loading inspection?
A: You are welcomed to send an inspector, not only for the container loading, but any time during the production time.
Q5: Do you offer designing service for us?
A: Yes, we have experienced design team,and we can design full solution drawings as your requirements.
Q6: What is the delivery time?
A: Delivery time depends on order quantities. Generally, the delivery time will be 30 days after receiving deposit.
Q7: How can you get a quotation for your projects?
A: You can chat with us anytime or you can just fill out our questionnaire and send back to us. We will give you the best quotation asap.
