Portal Frame Steel Structure Warehouse For Storage With H Section Steel

500SQM
MOQ
$30~$65 per sqm
Price
Portal Frame Steel Structure Warehouse For Storage With H Section Steel
Features Gallery Product Description Request A Quote
Features
Specifications
Column: Hot Rolled/Welded H-Section Steel
Structure: Portal Steel Structure
Windows: Aluminum/PVC
Drawing Design: AutoCAD /PKPM /3D3S/TEKLA
Processing Service: Bending, Welding, Decoiling, Cutting, Punching
Wall: Sandwich Panel/Color Steel Sheet
Doors: Roller Shutter/Swing/Sliding
Purlin: C/Z-Section Steel
High Light:

Portal Frame Prefab Steel Structure

,

Storage Q355B Steel Structure Warehouse

,

H Section Steel Frame Construction

Basic Infomation
Place of Origin: China
Brand Name: QCX
Certification: CE/ ISO9001
Model Number: Steel structure warehouse
Payment & Shipping Terms
Packaging Details: According to packinglist
Delivery Time: 30~45 days
Payment Terms: T/T,L/C
Supply Ability: 2000Tons/Month
Product Description

Product Description:

Steel structure building is formed by the main framework through linking up the H beam, C purline, Z purline steel components. Roof and wall using a variety of panels together with other components such as windows and doors. The steel building has the advantages of wide span, high strength, light weight, low cost, temperature protection, save energy, beautiful appearance, short construction time, good effect of insulation, long using life, space-efficient, good seismic performance, flexible layout, etc.



Whether you’re looking for a Steel Storage Warehouse or Steel Building Warehouse, our Steel Structure Warehouse is an excellent choice. It provides plenty of space for storage and is built to last. Plus, its strong steel construction ensures that your valuables are kept safe and secure.

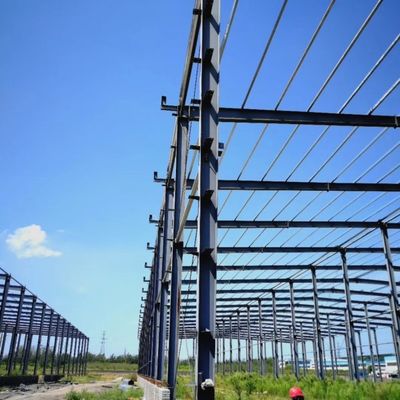

Portal Frame Steel Structure Warehouse For Storage With H Section Steel 0

Features:


1. Easy to assemble

The steel components arriving at the construction site are all prefabricated. During the construction process, the installation work needs to layout each structure and erect it according to the installation drawing.

2. Reasonable cost

The steel structure building is light in weight, reducing the basic cost, and the construction speed is fast. It can be completed and put into production as soon as possible. The overall economic benefits are much better than that of the concrete structure

3. Simple construction, short construction period

The production and installation of steel structure usually involve processing all required components in the factory and then transporting to the construction site to assemble. So the construction period is greatly shortened.

4. Energy-saving and environmentally friendly

The corrugated color steel sheet and sandwich panels used in the prefab steel structure warehouse are all energy-saving materials. The steel structure also adopts dry construction during the construction process to avoid dust and environmental pollution caused by concrete construction

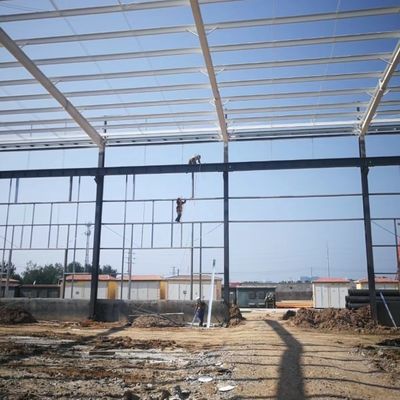

Portal Frame Steel Structure Warehouse For Storage With H Section Steel 1

Technical Parameters:

Property Description
Structure Portal Steel Structure
Insulation Optional
Windows Aluminum/PVC
Surface Painted/Galvanized
Purlin C/Z-Section Steel
Type Warehouse
Roof Slope/Flat
Wall Sandwich Panel/Color Steel Sheet
Processing Service Bending, Welding, Decoiling, Cutting, Punching
Drawing design AutoCAD /PKPM /3D3S/TEKLA


Applications:

QCX is renowned for its reliable and durable steel structure warehouses. The steel structures can be used for storing a huge variety of goods, from small items to large products. With its superior quality steel construction, it has become a popular choice for warehouses, workshops, and storage sheds. It has been certified by CE/ISO9001 and meets the highest standards of safety and quality. The minimum order quantity of the steel structure warehouse is 500 SQM and the price ranges from $30 to $65 per sqm. The delivery time is usually within 30-45 days and payment terms are T/T and L/C. The supply ability of our steel structure warehouses is 2000Tons/Month. Our warehouses are available in a wide variety of types, including steel storage warehouses, steel building warehouses, steel structure sheds, prefabricated warehouses, and steel structure warehouses. Insulation is also an optional feature. The walls are made of sandwich panel and steel sheets, while the windows are made of aluminum and PVC. The beams are constructed using hot rolled and welded H-section steel for superior strength and stability. Our steel structure warehouses are ideal for large-scale storage and are reliable, cost-effective, and low-maintenance.

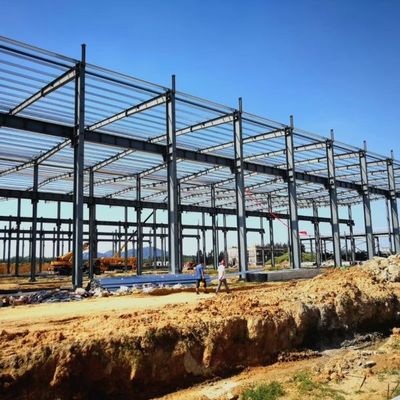

Portal Frame Steel Structure Warehouse For Storage With H Section Steel 2

Company profile:

Qingdao Qianchengxin Construction Technology Co, Ltd. was established in 2014. lt is a high-tech, diversified and export-oriented large-scale international private enterprise integrating R&D, design, production, installation and construction at home and abroad, and technical services.

Qian Chengxin has the qualification certificate of China's overseas contracted project management issued by the Ministry of Commerce of China, CE certification [EN1090 certificatel), ISO9001 certificate, etc, and has carried out long-term cooperation with countries along the "Belt and Road". The current products and construction services have been exported to more than 50 countries around the world, including Asia, Africa, North and South America. ln addition. branches have been established in Mozambigue and Angola, which can undertake steel structure installation projects in Africa

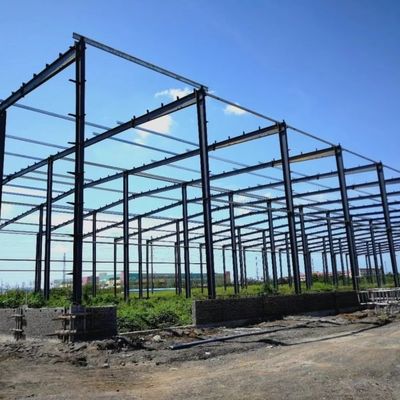

Portal Frame Steel Structure Warehouse For Storage With H Section Steel 3


Production process:

Portal Frame Steel Structure Warehouse For Storage With H Section Steel 4

Qualification certificates:

Portal Frame Steel Structure Warehouse For Storage With H Section Steel 5

Support and Services:

Technical Support and Service for Steel Structure Warehouse

We provide technical support and services for our Steel Structure Warehouse products. Our services include:

  • Design and engineering services for steel structure warehouses
  • Installation and maintenance services for steel structure warehouses
  • Inspection services for steel structure warehouses
  • Repair services for steel structure warehouses

Packing and Shipping:

Our technical team will do the economical packing plan for clients, calculate the quantity of steel structure materials accurately and use the min. quantity of containers, to save the shipping freight for clients.

When packing we use the pallets according to container's size, to improve the loading unloading efficency.
Portal Frame Steel Structure Warehouse For Storage With H Section Steel 6

Get the Free Price:

Please kindly inform us of the information below if you are interested in our products.
1. Project Progress: Is Land Purchased? Is it licensed by the government?
2. Usage: for warehouse, workshop, showroom, etc.
3. Location: In which country will it be built?
4. Local Climate: Wind speed, Snow load (max. Wind speed)
5. Design: Please provide the design drawing. Or do you need us to design for you?
6. Dimension: Length*width*height
7. Crane Beam: Do you need crane beam inside the steel structure?
8. Roof and Wall: determine the panel material, such as color steel panel, and metal sandwich panel.
9. Windows and Doors: what material, quantity, and type?
