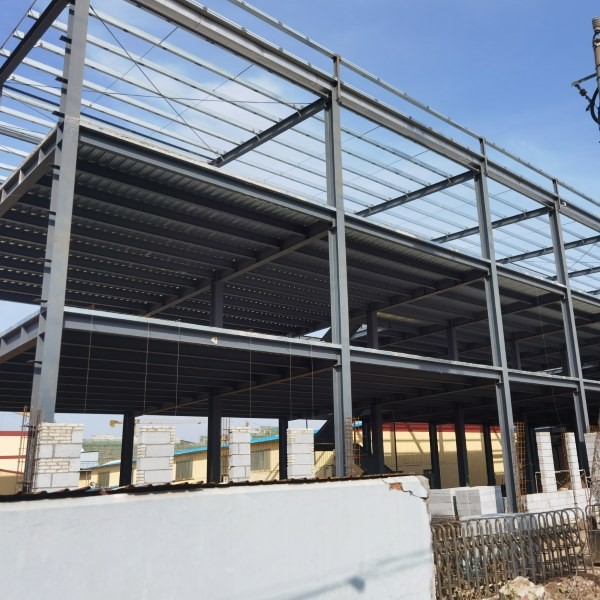

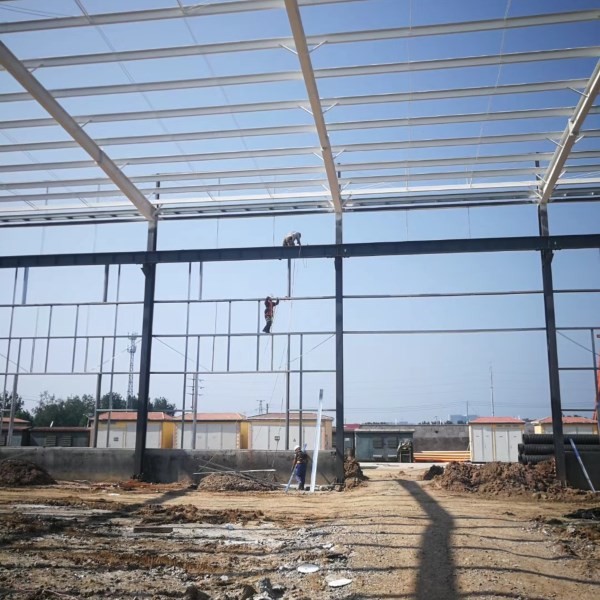

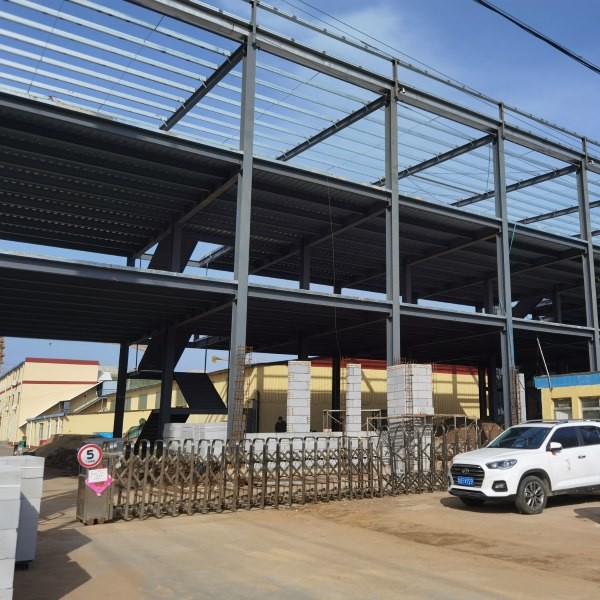

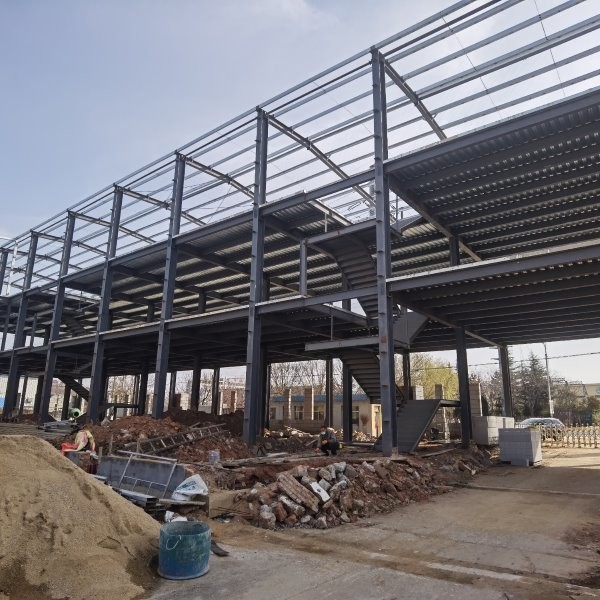

Steel structure building is made from welding H section steel as column and beam, some of them has crane beam, it's made from H steel beam too.Galvanized C ,Z section steel as wall purlin and roof purlin, Its wall and roof are made of metal steel sheet or sandwich panel. The door is electric shutter door or flat open door. Window is pvc or aluminum window. With the extensiveuse of steel structure,its advantages are increasingly significant compared with traditional building.
Steel structure building has the advantages of light weight, high strength, good toughness, recyclability, good wind and earthquake resistance, and is suitable for industrial buildings such as factory buildings, warehouses, and workshops.
1. Easy to assemble
The steel components arriving at the construction site are all prefabricated. During the construction process, the installation work needs to layout each structure and erect it according to the installation drawing.
2. Reasonable cost
The steel structure building is light in weight, reducing the basic cost, and the construction speed is fast. It can be completed and put into production as soon as possible. The overall economic benefits are much better than that of the concrete structure
3. Simple construction, short construction period
The production and installation of steel structure usually involve processing all required components in the factory and then transporting to the construction site to assemble. So the construction period is greatly shortened.
4. Energy-saving and environmentally friendly
The corrugated color steel sheet and sandwich panels used in the prefab steel structure workshop are all energy-saving materials. The steel structure also adopts dry construction during the construction process to avoid dust and environmental pollution caused by concrete construction
| Parameter | Specification |
|---|---|
| Purlin | C/Z-Section Steel |
| Surface | Painted/Galvanized |
| Insulation | Optional |
| Column | Hot Rolled/Welded H-Section Steel |
| Wall | Sandwich Panel/Steel Sheet |
| Crane | According To Customer Requirements |
| Size | Customized |
| Structure | Portal Steel Structure |
| Windows | Aluminum/PVC |
| Beam | Hot Rolled/Welded H-Section Steel |
The steel structure buildings has been widely used in various situation, such as steel storage warehouse, workshops, conference halls, large shopping malls, exhibition halls, hangar, plant, stadiums and other large public event buildings. It has many advantages as far as the sustainable development is concerned in the modern industry.
Company profile:
Qingdao Qianchengxin Construction Technology Co, Ltd. was established in 2014. lt is a high-tech, diversified and export-oriented large-scale international private enterprise integrating R&D, design, production, installation and construction at home and abroad, and technical services.
Qian Chengxin has the qualification certificate of China's overseas contracted project management issued by the Ministry of Commerce of China, CE certification [EN1090 certificatel), ISO9001 certificate, etc, and has carried out long-term cooperation with countries along the "Belt and Road". The current products and construction services have been exported to more than 50 countries around the world, including Asia, Africa, North and South America. ln addition. branches have been established in Mozambigue and Angola, which can undertake steel structure installation projects in Africa
Qualification certificates:
Packaging Details
1. Steel structure components will be in nude packaging with proper protection.
2. Sandwich panels will be packed with plastic film.
3. Doors and windows will be packed with bubble plastic.
4. Bolts and other accessories will be packed in wood boxes.
Normally is 40'HQ and 40'OT container. If you have specifical requirements,40GP and 20GP container are ok
Our technical team will do the economical packing plan for clients, calculate the quantity of steel structure materials accurately and use the min. quantity of containers, to save the shipping freight for clients.
When packing we use the pallets according to container's size, to improve the loading unloading efficency.
Get the Free Price
Please kindly inform us of the information below if you are interested in our products.
1. Project Progress: Is Land Purchased? Is it licensed by the government?
2. Usage: for warehouse, workshop, showroom, etc.
3. Location: In which country will it be built?
4. Local Climate: Wind speed, Snow load (max. Wind speed)
5. Design: Please provide the design drawing. Or do you need us to design for you?
6. Dimension: Length*width*height
7. Crane Beam: Do you need crane beam inside the steel structure?
8. Roof and Wall: determine the panel material, such as color steel panel, and metal sandwich panel.
9. Windows and Doors: what material, quantity, and type?
